RY 70113 - Ryobi Shaft Trimmer Handle / Trimmer Head Assembly Parts Diagram

Shaft Trimmer

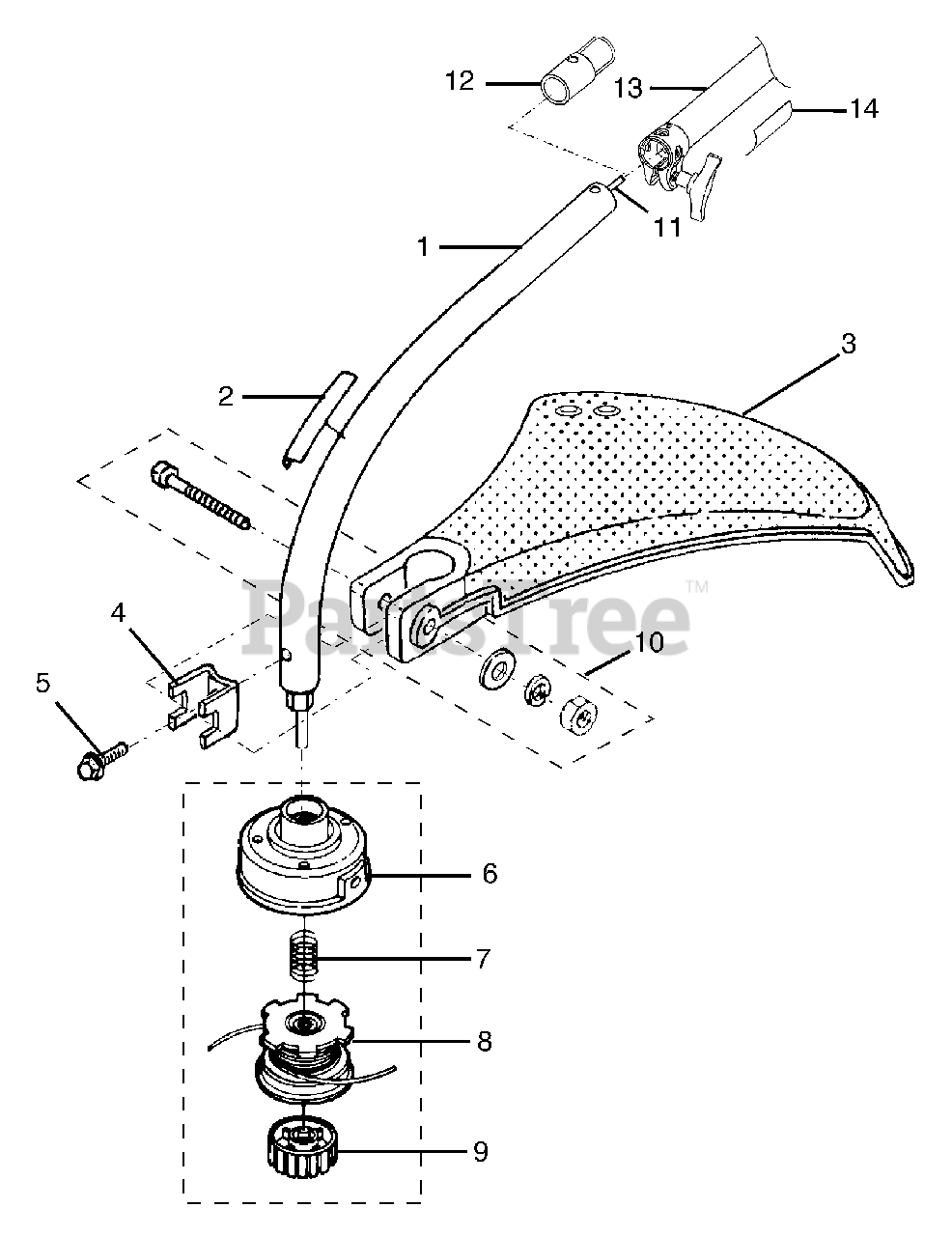

Handle / Trimmer Head Assembly Parts Diagram

  • Title

1

Homelite 984616001

LOWER DRV. SHAFT HOUSING & DECAL
(Superseded to 308038001)

$19.99

$

Usually ships in 3-7 days

0

2

Homelite PS06336

BOOM DECAL (WARNING)

$

$

Not available

3

Homelite PA01014

GRASS DEFLECTOR
(Superseded to T308744001)

$

$

Not available

4

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

5

Homelite 983823001

SCREW
(Superseded to 660647001)

$1.49

$

In Stock, only 2 left!

0

6

Homelite A98231A

HOUSING AND EYELETS
(Superseded to 099068001005)

$

$

Not available

7

Homelite 06713

COMPRESSION SPRING

$1.49

$

In Stock, only 2 left!

0

8

Homelite PA0387A

SPOOL W/LINE (.80 in.)
(Superseded to 308044002)

$

$

Not available

9

Homelite A98866A

SPOOL RETAINER (RH/THREAD)
(Superseded to 308042002)

$

$

Not available

10

Homelite PA00249

FASTENER PARTS KIT

$

$

Not available

11

Homelite A07673

FLEX SHAFT

$35.99

$

Usually ships in 3-7 days

0

12

Homelite PS02155

END CAP STORAGE
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

13

Homelite 984615001

UPPER DRV. SHAFT ASSY. & DECAL

$

$

Currently unavailable

14

Homelite 984413001

LABEL, UPPER BOOM WARNING

$

$

Currently unavailable
