RY 802900 (090079399) - Ryobi Pressure Washer, Rev 01 (2018-02) General Assembly (Part 2) Parts Diagram

Pressure Washer, Rev 01

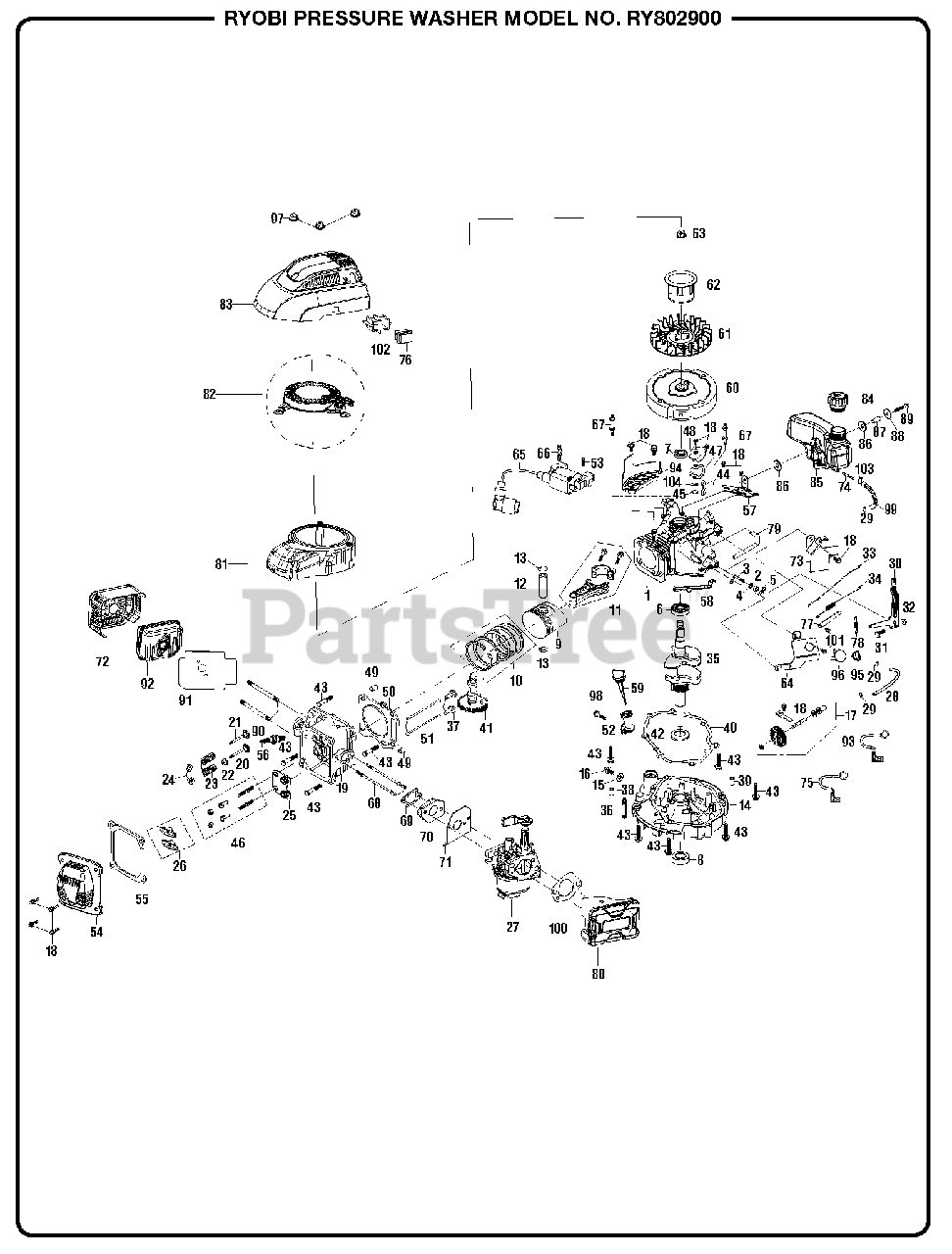

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite 099981133001

Crankcase

$231.99

$

Usually ships in 3-7 days

0

2

Homelite 099981133002

Governor Arm Shaft Seal

$26.99

$

Usually ships in 3-7 days

0

3

Homelite 099981133003

Governor Arm Shaft

$3.99

$

Usually ships in 3-7 days

0

4

Homelite 099981133004

Governor Arm Shaft Washer

$26.99

$

Usually ships in 3-7 days

0

5

Homelite 099981133005

Pin Lock

$3.49

$

Usually ships in 3-7 days

0

6

Homelite 099981133006

Ball Bearing

$16.99

$

Usually ships in 3-7 days

0

7

Homelite 099981133007

Oil Seal

$4.99

$

Usually ships in 3-7 days

0

8

Homelite 099981133008

Oil Seal

$9.49

$

Usually ships in 3-7 days

0

9

Homelite 099981133009

Piston

$36.99

$

Usually ships in 3-7 days

0

10

Homelite 099981133010

Piston Scraper Ring Set

$26.99

$

Usually ships in 3-7 days

0

11

Homelite 099981133011

Connecting Rod Assembly

$26.99

$

Usually ships in 3-7 days

0

12

Homelite 099981133012

Piston Pin

$7.99

$

Usually ships in 3-7 days

0

13

Homelite 099981133013

Piston Clip

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 099981133014

Crankcase Cover Assembly

$26.99

$

Usually ships in 3-7 days

0

15

Homelite 099981133015

Drain Plug Washer

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 099981133016

Drain Plug

$3.49

$

Usually ships in 3-7 days

0

17

Homelite 099981133017

Governor Assembly

$9.49

$

Usually ships in 3-7 days

0

18

Homelite 099981133018

Bolt (M6 x 12 mm, Hex Flange Hd.)

$3.49

$

In Stock, only 3 left!

0

19

Homelite 099981133019

Cylinder Head

$118.99

$

Usually ships in 3-7 days

0

20

Homelite 099981133020

Inlet Valve

$11.99

$

Usually ships in 3-7 days

0

21

Homelite 099981133021

Exhaust Valve

$11.99

$

Usually ships in 3-7 days

0

22

Homelite 099981133022

Intake Valve Returner

$26.99

$

Usually ships in 3-7 days

0

23

Homelite 099981133023

Valve Spring

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 099981133024

Valve Spring In Seat

$26.99

$

Usually ships in 3-7 days

0

25

Homelite 099981133025

Push Rod Guide Plate

$37.99

$

Usually ships in 3-7 days

0

26

Homelite 099981133026

Rocker Assembly

$3.49

$

Usually ships in 3-7 days

0

27

Homelite 099981133027

Carburetor Assembly

$86.99

$

Usually ships in 3-7 days

0

28

Homelite 099981133028

Fuel Line

$11.99

$

Usually ships in 3-7 days

0

29

Homelite 099981133029

Fuel Line Clip

$3.49

$

In Stock, only 2 left!

0

30

Homelite 099981133030

Governor Arm

$5.99

$

Usually ships in 3-7 days

0

31

Homelite 099981133031

Governor Arm Bolt (M6 x 21 mm, Hex Hd.)

$26.99

$

Usually ships in 3-7 days

0

32

Homelite 099981133032

Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 099981133033

Governor Rod

$3.49

$

Usually ships in 3-7 days

0

34

Homelite 099981133034

Throttle Return Spring

$31.99

$

Usually ships in 3-7 days

0

35

Homelite 099981133035

Crankshaft Assembly

$4.99

$

Usually ships in 3-7 days

0

36

Homelite 099981133036

Oil Defense Pipe

$3.49

$

Usually ships in 3-7 days

0

37

Homelite 099981133037

Valve Lifter

$5.99

$

Usually ships in 3-7 days

0

38

Homelite 099981133038

Case Cover Dowel Pin

$3.49

$

Usually ships in 3-7 days

0

39

Homelite 099981133039

Case Cover Dowel Pin

$3.49

$

Usually ships in 3-7 days

0

40

Homelite 099981133040

Case Cover Packing

$7.99

$

In Stock, only 1 left!

0

41

Homelite 099981133041

Camshaft Assembly

$39.99

$

Usually ships in 3-7 days

0

42

Homelite 099981133042

Crankshaft Washer

$3.49

$

Usually ships in 3-7 days

0

43

Homelite 099981133043

Bolt (M8 x 50 mm)

$3.99

$

Usually ships in 3-7 days

0

44

Homelite 099981133044

Breather Filter

$3.49

$

Usually ships in 3-7 days

0

45

Homelite 099981133045

Breather Valve Cover

$37.99

$

Usually ships in 3-7 days

0

46

Homelite 099981133046

Rocker Bolt

$26.99

$

Usually ships in 3-7 days

0

47

Homelite 099981133047

Breather Chamber Gasket

$26.99

$

Usually ships in 3-7 days

0

48

Homelite 099981133048

Breather Chamber Cap

$37.99

$

Usually ships in 3-7 days

0

49

Homelite 099981133049

Dowel Pin

$3.49

$

Usually ships in 3-7 days

0

50

Homelite 099981133050

Cylinder Head Gasket

$15.99

$

Usually ships in 3-7 days

0

51

Homelite 099981133051

Push Rod

$3.99

$

Usually ships in 3-7 days

0

52

Homelite 099981133052

Oil Filler Extension

$25.99

$

In Stock, only 1 left!

0

53

Homelite 099981133053

Bolt (M6 x 30 mm)

$3.49

$

Usually ships in 3-7 days

0

54

Homelite 099981133054

Cylinder Head Cover Comp

$26.99

$

Usually ships in 3-7 days

0

55

Homelite 099981133055

Headcover Packing

$4.99

$

Usually ships in 3-7 days

0

56

Homelite 099981133056

Spark Plug

$17.99

$

Usually ships in 3-7 days

0

57

Homelite 099981133057

Oil Tank Stay

$9.49

$

Usually ships in 3-7 days

0

58

Homelite 099981133058

Shroud

$3.99

$

Usually ships in 3-7 days

0

59

Homelite 099981133059

Dipstick

$5.49

$

In Stock, only 2 left!

0

60

Homelite 099981133060

Flywheel Assembly

$75.99

$

Usually ships in 3-7 days

0

61

Homelite 099981133061

Recoil Starter Fan

$5.99

$

Usually ships in 3-7 days

0

62

Homelite 099981133062

Starter Pulley

$7.99

$

Usually ships in 3-7 days

0

63

Homelite 099981133063

Nut (M14)

$2.99

$

Usually ships in 3-7 days

0

64

Homelite 099981133064

Switch Plate

$37.99

$

Usually ships in 3-7 days

0

65

Homelite 099981133065

Ignition Coil Assembly

$33.99

$

Usually ships in 3-7 days

0

66

Homelite 099981133066

Ignition Coil Bolt Stud

$26.99

$

Usually ships in 3-7 days

0

67

Homelite 099981133067

Recoil Starter Bolt Stud

$26.99

$

Usually ships in 3-7 days

0

68

Homelite 099981133068

Stud Bolt

$2.99

$

Usually ships in 3-7 days

0

69

Homelite 099981133069

Intake Packing

$4.49

$

In Stock, only 3 left!

0

70

Homelite 099981133070

Carburetor Insulator

$37.99

$

Usually ships in 3-7 days

0

71

Homelite 099981133071

Carburetor Packing

$7.49

$

Usually ships in 3-7 days

0

72

Homelite 099981133072

Out Muffler Shield

$18.99

$

In Stock, only 1 left!

0

73

Homelite 099981133073

Upper Shroud Assembly

$3.99

$

Usually ships in 3-7 days

0

74

Homelite 099981133074

Filter

$3.49

$

Usually ships in 3-7 days

0

75

Homelite 099981133075

Flameout Wire

$3.99

$

Usually ships in 3-7 days

0

76

Homelite 099981133076

Off Switch

$31.99

$

Usually ships in 3-7 days

0

77

Homelite 099981133077

Wire Harness Clip

$3.49

$

Usually ships in 3-7 days

0

78

Homelite 099981133078

Governor Spring

$2.99

$

Usually ships in 3-7 days

0

79

Homelite 099981133079

Breather Tube

$4.99

$

In Stock, only 2 left!

0

80

Homelite 099981133080

Air Cleaner Assembly

$36.99

$

In Stock, only 2 left!

0

81

Homelite 099981133081

Fan Hood

$16.99

$

Usually ships in 3-7 days

0

82

Homelite 099981133082

Recoil Starter Comp
(Superseded to 099980858083)

$51.99

$

Usually ships in 3-7 days

0

83

Homelite 099981133083

Fan Cover

$21.99

$

Usually ships in 3-7 days

0

84

Homelite 099981133084

Fuel Tank Cap

$45.99

$

Usually ships in 3-7 days

0

85

Homelite 099981133085

Fuel Tank Assembly

$43.99

$

Usually ships in 3-7 days

0

86

Homelite 099981133086

Isolation Pad

$26.99

$

Usually ships in 3-7 days

0

87

Homelite 099981133087

Fuel Tank Bushing

$2.49

$

Usually ships in 3-7 days

0

88

Homelite 099981133088

Fuel Tank Washer

$3.49

$

Usually ships in 3-7 days

0

89

Homelite 099981133089

Bolt (M8 x 45 mm)

$3.49

$

Usually ships in 3-7 days

0

90

Homelite 099981133090

Stud

$3.49

$

Usually ships in 3-7 days

0

91

Homelite 099981133091

Exhaust Packing

$6.49

$

Usually ships in 3-7 days

0

92

Homelite 099981133092

Muffler Comp

$26.99

$

Usually ships in 3-7 days

0

93

Homelite 099981133093

Flameout Wire

$3.99

$

Usually ships in 3-7 days

0

94

Homelite 099981133094

Shroud

$5.99

$

Usually ships in 3-7 days

0

95

Homelite 099981133095

Fuel Valve Knob

$13.99

$

Usually ships in 3-7 days

0

96

Homelite 099981133096

Fuel Valve Bezel

$2.49

$

Usually ships in 3-7 days

0

97

Homelite 099981133097

Nut (M6)

$2.99

$

In Stock, Qty 6

0

98

Homelite 099981133098

Bolt (M8 X 20 mm)

$3.49

$

Usually ships in 3-7 days

0

99

Homelite 099981133099

Fuel Line

$9.49

$

Usually ships in 3-7 days

0

100

Homelite 099981133100

Carburetor Spacer

$2.99

$

In Stock, only 3 left!

0

101

Homelite 099981133101

Bolt (M6 x 25 mm)

$3.49

$

Usually ships in 3-7 days

0

102

Homelite 099981133102

Switch Bracket

$3.49

$

Usually ships in 3-7 days

0

103

Homelite 099981133103

Fuel Line Clip

$3.49

$

Usually ships in 3-7 days

0

104

Homelite 099981133104

Breather Spring

$3.49

$

Usually ships in 3-7 days

0
