RY 803000 E (090079331) - Ryobi Pressure Washer, Rev 01 (2017-10) General Assembly Parts Diagram

Pressure Washer, Rev 01

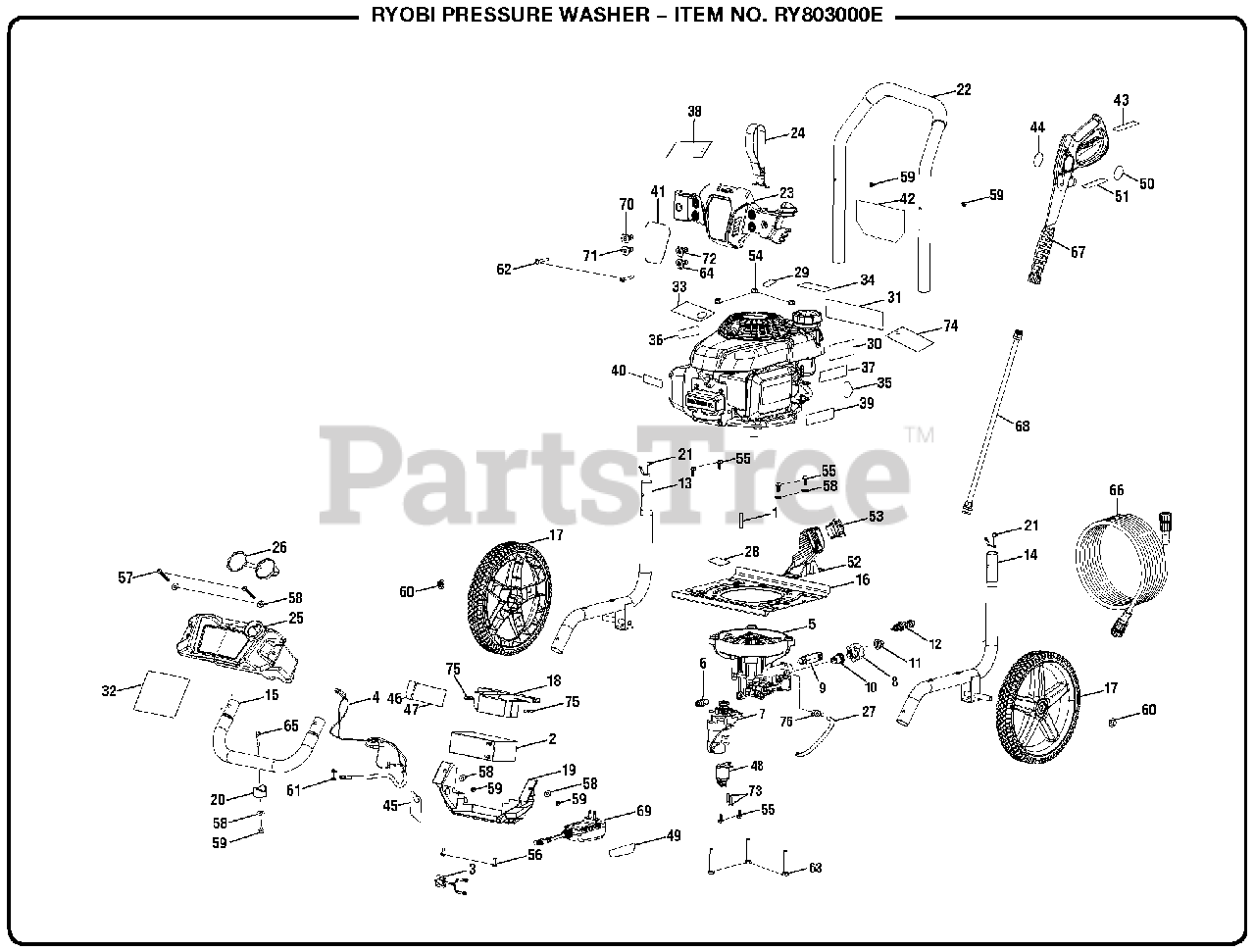

General Assembly Parts Diagram

  • Title

1

Homelite 678041007

Output Shaft Key

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 750400008

Battery (12V, 4.5Ah)

$105.99

$

In Stock, only 2 left!

0

3

Homelite 290435052

Battery and Charger Wire Harness

$15.99

$

Usually ships in 3-7 days

0

4

Homelite 290435045

Wiring Harness (Battery to Relay)

$

$

Not available

5

Homelite 308653084

Pump

Note: (Incl. Key Nos. 8-12 & 76)

$

$

Not available

6

Homelite 678169004

Thermal Release Valve

$16.99

$

Usually ships in 3-7 days

0

7

Homelite 291691001

E-Start Motor Assembly

$

$

Not available

8

Homelite 310993003

Inlet Filter Adapter Insert

$6.49

$

Usually ships in 3-7 days

0

9

Homelite 308862003

Outlet Tube

$10.99

$

In Stock, only 1 left!

0

10

Homelite 642058001

Inlet Filter Connector

$4.99

$

Usually ships in 3-7 days

0

11

Homelite 308662001

Inlet Filter Screen

$

$

Not available

12

Homelite 310924003

Unloader Valve Assembly

$35.99

$

In Stock, only 2 left!

0

13

Homelite 310703012

Left Frame Assembly

Note: (Incl. Key No. 21)

$39.99

$

Usually ships in 3-7 days

0

14

Homelite 310704013

Right Frame Assembly

Note: (Incl. Key No. 21)

$39.99

$

Usually ships in 3-7 days

0

15

Homelite 310742028

Front Frame Assembly

Note: (Incl. Key Nos. 20, 58-59 & 65)

$43.99

$

In Stock, only 1 left!

0

16

Homelite 638662043

Engine Plate

$41.99

$

Usually ships in 3-7 days

0

17

Homelite 308451053

Wheel
(Superseded to 308451067)

$28.99

$

Usually ships in 3-7 days

0

18

Homelite 528743003

Battery Retainer

$9.49

$

Usually ships in 3-7 days

0

19

Homelite 528743002

Battery Mount Bracket

$14.99

$

Usually ships in 3-7 days

0

20

Homelite 570554002

Wear Pad

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 308421004

Handle Spring Clip

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 308638060

Handle Assembly

$63.99

$

Usually ships in 3-7 days

0

23

Homelite 310673029

Hose and Nozzle Holder Assembly

$

$

Not available

24

Homelite 308350003

Hose Holder Strap

$3.99

$

Usually ships in 3-7 days

0

25

Homelite 580875024

Soap Tank

$29.99

$

Usually ships in 3-7 days

0

26

Homelite 310650004

Soap Tank Cap

$3.49

$

In Stock, Qty 6

0

27

Homelite 570728010

Chemical Siphon Tube
(Superseded to 561399003)

$3.49

$

Usually ships in 3-7 days

0

28

Homelite 940871016

Add Oil Label

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 940947010

Combustion Warning Label

$25.99

$

Usually ships in 3-7 days

0

30

Homelite 940851268

Choke Label

$

$

Not available

31

Homelite 940894012

Danger Label

$18.99

$

Usually ships in 3-7 days

0

32

Homelite 940851269

Soap Tank Label

$

$

Not available

33

Homelite 961454001

Oil Dipstick Hangtag

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 940872003

E85 Label

$2.49

$

In Stock, only 2 left!

0

35

Homelite 940851315

On/Off Label

$

$

Not available

36

Homelite 940680027

Hot Surface

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 941486008

Inquiries Label

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 961039005

Nozzle Hangtag

$

$

Not available

39

Homelite 940803288

EMC ICES-2/NMB-2 Label

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 940851270

Electric Start Label

$

$

Not available

41

Homelite 940851272

Performance Label

$3.49

$

Usually ships in 3-7 days

0

42

Homelite 940851273

Quick Start Label

$4.49

$

Usually ships in 3-7 days

0

43

Homelite 940654228

Trigger Handle Warning Label (French/Spanish)

$3.49

$

Usually ships in 3-7 days

0

44

Homelite 940786035

Spray Wand Logo Label

$3.49

$

Usually ships in 3-7 days

0

45

Homelite 940851274

Battery Connection Hangtag

$

$

Not available

46

Homelite 940851275

Battery Charging Port Label

$

$

Not available

47

Homelite 940851276

Battery Charging Warnings Label

$

$

Not available

48

Homelite 870280001

Relay Assembly

$26.99

$

Usually ships in 3-7 days

0

49

Homelite 940780025

Battery Maintainer Label

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 940654084

Trigger Handle Warning Label (Eng)

$3.49

$

In Stock, only 1 left!

0

51

Homelite 940786047

Trigger Handle Specifications Label

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 528743005

Switch Bracket

$

$

Currently unavailable

53

Homelite 270290024

Start Switch

$39.99

$

Usually ships in 3-7 days

0

54

Homelite 678774002

Lock Nut (M8)

$2.49

$

In Stock, Qty 6

0

55

Homelite 661505020

Bolt (M6 x 16 mm, Hex Flange Hd.)

$

$

Not available

56

Homelite 638671014

Bolt (M6 x 16 mm, T-30 Torx Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

57

Homelite 660224010

Bolt (M6 x 50 mm, T-30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 638128004

Washer (1/4 in.)

$2.49

$

In Stock, Qty 5

0

59

Homelite 678610006

Lock Nut (M6)

$

$

Not available

60

Homelite 679957001

Cap Nut

$

$

Not available

61

Homelite 660923018

Screw (M4 x 12 mm, T20 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 661834004

Bolt (M6 x 42 mm, T30 Torx Pan Hd.)

$3.99

$

Usually ships in 3-7 days

0

63

Homelite 660962003

Bolt (M8 x 60 mm, Hex Flange Hd.)

$1.99

$

Usually ships in 3-7 days

0

64

Homelite 308706011

Soap Nozzle

$6.49

$

In Stock, only 2 left!

0

65

Homelite 661503015

Screw (M6 x 48 mm, T-30 Torx Hd.)

$2.99

$

Usually ships in 3-7 days

0

66

Homelite 308835006

Hose (25 ft.)

$67.99

$

Usually ships in 3-7 days

0

67

Homelite 308760019

Trigger Handle Assembly

Note: (Incl. Key Nos. 50-51)

$

$

Not available

68

Homelite 308506014

Spray Wand

$

$

Not available

69

Homelite 140173031

Battery Charger
(Superseded to 140173033)

$83.99

$

Usually ships in 3-7 days

0

70

Homelite 308697029

0deg Nozzle

$10.99

$

Usually ships in 3-7 days

0

71

Homelite 308699029

25deg Nozzle

$10.99

$

Usually ships in 3-7 days

0

72

Homelite 308700030

40deg Nozzle

$21.99

$

Usually ships in 3-7 days

0

73

Homelite 660938003

Bolt (M5 x 20 mm)

$1.49

$

In Stock, only 1 left!

0

74

Homelite 940473012

Danger Hangtag (French/English/Spanish)

$2.49

$

Usually ships in 3-7 days

0

75

Homelite 518724008

Washers (M6)

$7.99

$

Usually ships in 3-7 days

0

76

Homelite 308452002

Soap Injector Kit

$6.99

$

In Stock, only 3 left!

0

Homelite 995000245

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 995000246

Quick Start Guide

$1.49

$

Usually ships in 3-7 days

0

Homelite 519314001

Funnel

$1.99

$

Usually ships in 3-7 days

0

Homelite 900333015

Wire Tie

$

$

Not available
