RY 80518 - Ryobi Pressure Washer General Assembly B Parts Diagram

Pressure Washer

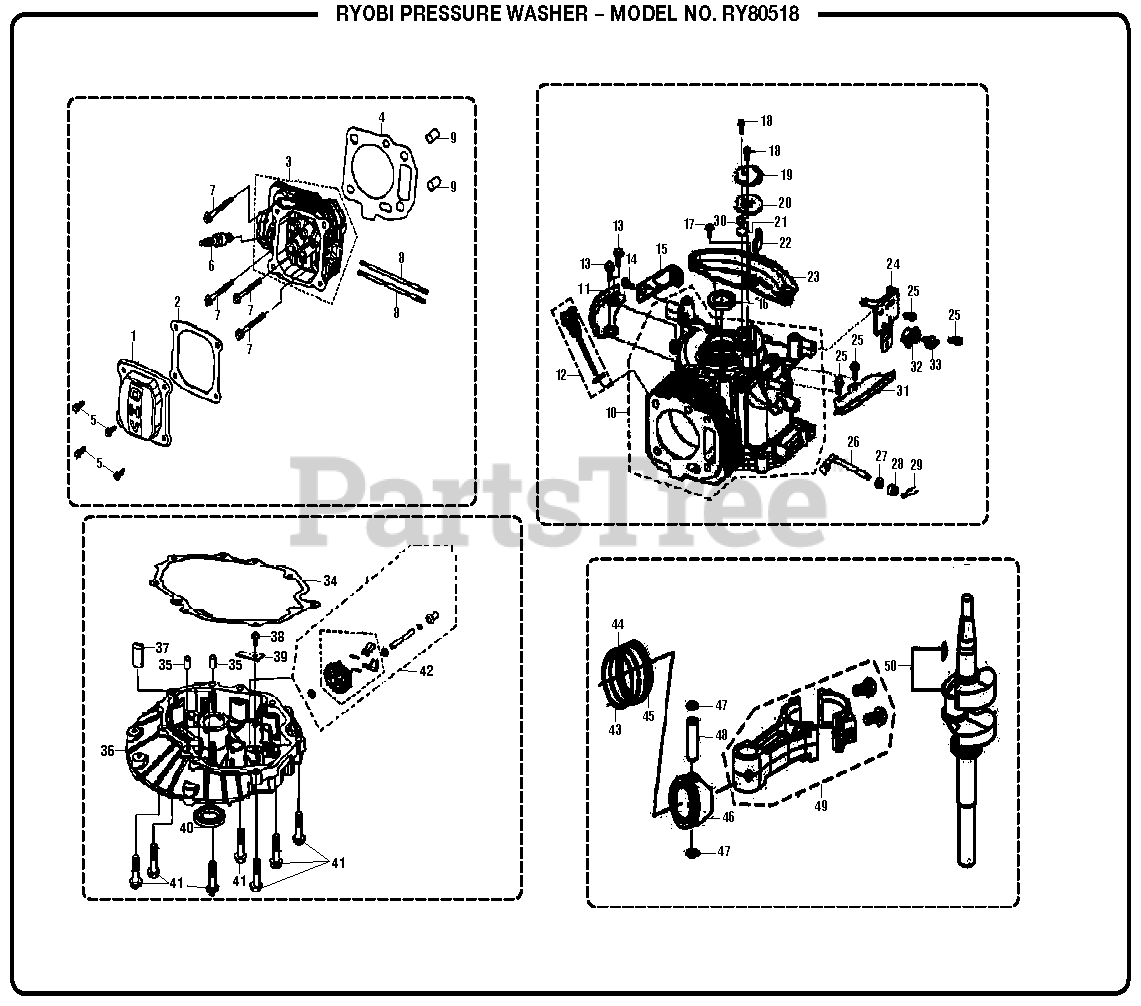

General Assembly B Parts Diagram

  • Title

CYLINDER HEAD ASSEMBLY

$

$

Not available

1

Homelite 12411-Z030120-0000

Cylinder Head Cover

$

$

Not available

2

Homelite 12004-Z030110-0000

Cylinder Head Cover Gasket

$

$

Currently unavailable

3

Homelite 12140-Z250210-0000

Cylinder Head Assembly

$

$

Currently unavailable

4

Homelite 12131HZ250130

Cylinder Head Gasket

$

$

Currently unavailable

5

Homelite 90007-0612-A1

Bolt

$

$

Currently unavailable

6

Homelite 30010-Z010210-0000

Spark Plug

$4.49

$

In Stock, only 3 left!

0

7

Homelite 12003-Z030110-0000

Cylinder Head Bolt

$

$

Not available

8

Homelite 90204-Z250310-0000

Stud

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 90502-1014-00

Pin

$1.49

$

Usually ships in 3-7 days

0

CRANKCASE ASSEMBLY

$

$

Not available

10

Homelite 11310-Z250170-0031

Crankcase Assembly

$

$

Not available

11

Homelite 19308HZ250120-0000

Crankcase Side Shield

$

$

Not available

12

Homelite 15010-Z030120-QG00

Dipstick Assembly Oil

$

$

Currently unavailable

13

Homelite 90001-0514-A1

Bolt

$

$

Currently unavailable

14

Homelite 90007-0612-A1

Bolt

$

$

Currently unavailable

15

Homelite 16608HZ030120-0000

Fuel Tank Right Bracket

$

$

Not available

16

Homelite 90682-Z50110-0000

Oil Seal

$

$

Currently unavailable

17

Homelite 90001-0514-01

Bolt

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 90007-0612-A1

Bolt

$

$

Currently unavailable

19

Homelite 11333-Z250210-0000

Breathe Groove Cover Plate

$

$

Currently unavailable

20

Homelite 11332-Z250410-0000

Breathe Groove Cover

$

$

Currently unavailable

21

Homelite 11321-Z030110-0099

Breathe Piece

$

$

Not available

22

Homelite 11331-Z250110-0000

Breathe Groove Strainer

$

$

Not available

23

Homelite 19351-Z250110-0000

Crankcase Rear Shield

$

$

Not available

24

Homelite 16607HZ250710-0000

Fuel Tank Left Bracket

$

$

Not available

25

Homelite 90007-0612-A1

Bolt

$

$

Currently unavailable

26

Homelite 16061-Z250120-0000

Governor Arm

$

$

Not available

27

Homelite 90408-Z010210-0000

Washer

$1.49

$

In Stock, only 2 left!

0

28

Homelite 90682-Z030210-0000

Oil Seal

$

$

Not available

29

Homelite 90501-Z010110-0000

Pin

$1.49

$

In Stock, only 2 left!

0

30

Homelite 11322-Z620110-0000

Breath Peice Return Spring

$

$

Not available

31

Homelite 19309-Z250110-0000

Crankcase Right Shield

$

$

Not available

32

Homelite 16757-Z020120-0000

Fuel Valve Holder

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 16752-Z020110-0000

Fuel Valve

$10.99

$

Usually ships in 3-7 days

0

CRANKCASE / GEAR / GOVERNOR/ COVER ASSEMBLY

$

$

Not available

34

Homelite 11001-Z250230-0000

Crankcase Gasket

$4.99

$

Usually ships in 3-7 days

0

35

Homelite 90502-0812-00

Pin

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 11411-Z250120-0030

Crankcase Cover

$

$

Not available

37

Homelite 11341-Z030110-0000

Returning Oil Block

$

$

Not available

38

Homelite 90007-0612-A1-0000

Bolt

$

$

Currently unavailable

39

Homelite 16013-Z030120-0000

Governor Spindle Plate

$

$

Not available

40

Homelite 90682-Z030120-0000

Oil Seal

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 90007-0628-A1-0000

Bolt

$

$

Currently unavailable

42

Homelite 16400-Z250110

Governor Gear Assembly

$

$

Currently unavailable

CRANKSHAFT CONNECTING ROD

$

$

Not available

43

Homelite 13201-Z250110-0000

First Ring

$

$

Not available

44

Homelite 13202-Z250110-0000

Second Ring

$2.99

$

Usually ships in 3-7 days

0

45

Homelite 13210-Z250110-0000

Oil Ring Set

$3.99

$

Usually ships in 3-7 days

0

46

Homelite 13111-Z250210-0099

Piston

$12.99

$

Usually ships in 3-7 days

0

47

Homelite 13122-Z250110-0000

Piston Pin Clip

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 13121-Z250110-0000

Piston Pin

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 13010-Z250110-0000

Connecting Rod

$

$

Not available

50

Homelite 13300-Z252210-0000

Crankshaft Assembly

$

$

Not available
