RY 80518 - Ryobi Pressure Washer General Assembly D Parts Diagram

Pressure Washer

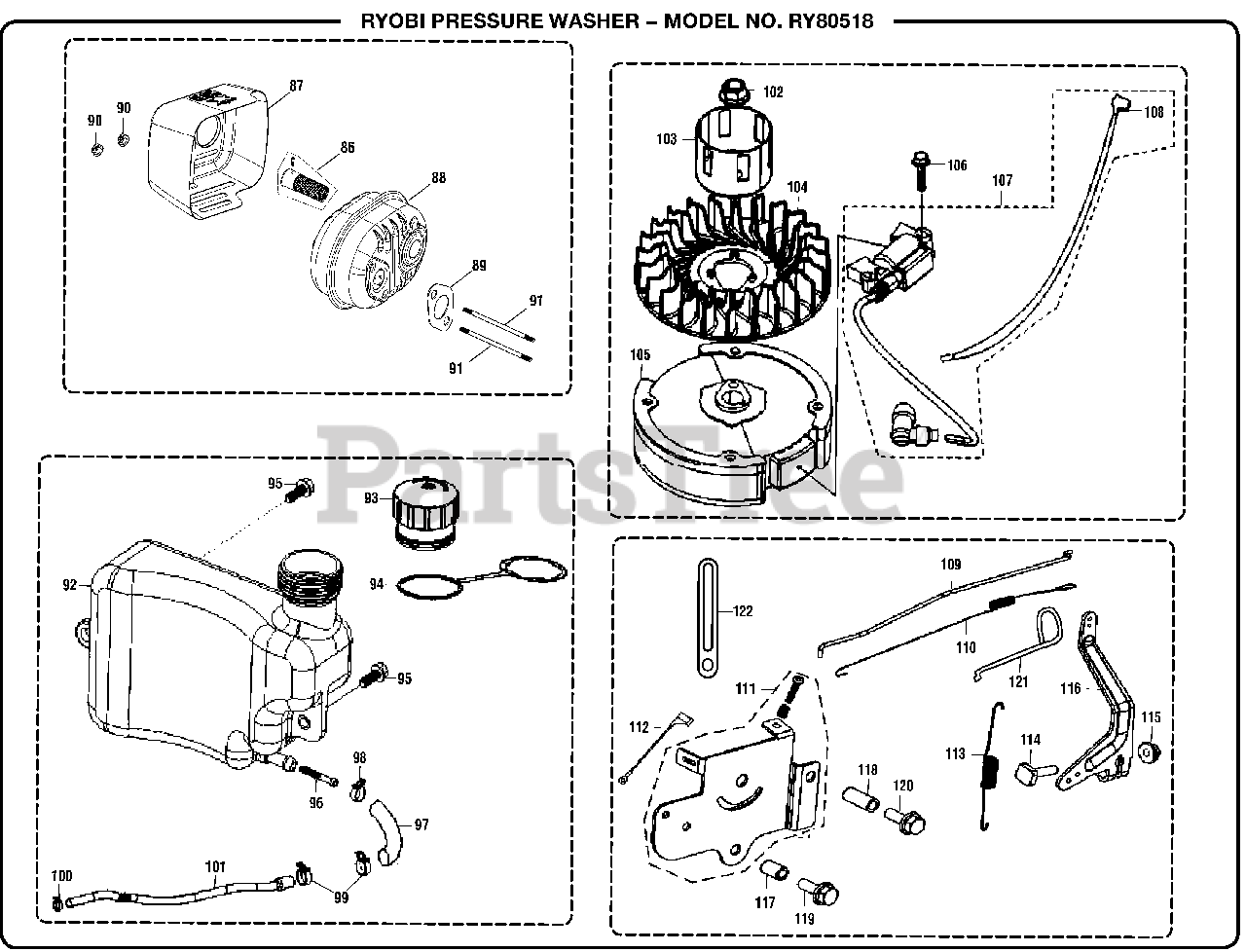

General Assembly D Parts Diagram

  • Title

MUFFLER

$

$

Not available

86

Homelite 18110-Z250110-0001

Catalytic converter

$

$

Currently unavailable

87

Homelite 18130-Z250410-QA00

Muffler Outer Cover

$

$

Not available

88

Homelite 18100-Z250210-QA99

Muffer Assembly

$

$

Not available

89

Homelite 18001-Z250110-0000

Exhaust Outlet Gasket

$

$

Not available

90

Homelite 90305-0600-31

Nut

$1.49

$

Usually ships in 3-7 days

0

91

Homelite 90204-Z250110-0000

Stud

$1.49

$

Usually ships in 3-7 days

0

FUEL TANK

$

$

Not available

92

Homelite 16620-Z030510-0099

Fuel Tank Assembly

$

$

Not available

93

Homelite 16730-Z620210-0000

Fuel Cap

$

$

Not available

94

Homelite 16744-Z620120-0000

Fuel Cap Chain

$

$

Not available

95

Homelite 90007-0614-A1

Bolt

$

$

Not available

96

Homelite 16652-Z030110-0000

Fuel Filter

$1.49

$

In Stock, only 2 left!

0

97

Homelite 90686-Z250310-0000

Fuel Tube

$3.49

$

In Stock, only 1 left!

0

98

Homelite 90685-Z030410-0000

Clamp

$1.49

$

In Stock, only 1 left!

0

99

Homelite 90685-Z020110-0000

Clamp

$

$

Not available

100

Homelite 90685-Z030220-0000

Clamp

$1.49

$

Usually ships in 3-7 days

0

101

Homelite 90686-Z250410-0000

Fuel Tube

$4.99

$

In Stock, only 1 left!

0

FLYWHEEL / IMPELLER / STARTER PULLEY / IGNITION COIL

$

$

Not available

102

Homelite 13501-Z010110-0000

Flywheel Nut

$1.49

$

Usually ships in 3-7 days

0

103

Homelite 28002-Z030110-0000

Starter Pulley

$

$

Not available

104

Homelite 19352-Z010110-0000

Impeller

$

$

Not available

105

Homelite 13510-Z340110-0000

Flywheel Assembly

$33.99

$

Usually ships in 3-7 days

0

106

Homelite 90007-0625-A1

Bolt

$

$

Not available

107

Homelite 30423-Z020210-0000

Ignition Coil Stop Wire

$

$

Currently unavailable

108

Homelite 30400-Z250310-0000

Ignition Coil

$

$

Currently unavailable

THROTTLE CONTROL ASSEMBLY

$

$

Not available

109

Homelite 16062-Z250110-0000

Governor Rod

$

$

Currently unavailable

110

Homelite 16012-Z030120-0000

Throttle Valve Return Spring

$

$

Not available

111

Homelite 16520-Z251210-0000

Throttle Control Bottom Plate

$

$

Not available

112

Homelite 35555-Z010120-0000

Stop Engine Switch Ground Wire

$1.49

$

Usually ships in 3-7 days

0

113

Homelite 16063-Z250510-0000

Governor Spring

$1.49

$

Usually ships in 3-7 days

0

114

Homelite 16072-Z010110-0000

Governor Support Bolt

$1.49

$

Usually ships in 3-7 days

0

115

Homelite 90305-0600-31

Nut

$1.49

$

Usually ships in 3-7 days

0

116

Homelite 16070-Z250110-0000

Governor Support Assembly

$2.49

$

Usually ships in 3-7 days

0

117

Homelite 90683-Z250110-0000

Sleeve

$

$

Not available

118

Homelite 90683-Z250210-0000

Sleeve

$

$

Not available

119

Homelite 90007-0635-A1

Bolt (Hex Flange Hd.)

$1.49

$

Usually ships in 3-7 days

0

120

Homelite 90007-0655-A1

Bolt

$

$

Not available

121

Homelite 16123-Z250820-0000

Choke Lever

$

$

Currently unavailable

122

Homelite 90684-Z030120-0000

Clip

$1.49

$

Usually ships in 3-7 days

0
