RY 80935 - Ryobi Pressure Washer General Assembly Parts Diagram

Pressure Washer

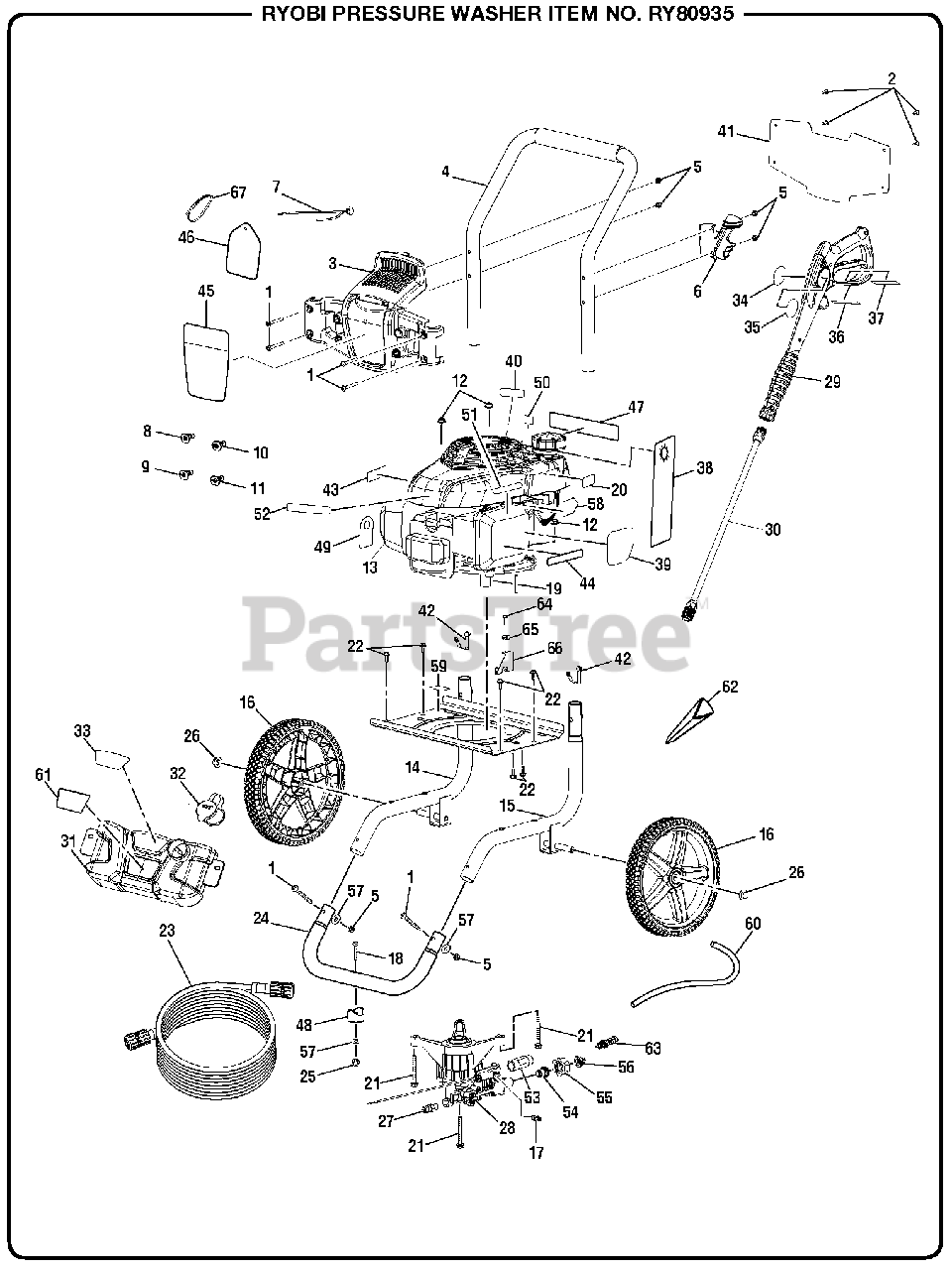

General Assembly Parts Diagram

  • Title

1

Homelite 661503015

Screw (M6 x 48 mm, T30 Torx Hd.)

$

$

Not available

2

Homelite 660923016

Screw (#6-20)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 310673006

Hose and Nozzle Holder

Note: (Inc. Key No. 7)

$

$

Not available

4

Homelite 308638042

Handle w/Foam

$27.99

$

Usually ships in 3-7 days

0

5

Homelite 678610006

Lock Nut (M6)

$

$

Not available

6

Homelite 519313009

Wand Holder

$

$

Not available

7

Homelite 310664001

Bungee Cord Assembly

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 308700030

40deg Nozzle

$10.99

$

Usually ships in 3-7 days

0

9

Homelite 308706011

Soap Nozzle

$12.99

$

In Stock, only 2 left!

0

10

Homelite 308699029

25deg Nozzle

$5.49

$

Usually ships in 3-7 days

0

11

Homelite 308697029

0deg Nozzle

$5.49

$

Usually ships in 3-7 days

0

12

Homelite 678774002

Flange Nut (M8 x 1.25)

$

$

Not available

13

Engine (Honda GCV 160, 160cc OHC Vertical)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

14

Homelite 310703012

Main Frame Assembly (Left)

Note: (Inc. Key No. 42)

$

$

Not available

15

Homelite 310704013

Main Frame Assembly (Right)

Note: (Inc. Key No. 42)

$22.99

$

Usually ships in 3-7 days

0

16

Homelite 308451053

Wheel
(Superseded to 308451067)

$

$

Not available

17

Homelite 308452002

Detergent Suction Kit

$3.49

$

Usually ships in 3-7 days

0

18

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

19

Homelite 678041007

Output Shaft Key (40 mm)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 940899003

Do Not Mix Label

$

$

Not available

21

Homelite 660962003

Bolt (M8 x 60 mm, Flange Hd.)

$1.99

$

In Stock, Qty 16

0

22

Homelite 661505020

Bolt (M6 x 16 mm, Flange Hd.)

$1.49

$

In Stock, Qty 9

0

23

Homelite 308835006

Hose (25 ft.)

$33.99

$

Usually ships in 3-7 days

0

24

Homelite 310742011

Front Frame

Note: (Inc. Key Nos. 18, 25, 48 & 57)

$11.99

$

Usually ships in 3-7 days

0

25

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

26

Homelite 679957001

Push Cap Nut (1/2 in.)

$1.49

$

In Stock, only 3 left!

0

27

Homelite 678169004

Thermal Release Valve

$

$

Not available

28

Homelite 308653068

Pump

Note: (Inc. Key Nos.17, 53-56 & 63)

$168.99

$

Usually ships in 3-7 days

0

29

Homelite 308760019

Trigger Handle Assembly

Note: (Inc. Key Nos. 35 & 37)

$27.99

$

Usually ships in 3-7 days

0

30

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

31

Homelite 580875015

Soap Tank
(Superseded to 580875008)

$

$

Not available

32

Homelite 310650004

Soap Tank Cap

$1.99

$

In Stock, Qty 5

0

33

Homelite 941608003

Soap Dilution Label

$1.99

$

In Stock, only 1 left!

0

34

Homelite 940786035

Label (Wand Logo)

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 940654084

Label (Wand Warning)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 940654228

Warning Label (Fr/Sp)

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 940786020

Label (Wand Rating)
(Superseded to 940786006)

$

$

Not available

38

Homelite 940473012

Danger Hangtag

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 940698019

Engine Control Label

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 940947010

Combustion Label

$12.99

$

Usually ships in 3-7 days

0

41

Homelite 524408007

Quick Start Panel

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 308421004

Lock Button w/Spring Clip

$

$

Not available

43

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940803018

EMC Label

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 940779114

Performance Label

$

$

Currently unavailable

46

Homelite 961039005

Nozzle Hangtag

$

$

Not available

47

Homelite 940894012

Danger Label

$9.49

$

Usually ships in 3-7 days

0

48

Homelite 570554002

Wear Pad

$1.49

$

In Stock, Qty 5

0

49

Homelite 961454001

Dipstick Hangtag

$1.49

$

Usually ships in 3-7 days

0

50

Homelite 940872003

No E85 Label

$1.49

$

In Stock, only 2 left!

0

51

Homelite 941486008

Inquiries Label

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 940608014

Idle Down Label

$1.49

$

Usually ships in 3-7 days

0

53

Homelite 308862003

Outlet Tube

$5.49

$

Usually ships in 3-7 days

0

54

Homelite 642058001

Spindle

$2.49

$

In Stock, only 1 left!

0

55

Homelite 310993003

Collar

$3.49

$

In Stock, only 2 left!

0

56

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

57

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

58

Homelite 941550005

Engine On/Off Label

$

$

Not available

59

Homelite 940871002

Oil Fill Location Label

$1.49

$

Usually ships in 3-7 days

0

60

Homelite 570728007

Chemical Siphon Tube
(Superseded to 561399003)

$1.99

$

Usually ships in 3-7 days

0

61

Homelite 941608002

Powered By Honda Label

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 519314001

Funnel

$1.49

$

Usually ships in 3-7 days

0

63

Homelite 310924003

Pump Unloader Valve

$17.99

$

In Stock, only 1 left!

0

64

Homelite 660938003

Bolt (M5 x 20 mm)

$1.49

$

In Stock, only 1 left!

0

65

Homelite 524014001

Idle Down Cable Clamp

$

$

Not available

66

Homelite 310437005

Idle Down Cable Bracket
(Superseded to 528743001)

$

$

Not available

67

Homelite 900333015

Wire Tie

$

$

Not available

Homelite 990000856

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 990000858

Quick Start Guide

Note: Not Shown

$

$

Currently unavailable
