RY 80942 (090079422) - Ryobi Pressure Washer, Rev 01 (2020-02) General Assembly Parts Diagram

Pressure Washer, Rev 01

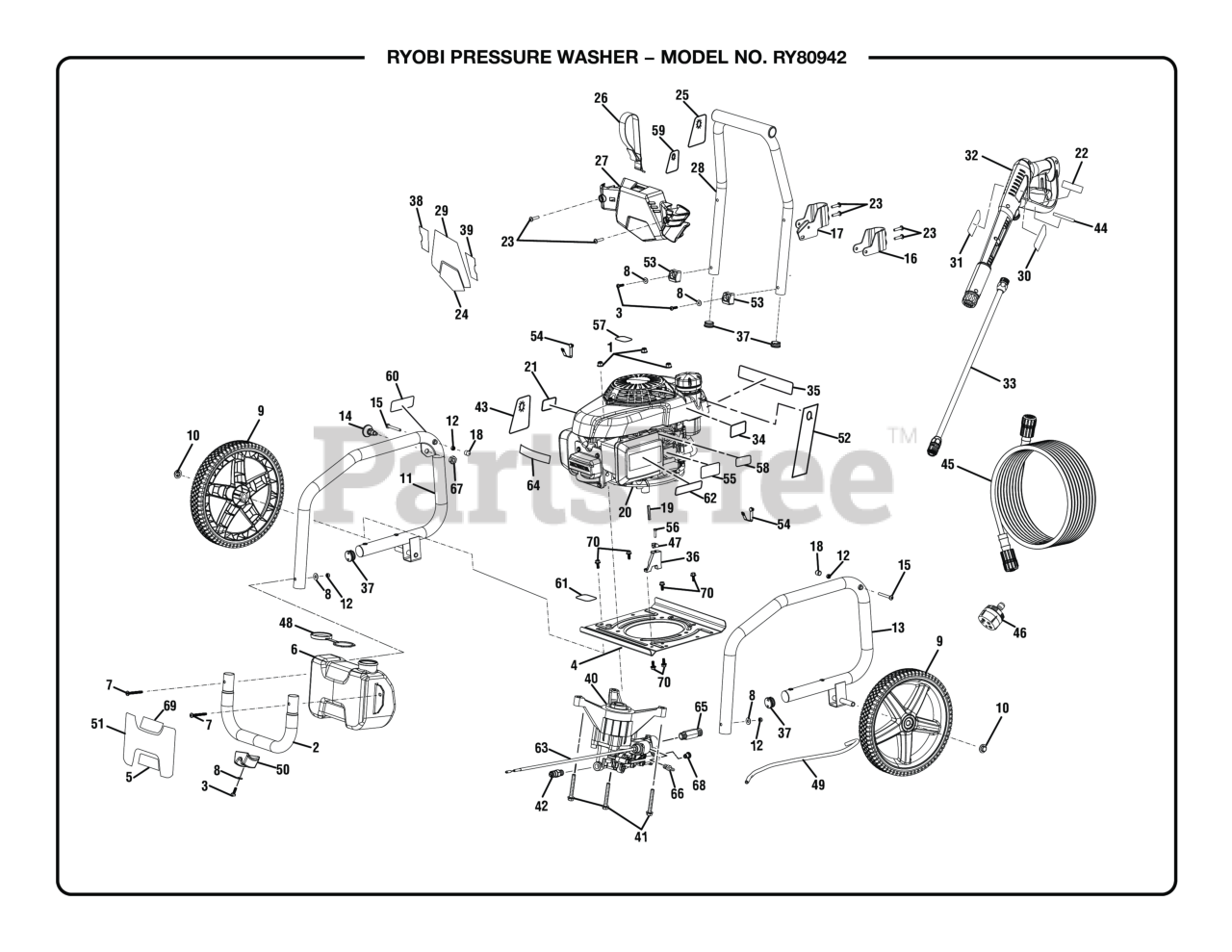

General Assembly Parts Diagram

  • Title

1

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

Note: Standard Hardware Item - May Be Purchased Locally

$2.49

$

In Stock, Qty 6

0

2

Homelite 310742032

Front Frame Assembly

Note: (Inc. Key. Nos. 3, 8 & 50)

$

$

Currently unavailable

3

Homelite 660224009

Screw (M6 x 1.25in., T30 Torx Pan Hd.)

Note: Standard Hardware Item - May Be Purchased Locally

$

$

Not available

4

Homelite 638662037

Engine Plate

$31.99

$

Usually ships in 3-7 days

0

5

Homelite 940851437

Detergent Tank Label

$

$

Currently unavailable

6

Homelite 580875030

Detergent Tank w/Outlet

$

$

Currently unavailable

7

Homelite 660224019

Screw (M6 x 50 mm, T30 Torx Pan Hd. )

Note: Standard Hardware Item - May Be Purchased Locally

$3.49

$

In Stock, only 2 left!

0

8

Homelite 638128004

Washer (1/4 in.)

Note: Standard Hardware Item - May Be Purchased Locally

$2.49

$

In Stock, Qty 5

0

9

Homelite 308451053

Wheel
(Superseded to 308451067)

$28.99

$

Usually ships in 3-7 days

0

10

Homelite 679957001

Push Cap Nut (1/2 in.)

$

$

Not available

11

Homelite 310704033

Main Frame Assembly

Note: (Right, Inc. Key No. 37)

$37.99

$

Usually ships in 3-7 days

0

12

Homelite 678610006

Lock Nut (M6 x 1)

Note: Standard Hardware Item - May Be Purchased Locally

$

$

Not available

13

Homelite 310703031

Main Frame Assembly

Note: (Left, Inc. Key. No. 37)

$39.99

$

Usually ships in 3-7 days

0

14

Homelite 308910010

Handle Lock Assembly

$

$

Not available

15

Homelite 678406010

Connection Pin (1/4-20 x 3.5 in., Hex Hd.)

Note: Standard Hardware Item - May Be Purchased Locally

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 638578003

Handle Connector (Left)

$5.99

$

Usually ships in 3-7 days

0

17

Homelite 638578004

Handle Connector (Right)

$7.49

$

Usually ships in 3-7 days

0

18

Homelite 570410003

Cap

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 678041007

Output Shaft Key (3/16 in. x 40 mm)

$1.49

$

Usually ships in 3-7 days

0

20

Engine (Honda 190cc)

Note: Parts Available At Your Local Honda Dealer

$

$

Not available

21

Homelite 940680027

Hot Surface and Exhaust Label

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 940654228

Label (Trigger Handle Warning, French & Spanish)

$3.49

$

Usually ships in 3-7 days

0

23

Homelite 661834005

Bolt (M6 x 25 mm,T30 Torx Pan Hd.)

Note: Standard Hardware Item - May Be Purchased Locally

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 940851444

Performance Label

$

$

Currently unavailable

25

Homelite 940851445

Quick Start Hangtag

$

$

Currently unavailable

26

Homelite 308350003

Hose Holder Strap

$3.99

$

Usually ships in 3-7 days

0

27

Homelite 518790043

Hose & Wand Storage

Note: (Inc. Key Nos. 24-26, 28-29 & 38-39)

$6.99

$

Usually ships in 3-7 days

0

28

Homelite 308638074

Handle Assembly

Note: (Inc. Key Nos. 3, 8, 37 & 53)

$40.99

$

In Stock, only 1 left!

0

29

Homelite 940851436

Warning Icon Label

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 940654083

Trigger Handle Warning Label (English)

$3.49

$

Usually ships in 3-7 days

0

31

Homelite 940851520

LABEL, TRIGGER HANDLE LOGO

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 308760070

Trigger Handle Assembly

Note: (Inc. Key Nos. 22, 30-32 & 44)

$

$

Not available

33

Homelite 308506014

Extension Wand

$

$

Not available

34

Homelite 940872003

No E85 Label

$2.49

$

In Stock, only 2 left!

0

35

Homelite 940851343

Danger Label (English/French)

$3.49

$

Usually ships in 3-7 days

0

36

Homelite 528743001

Idle Down Cable Bracket

$

$

Not available

37

Homelite 518932001

Plastic Tube Cap

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 940851441

Wing Label (Left)

$

$

Currently unavailable

39

Homelite 940851440

Wing Label (Right)

$

$

Currently unavailable

40

Homelite 308653097

Pump

Note: (Inc. Key Nos. 63-66 & 68)

$325.99

$

Usually ships in 3-7 days

0

41

Homelite 660962003

Flange Bolt (M8 x 1.25 x 60 mm, Hex Hd.)

Note: Standard Hardware Item - May Be Purchased Locally

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 678169004

Thermal Release Valve.

$16.99

$

Usually ships in 3-7 days

0

43

Homelite 961454001

Label (Oil Dipstick Hangtag)

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 940851446

LABEL, TRIGGER HANDLE RATING, EN FR SP

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 308835113

High Pressure Hose (50 ft.)

$86.99

$

Usually ships in 3-7 days

0

46

Homelite 310448020

5-in-1 Change Over Nozzle

$100.99

$

Usually ships in 3-7 days

0

47

Homelite 524014001

Idle Down Cable Clamp

$

$

Not available

48

Homelite 310650004

Detergent Tank Cap

$3.49

$

In Stock, Qty 6

0

49

Homelite 570728011

Injection Hose

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 561307007

Rubber Foot

$

$

Not available

51

Homelite 940851438

Honda Logo Label

$

$

Currently unavailable

52

Homelite 940851346

Danger Hangtag

$3.49

$

Usually ships in 3-7 days

0

53

Homelite 561307008

Rubber Bumper

$

$

Currently unavailable

54

Homelite 308421001

Lock Button w/Spring Clip
(Superseded to 308421004)

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 940648004

Engine Control Label

$

$

Not available

56

Homelite 660938003

Cap Screw (M5 x 20 mm)

Note: Standard Hardware Item - May Be Purchased Locally

$1.49

$

In Stock, only 1 left!

0

57

Homelite 940947010

Combustion Warning Label (English/French)

$25.99

$

Usually ships in 3-7 days

0

58

Homelite 940698045

On/Off Label

$

$

Not available

59

Homelite 941609001

5- In- 1 Nozzle Hangtag

$3.49

$

Usually ships in 3-7 days

0

60

Homelite 940693003

Handle Release Label

$1.99

$

Usually ships in 3-7 days

0

61

Homelite 940871016

Oil Fill Location Label

$1.49

$

Usually ships in 3-7 days

0

62

Homelite 941486008

Inquires Label (Ryobi)

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 310437009

Idler Assembly

$152.99

$

In Stock, Qty 8

0

64

Homelite 940608014

Idle Down Label

$2.99

$

Usually ships in 3-7 days

0

65

Homelite 308862003

Outlet Tube

$10.99

$

In Stock, only 1 left!

0

66

Homelite 308452002

Detergent Injector Assembly

$6.99

$

In Stock, only 3 left!

0

67

Homelite 678518002

Lock Nut (1/2-20, Hex)

Note: Standard Hardware Item - May Be Purchased Locally

$5.49

$

Usually ships in 3-7 days

0

68

Homelite 310993003

Inlet Filter Adapter/Brass Insert

$6.49

$

Usually ships in 3-7 days

0

69

Homelite 940851443

Logo Label

$

$

Currently unavailable

70

Homelite 661505020

Flange Bolt (M6 x 1 x 16 mm, Hex Hd.)

Note: Standard Hardware Item - May Be Purchased Locally

$

$

Not available

Homelite 990000608

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
