RY 903600 (090930278) - Ryobi Inverter Generator, Rev 08 (2017-01) Figure B Parts Diagram

Inverter Generator, Rev 08

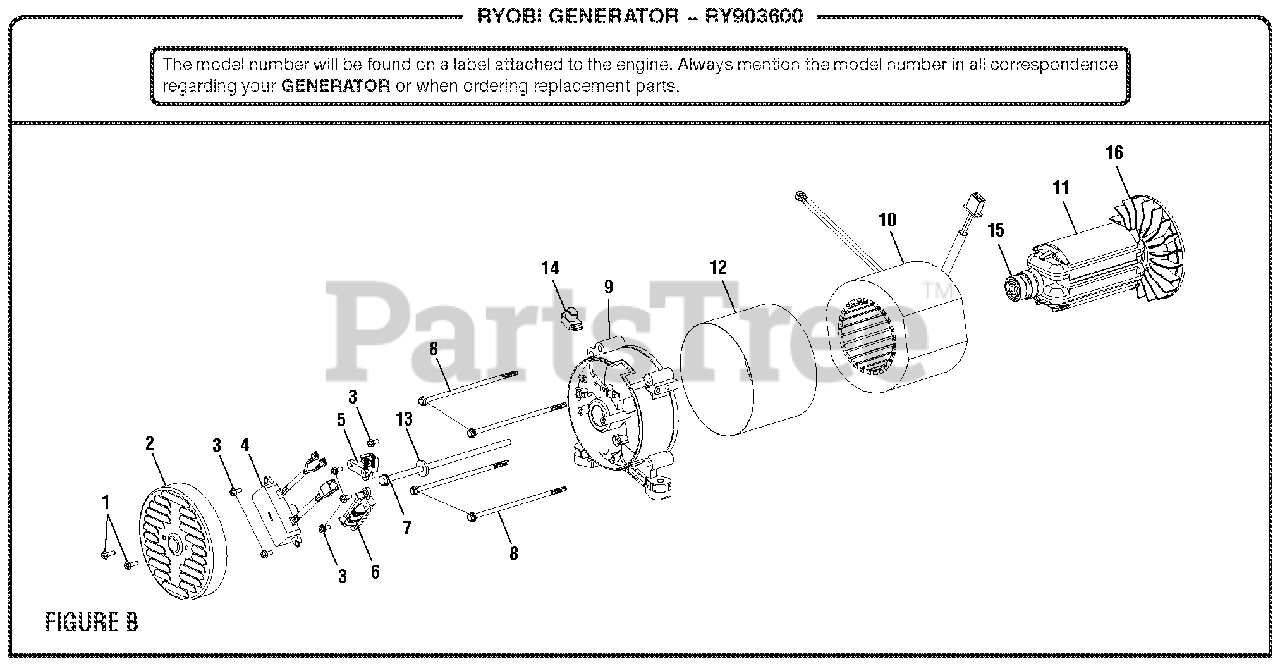

Figure B Parts Diagram

  • Title

1

Homelite 660938025

Bolt (M5 x 12 mm, Hex Flange Hd.)

$1.49

$

In Stock, only 3 left!

0

2

Homelite 678296005

Brush Cover

$6.49

$

In Stock, only 2 left!

0

3

Homelite 660938024

Bolt (M5 x 16 mm, Hex Flange Hd.)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 290440011

Automatic Voltage Regulator

$52.99

$

Usually ships in 3-7 days

0

5

Homelite 290441007

Brush Assembly

$5.49

$

In Stock, only 1 left!

0

6

Homelite 290602007

Terminal Block

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 661557020

Rotor Bolt

$3.99

$

In Stock, only 1 left!

0

8

Homelite 661603015

Stator Bolt

$2.49

$

In Stock, only 4 left!

0

9

Homelite 678865005

Bearing Housing

$45.99

$

Usually ships in 3-7 days

0

10

Homelite 310771054

Stator Assembly

$81.99

$

Usually ships in 3-7 days

0

11

Homelite 310772055

Rotor Assembly

$127.99

$

Usually ships in 3-7 days

0

12

Homelite 638624010

Wrapper

$7.49

$

Usually ships in 3-7 days

0

13

Homelite 638678011

Rotor Washer

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 570766008

Rubber Boot

$3.99

$

Usually ships in 3-7 days

0

15

Homelite 681963003

Ball Bearing

$

$

Not available

16

Homelite 307471003

Fan

$11.99

$

Usually ships in 3-7 days

0
