RY 905500 E (090930279) - Ryobi Inverter Generator, Rev 10 (2019-03) FIGURE B Parts Diagram

Inverter Generator, Rev 10

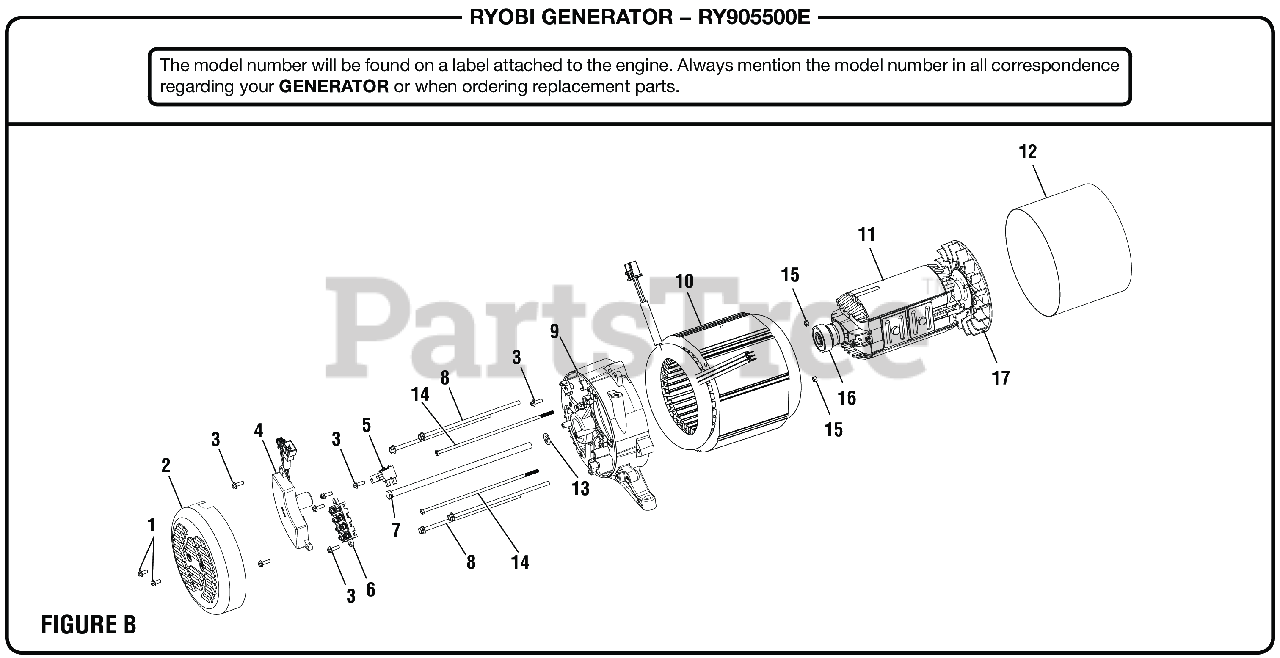

FIGURE B Parts Diagram

  • Title

1

Homelite 660938011

Bolt (M5 x 12 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 660938012

Bolt (M5 x 16 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 290440010

Automatic Voltage Regulator

$85.99

$

Usually ships in 3-7 days

0

5

Homelite 290441005

Brush Assembly 190 mm

$

$

Not available

6

Homelite 290602003

Terminal Block

$12.99

$

Usually ships in 3-7 days

0

7

Homelite 661557026

Rotor Bolt (M8 x 222 mm, Flange Hex Hd.)

$8.49

$

Usually ships in 3-7 days

0

8

Homelite 661603019

Stator Bolt (M6 x 180 mm, Flange Hex Hd.)

$4.99

$

Usually ships in 3-7 days

0

9

Homelite 678289008

Bearing Support

$121.99

$

Usually ships in 3-7 days

0

10

Homelite 310771017

Rotor

$582.99

$

Usually ships in 3-7 days

0

Homelite 310771055

Stator Assembly

$

$

Not available

11

Homelite 310772016

Stator

$481.99

$

Usually ships in 3-7 days

0

Homelite 310772056

Rotor Assembly

$

$

Not available

12

Homelite 638624022

Generator Head Cover

$19.99

$

Usually ships in 3-7 days

0

13

Homelite 638678012

Washer (ID8.4 x OD25.1 x 3t)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 660938029

Bolt (M5 x 200 mm, Hex Hd.)

$4.49

$

Usually ships in 3-7 days

0

15

Homelite 690840002

Hex Nut (M5)

$3.99

$

Usually ships in 3-7 days

0

16

Homelite 681963003

Ball Bearing

$

$

Not available

17

Homelite 307471001

Fan (190 mm)

$

$

Not available
