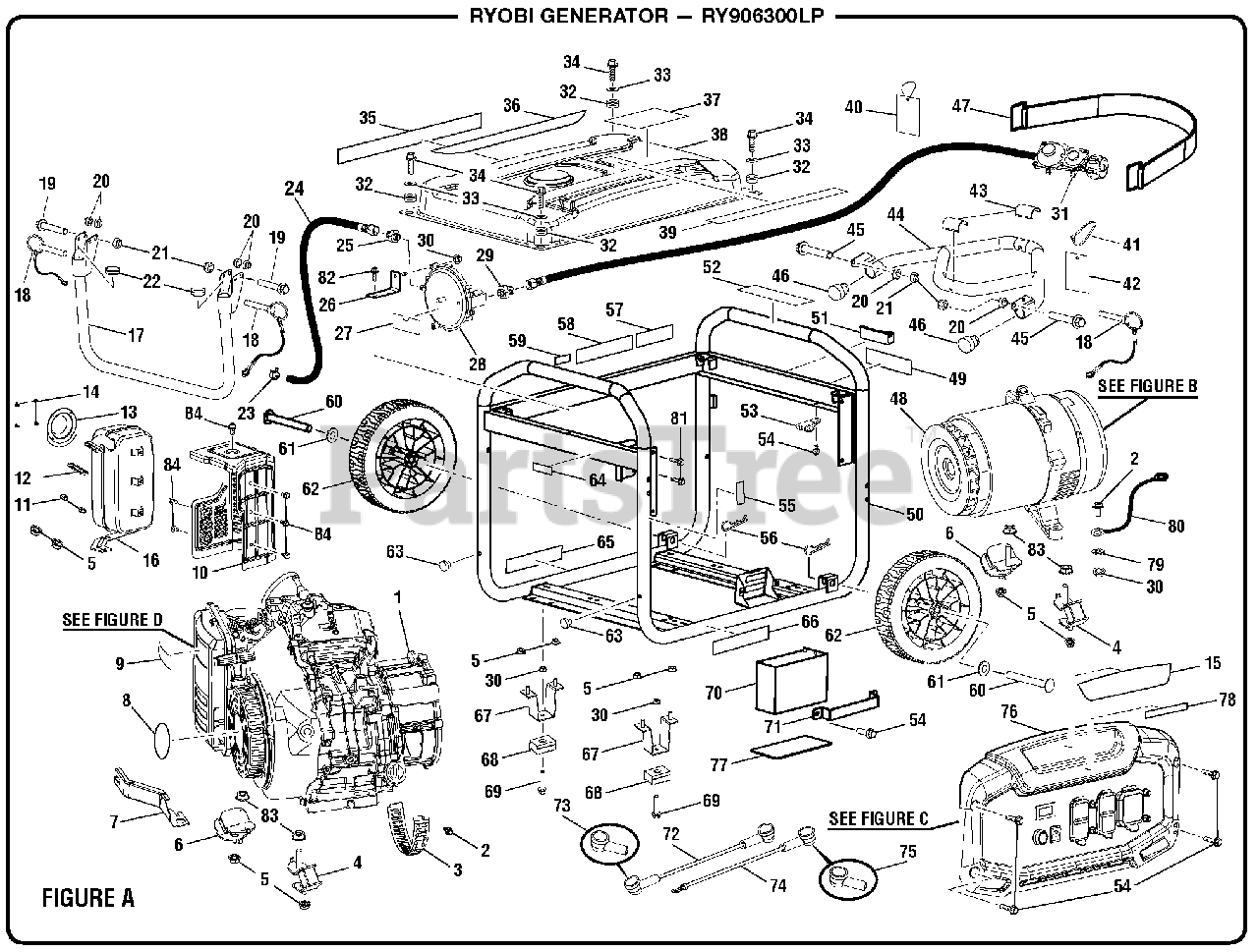

RY 906300 LP (090930326) - Ryobi Digital Inverter Generator, Rev 02 (2018-03) Figure A Parts Diagram

Digital Inverter Generator, Rev 02

Figure A Parts Diagram

  • Title

1

Engine Assembly (Ducar 420cc)

$

$

Not available

2

Homelite D91325

Bolt (M6 x 12 mm)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite D539602

Crank Case Guard Cover

$

$

Not available

4

Homelite 679940005

Small Isolator

$

$

Not available

5

Homelite 678774002

Flange Lock Nut (M8)

$2.49

$

In Stock, Qty 6

0

6

Homelite 679940003

Large Isolator

$14.99

$

Usually ships in 3-7 days

0

7

Homelite D540601

Air Cleaner Bracket

$

$

Not available

8

Homelite 940633049

Engine Recoil Label

$3.99

$

Usually ships in 3-7 days

0

9

Homelite 940647085

Choke Label

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 638497044

Heat Shield

$49.99

$

In Stock, only 1 left!

0

11

Homelite D94206

Lock Washer

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 678728006

Exhaust Gasket

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 638147003

Spark Arrestor Screen

$

$

Not available

14

Homelite 661306001

Screw (8-32 x 3/8 in.)

$3.49

$

Usually ships in 3-7 days

0

15

Homelite 940705386

Performance Label

$13.99

$

Usually ships in 3-7 days

0

16

Homelite 309322041

Muffler

$145.99

$

Usually ships in 3-7 days

0

17

Homelite S526604-017

Handle Assembly

$64.99

$

Usually ships in 3-7 days

0

18

Homelite 310712001

Release Pin

$1.99

$

In Stock, only 4 left!

0

19

Homelite D91352

Bolt (M8 x 50 mm)

$3.49

$

Usually ships in 3-7 days

0

20

Homelite D527605

Bushing

$

$

Not available

21

Homelite 678774003

Lock Nut (M8)

$2.49

$

In Stock, Qty 5

0

22

Homelite D527603

Handle End Cap

$

$

Not available

23

Homelite D599302

LP Hose Clamp

$

$

Not available

24

Homelite 570358190

LPG Hose

$

$

Not available

25

Homelite 308751007

Outlet (Brass Fitting)

$

$

Not available

26

Homelite D541604

Bracket

$

$

Currently unavailable

27

Homelite 940721010

Small Primer Label

$3.99

$

Usually ships in 3-7 days

0

28

Homelite 312752006

Propane Regulator Assembly (Stage 2)

$655.99

$

Usually ships in 3-7 days

0

29

Homelite 308751006

Inlet (Brass Fitting)

$

$

Not available

30

Homelite D90016

Hex Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 312752005

Propane Regulator Assembly (Stage 1,T8)

$194.99

$

Usually ships in 3-7 days

0

32

Homelite 519832003

Fuel Tank Bushing

$3.99

$

Usually ships in 3-7 days

0

33

Homelite D96811

Fuel Tank Washer

$

$

Not available

34

Homelite D91306

Bolt (M6 x 25 mm)

$

$

Not available

35

Homelite 940707051

LP Danger/Warning Label

$3.99

$

Usually ships in 3-7 days

0

36

Homelite 940707107

Danger/Warning Icon Label

$3.99

$

Usually ships in 3-7 days

0

37

Homelite 940515017

CPSC Label

$3.49

$

Usually ships in 3-7 days

0

38

Homelite S700354-057

Fuel Tank Insert

$

$

Not available

39

Homelite 940734172

Quick Start Label

$5.99

$

Usually ships in 3-7 days

0

40

Homelite 940971102

Hang Tag Label Warning w/Icons

$

$

Not available

41

Homelite 930717003

Zip Tie (5.5 in.)

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 940654340

Hang Tag Warning Label

$

$

Not available

43

Homelite D599312

Rubber Flap

$3.99

$

Usually ships in 3-7 days

0

44

Homelite S599313-017

LPG Tank Bracket

$69.99

$

Usually ships in 3-7 days

0

45

Homelite D92028

Screw (Hex. Hd.)

$

$

Currently unavailable

46

Homelite D527602

Tank Bracket Plug

$

$

Currently unavailable

47

Homelite D599310

Tank Strap

$74.99

$

Usually ships in 3-7 days

0

48

Homelite D756313

Gen Head Assembly (See Figure B)

$

$

Currently unavailable

49

Homelite 940513029

Ground Warning Label

$2.49

$

Usually ships in 3-7 days

0

50

Homelite S773130-017

Frame

$222.99

$

Usually ships in 3-7 days

0

51

Homelite D599311

LPG Tank Bumper

$5.49

$

Usually ships in 3-7 days

0

52

Homelite 940974021

Fire Danger Label

$

$

Not available

53

Homelite D94447

Fuel Line Clamp

$3.49

$

Usually ships in 3-7 days

0

54

Homelite D91329

Bolt (M6 x 16 mm)

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 940514005

Lock Pin Label
(Superseded to 940514001)

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 678146002

Hitch Pin

$3.49

$

Usually ships in 3-7 days

0

57

Homelite 940680075

Hot Surface Label (Trilingual)

$

$

Not available

58

Homelite 940974089

Fire Distance Label

$3.49

$

Usually ships in 3-7 days

0

59

Homelite 941486008

Inquires Label (Ryobi)

$2.49

$

Usually ships in 3-7 days

0

60

Homelite 681866002

Washer (M10)

$23.99

$

Usually ships in 3-7 days

0

61

Homelite 638422004

Wheel

$

$

Not available

62

Homelite 308451033

Handle Isolator

$125.99

$

Usually ships in 3-7 days

0

63

Homelite D527401

Large Primer Button Label

$3.49

$

Usually ships in 3-7 days

0

64

Homelite 940721009

Combustion Warning Label

$

$

Not available

65

Homelite 940947016

Check Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 940708019

Frame Support

$3.49

$

Usually ships in 3-7 days

0

67

Homelite S525405-017

Isolation Pad

$12.99

$

Usually ships in 3-7 days

0

68

Homelite D531903

Bolt (M6 x 25 mm)

$3.99

$

Usually ships in 3-7 days

0

69

Homelite D91331

Battery

$1.49

$

Usually ships in 3-7 days

0

70

Homelite 750400010

Battery Bracket

$203.99

$

Usually ships in 3-7 days

0

71

Homelite S542903-017

Red Battery Cable (+)

$3.49

$

Usually ships in 3-7 days

0

72

Homelite D512024

Rubber Boot (Red)

$7.49

$

Usually ships in 3-7 days

0

73

Homelite 570766013

Black Battery Cable (-)

$

$

Not available

74

Homelite D512025

Rubber Boot (Black)

$7.49

$

Usually ships in 3-7 days

0

75

Homelite 570766014

Control Panel Assembly

$3.99

$

Usually ships in 3-7 days

0

76

Homelite D713660

(See Figure C)

$

$

Not available

77

Homelite 570630004

Battery Tray Gasket

$3.49

$

In Stock, only 1 left!

0

78

Homelite 940617179

Electric Start Label

$3.99

$

Usually ships in 3-7 days

0

79

Homelite 673157001

Star Washer

$2.49

$

Usually ships in 3-7 days

0

80

Homelite D544301

Frame Ground Wire

$

$

Not available

81

Homelite D91226

Bolt

$

$

Currently unavailable

82

Homelite D91327

Bolt (M6 x 12 mm)

$

$

Currently unavailable

83

Homelite D90013

Hex Nut (M10)

$

$

Currently unavailable

84

Homelite 660975009

Bolt (M6 x 9 mm, Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

Homelite 901606026

10W-30 Lubricant

Note: Not Shown

$

$

Currently unavailable

Homelite 995000509

Operator's Manual

$

$

Not available

Homelite 995000510

Quick Reference Guide

$6.49

$

Usually ships in 3-7 days

0

Homelite 995000464

Ducar Emissions Insert

$

$

Currently unavailable

Homelite 965001114

Ryobi Registration Card

$

$

Not available

Homelite 120702001

Hardware Kit

$

$
