RY 906500 (090930285) - Ryobi 6500 Watt Inverter Generator, Rev 03 (2019-03) FIGURE D Parts Diagram

6500 Watt Inverter Generator, Rev 03

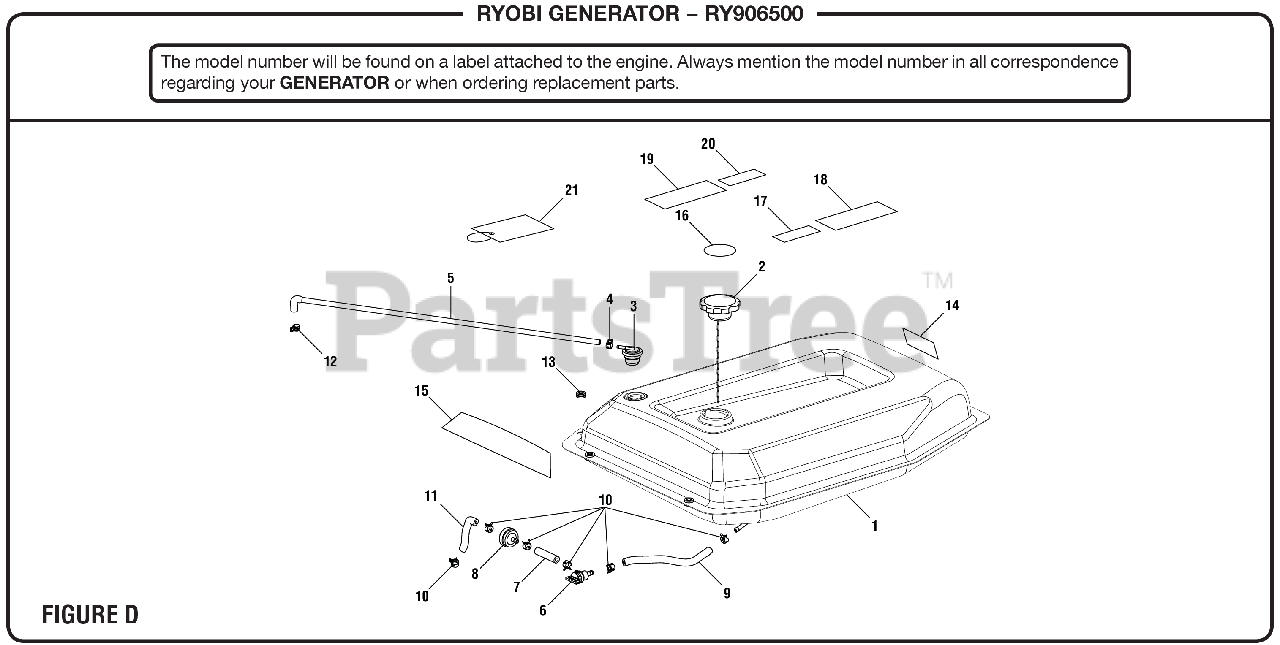

FIGURE D Parts Diagram

  • Title

1

Homelite 310711117

Fuel Tank

$

$

Not available

2

Homelite 310720026

Fuel Cap Assembly

$23.99

$

In Stock, only 1 left!

0

3

Homelite 310854002

Fuel Tank Vent Valve (PS905055SA)

$

$

Not available

4

Homelite 678408014

Fuel Line Clamp (10.3 mm)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 570358105

Vapor Hose (590 mm and 30 mm)

$3.49

$

Usually ships in 3-7 days

0

6

Homelite 308459002

Fuel Shut Off Valve

$19.99

$

In Stock, only 1 left!

0

7

Homelite 570358056

Fuel Hose (55 mm)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 308733008

Fuel Filter Inline (1/4 in.)

$8.49

$

In Stock, Qty 7

0

9

Homelite 570358093

Fuel Hose (175 mm)

$3.49

$

Usually ships in 3-7 days

0

10

Homelite 678408006

Fuel Line Clamp (1/2 in.).

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 570358104

Fuel Hose (185 mm)

$4.49

$

Usually ships in 3-7 days

0

12

Homelite 678409008

Fuel Line Clamp (3/8 in.)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 570358091

Fuel Hose Protector

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 940947003

UL Fire Warning Label Spark Arrestor)

$

$

Not available

15

Homelite 940705327

Logo Label

$4.99

$

Usually ships in 3-7 days

0

16

Homelite 940872022

Remove Cap Fuel Stabilizer Label (English)

$

$

Not available

17

Homelite 940872024

Fuel Stabilizer Label (French/Spanish)

$

$

Not available

18

Homelite 940515016

CPSC (English) Label

$6.99

$

Usually ships in 3-7 days

0

19

Homelite 940654254

Warning Label

$4.99

$

Usually ships in 3-7 days

0

20

Homelite 940872003

No E85 Label

$1.49

$

In Stock, only 2 left!

0

21

Homelite 940971087

Warning Hangtag

$1.49

$

Usually ships in 3-7 days

0
