RY 906500 S (099930624) - Ryobi 6500 Watt Inverter Generator, Rev 02 (2018-02) FIGURE C Parts Diagram

6500 Watt Inverter Generator, Rev 02

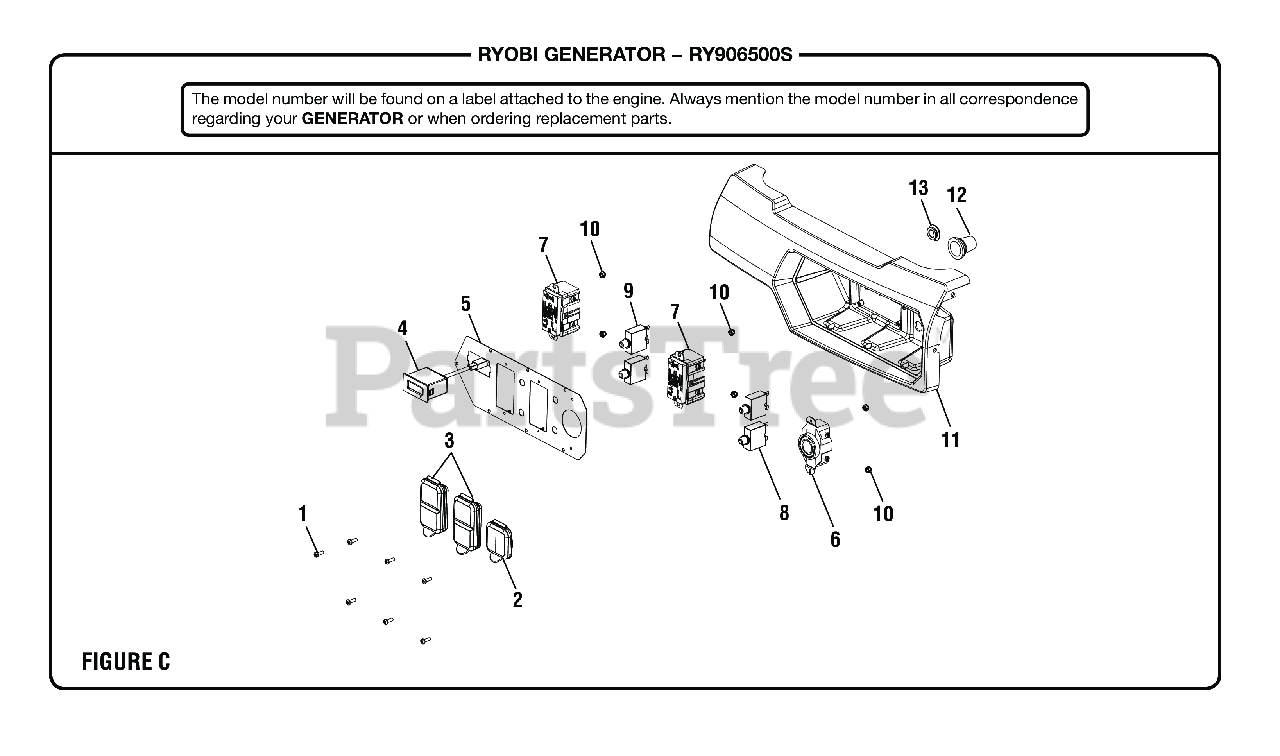

FIGURE C Parts Diagram

  • Title

1

Homelite 660899002

Screw (#8-18 x 1/2 in., T20 Torx Pan Hd.)

$

$

Not available

2

Homelite 570412007

240 Volt ReceptacleRain Cover

$3.99

$

Usually ships in 3-7 days

0

3

Homelite 570412008

120 Volt Receptacle Rain Cover

$7.49

$

Usually ships in 3-7 days

0

4

Homelite 290492005

Digital Display

$51.99

$

Usually ships in 3-7 days

0

5

Homelite 638496041

Front Panel

$17.99

$

Usually ships in 3-7 days

0

6

Homelite 290401004

Twist Lock Recepticle (120/240 Volt, 30 Amp, L14-30)

$17.99

$

In Stock, only 1 left!

0

7

Homelite 290400024

120 Volt Duplex GFCI Receptacle

$73.99

$

In Stock, only 2 left!

0

8

Homelite 780351018

Circuit Breaker (27 Amp)

$28.99

$

Usually ships in 3-7 days

0

9

Homelite 780350001

Circuit Breaker (20 Amp, 125 Volt)

$8.49

$

In Stock, only 1 left!

0

10

Homelite 678827004

Lock Nut (M4)

$

$

Not available

11

Homelite 519815010

Control Box (Back Panel)

$41.99

$

Usually ships in 3-7 days

0

12

Homelite 570766006

Wiring Rubber Boot

$104.99

$

Usually ships in 3-7 days

0

13

Homelite 570766010

Grommet

$

$

Not available
