RY 906500 S (099930624) - Ryobi 6500 Watt Inverter Generator, Rev 04 (2019-05) FIGURE B Parts Diagram

6500 Watt Inverter Generator, Rev 04

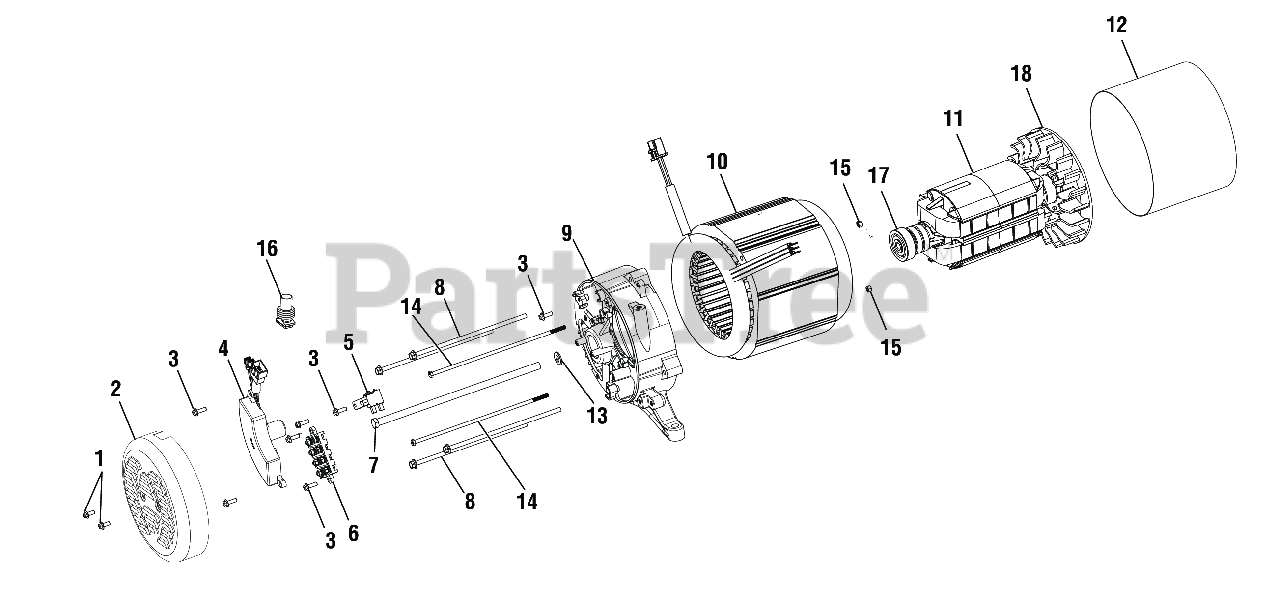

FIGURE B Parts Diagram

  • Title

1

Homelite 660938025

Bolt (M5 x 12 mm, Hex Flange Hd.)

$2.99

$

In Stock, only 3 left!

0

2

Homelite 678296002

Engine Cover

$

$

Not available

3

Homelite 660938024

Bolt (M5 x 16 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 290440010

Automatic Voltage Regulator

$85.99

$

Usually ships in 3-7 days

0

5

Homelite 290441006

Brush Assembly Kit

$11.99

$

Usually ships in 3-7 days

0

6

Homelite 290602006

Terminal Block Assembly

$6.99

$

Usually ships in 3-7 days

0

7

Homelite 661557019

Rotor Bolt (M10 x 272 mm, Hex Hd.)

$8.99

$

Usually ships in 3-7 days

0

8

Homelite 660869009

Bolt (M6 x 187 mm, Flange Hex Hd.)

$

$

Not available

9

Homelite 678289008

Bearing Support

$121.99

$

Usually ships in 3-7 days

0

10

Homelite 310772016

Stator

$481.99

$

Usually ships in 3-7 days

0

11

Homelite 310771017

Rotor

$582.99

$

Usually ships in 3-7 days

0

12

Homelite 638545004

Stator Band (139 mm)

$19.99

$

Usually ships in 3-7 days

0

13

Homelite 638678012

Washer (ID8.4 x OD25.1 x 3t)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 660938023

Bolt (M6 x 224 mm, Hex Hd.)

$

$

Not available

15

Homelite 690840003

Hex Nut (M5)

$

$

Not available

16

Homelite 570766004

Rubber Sleeve

$3.49

$

Usually ships in 3-7 days

0

17

Homelite 681963001

Ball Bearing (190 mm)

$20.99

$

Usually ships in 3-7 days

0

18

Homelite 310757004

Fan

$

$

Not available
