RY 906500 VNM (099930647) - Ryobi 6500 Watt Inverter Generator, Rev 01 (2021-05) FIGURE B Parts Diagram

6500 Watt Inverter Generator, Rev 01

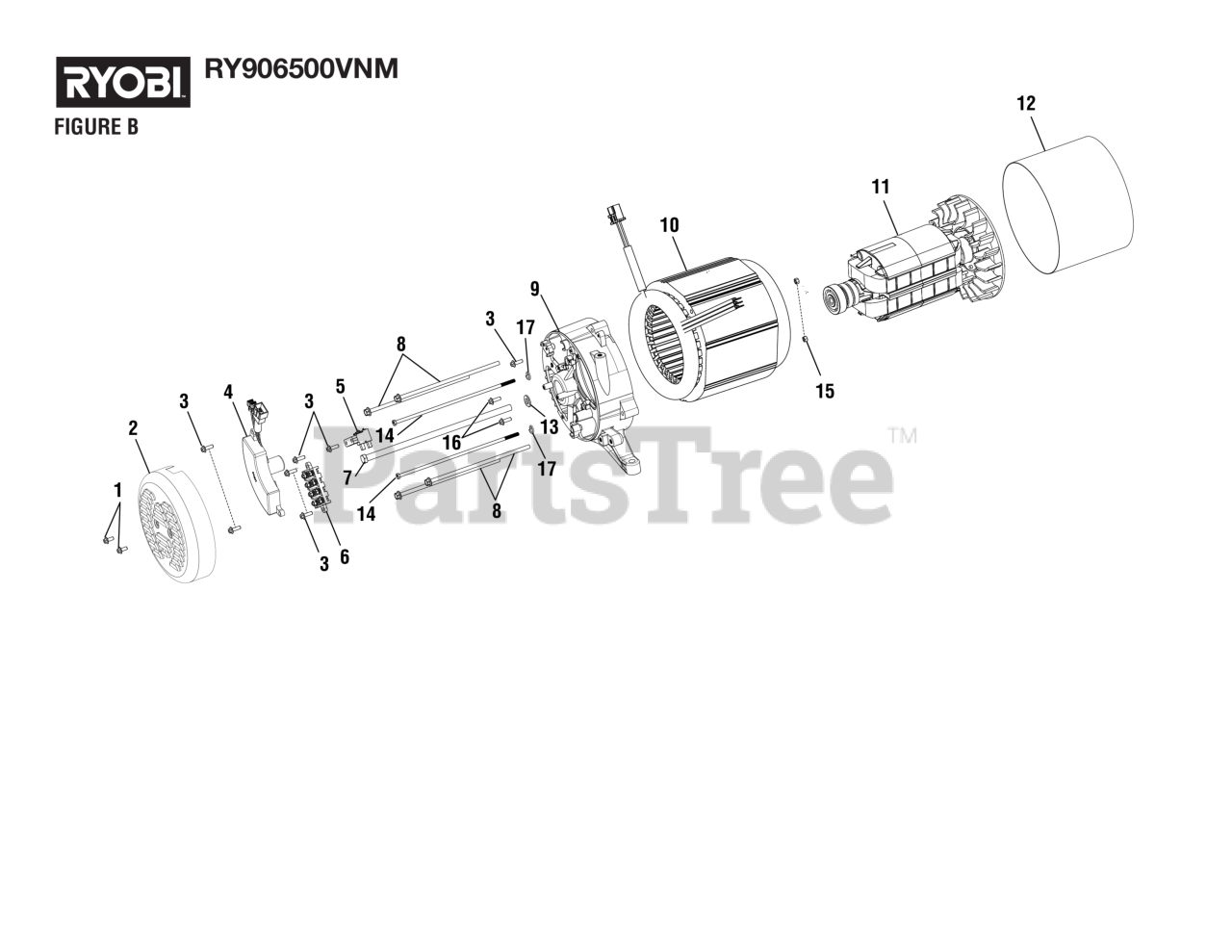

FIGURE B Parts Diagram

  • Title

1

Homelite 660938025

Bolt (M5 x 12 mm, Hex Flange Hd.)

$1.49

$

In Stock, only 3 left!

0

2

Homelite 678296002

Engine Cover

$

$

Not available

3

Homelite 660938024

Bolt (M5 x 16 mm, Hex Flange Hd.)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 290440010

Automatic Voltage Regulator

$42.99

$

Usually ships in 3-7 days

0

5

Homelite 290441006

Brush Assembly Kit

$5.99

$

Usually ships in 3-7 days

0

6

Homelite 290602006

Terminal Block Assembly

$3.49

$

Usually ships in 3-7 days

0

7

Homelite 661557019

Rotor Bolt (M10 x 272 mm, Hex Hd.)

$4.49

$

Usually ships in 3-7 days

0

8

Homelite 660869009

Bolt (M6 x 187 mm, Flange Hex Hd.)

$

$

Not available

9

Homelite 678289008

Bearing Support

$60.99

$

Usually ships in 3-7 days

0

10

Homelite 310772016

Stator

$240.99

$

Usually ships in 3-7 days

0

11

Homelite D249938

Rotor Assembly

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 638545004

Stator Band (139 mm)

$9.99

$

Usually ships in 3-7 days

0

13

Homelite 638549001

Rotor Washer

$

$

Currently unavailable

14

Homelite 660938023

Bolt (M6 x 224 mm, Hex Hd.)

$

$

Not available

15

Homelite 690840003

Hex Nut (M5)

$

$

Not available

16

Homelite 661603001

Bolt (M5 x 10 mm, Flange Hex Hd.)

$

$

Not available

17

Homelite 638623004

Lock Washer (M5)

$

$

Currently unavailable
