RY 907022 FI (090930350) - Ryobi Generator, Rev 02 (2019-02) FIGURE B Parts Diagram

Generator, Rev 02

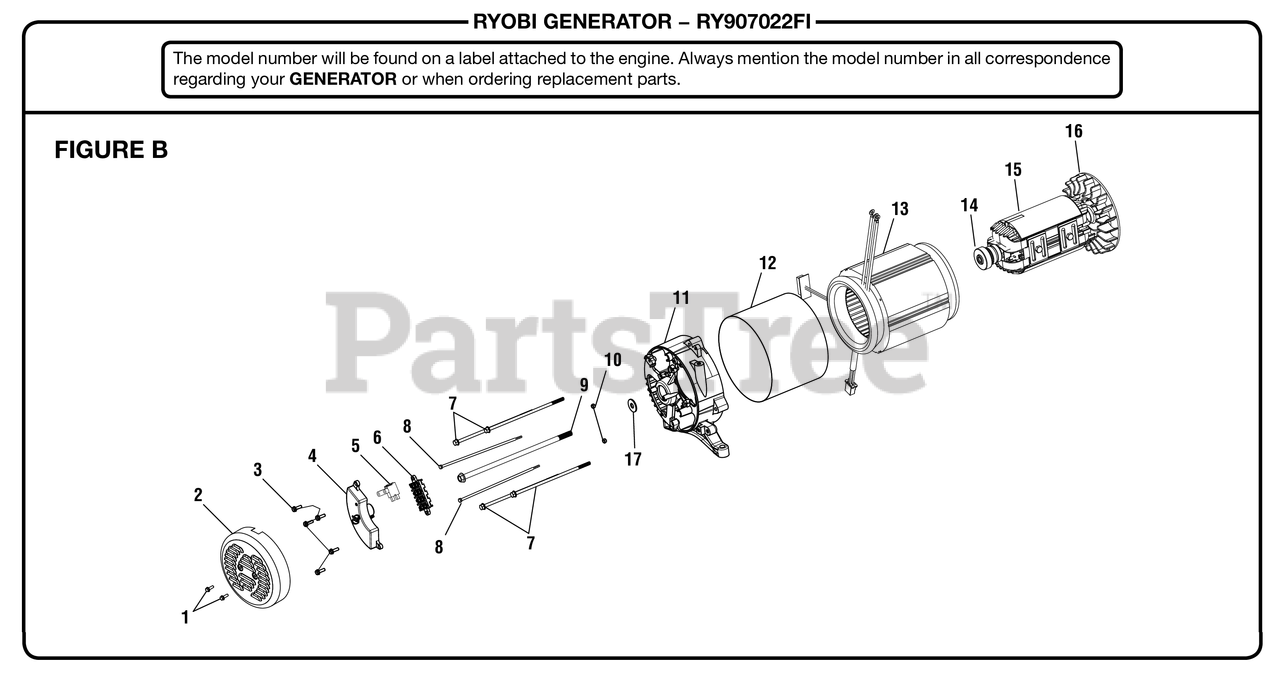

FIGURE B Parts Diagram

  • Title

1

Homelite 660938011

Bolt (M5 x 12 mm, Hex Flange Hd.)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 660938012

Bolt (M5 x 16 mm, Hex Flange Hd.)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 290440008

Automatic Voltage Regulator (5000 Watt)
(Superseded to 290440012)

$

$

Not available

5

Homelite 290441005

Brush Assembly 190 mm

$

$

Not available

6

Homelite 290602003

Terminal Block

$6.49

$

Usually ships in 3-7 days

0

7

Homelite 661603012

Stator Bolt

$

$

Not available

8

Homelite 660938021

Bolt (M5, Hex Hd.)

$

$

Not available

9

Homelite 661557033

Bolt (M10 x 280 mm)

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 690840002

Hex Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 678865003

Bearing Housing'

$

$

Not available

12

Homelite 638624016

Generator Head Cover

$5.49

$

Usually ships in 3-7 days

0

13

Homelite 310771057

Stator Assembly

$164.99

$

Usually ships in 3-7 days

0

14

Homelite 681963001

Ball Bearing (190 mm)

$10.99

$

Usually ships in 3-7 days

0

15

Homelite 310772060

Rotor Assembly

$135.99

$

Usually ships in 3-7 days

0

16

Homelite 307471001

Fan (190 mm)

$

$

Not available

17

Homelite 638623002

Washer (ID10.5 x OD25 x 2t)

$

$

Not available
