RY 908000 E (090930339) - Ryobi Generator, Rev 01 (2018-09) Figure C Parts Diagram

Generator, Rev 01

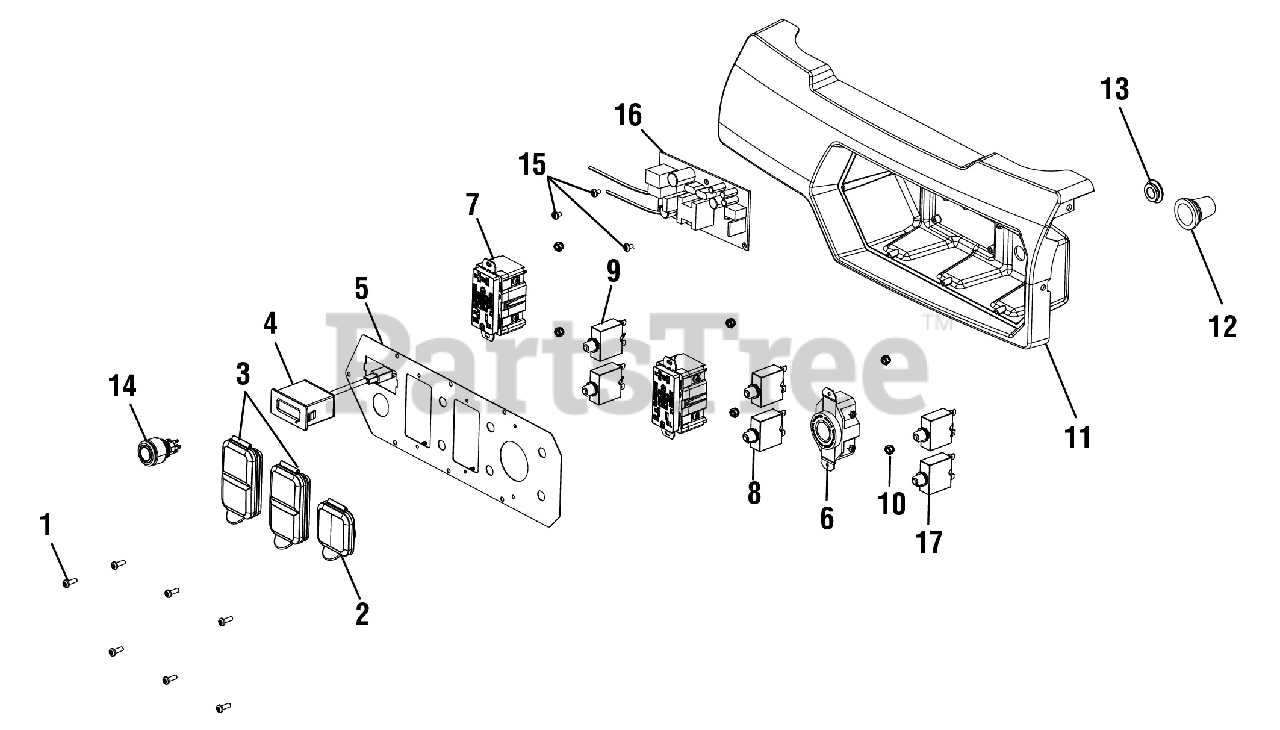

Figure C Parts Diagram

  • Title

1

Homelite 660899002

Screw (#8-18 x 1/2 in., T20 Torx Pan Hd.)

$

$

Not available

2

Homelite 570412007

240 Volt ReceptacleRain Cover

$3.99

$

Usually ships in 3-7 days

0

3

Homelite 570412008

120 Volt Receptacle Rain Cover

$7.49

$

Usually ships in 3-7 days

0

4

Homelite 290492005

Digital Display

$51.99

$

Usually ships in 3-7 days

0

5

Homelite 638496048

Front Panel

$12.99

$

Usually ships in 3-7 days

0

6

Homelite 290401004

Twist Lock Recepticle (120/240 Volt, 30 Amp, L14-30)

$17.99

$

In Stock, only 1 left!

0

7

Homelite 290400023

Duplex Receptacle (120 Volt)

$45.99

$

Usually ships in 3-7 days

0

8

Homelite 780351019

Circuit Breaker (30A)

$5.99

$

Usually ships in 3-7 days

0

9

Homelite 780350009

Circuit Breaker (20 Amp)

$

$

Not available

10

Homelite 678827004

Lock Nut (M4)

$

$

Not available

11

Homelite 519815010

Control Box (Back Panel)

$41.99

$

Usually ships in 3-7 days

0

12

Homelite 570766006

Wiring Rubber Boot

$104.99

$

Usually ships in 3-7 days

0

13

Homelite 570766010

Grommet

$

$

Not available

14

Homelite 270290019

Engine Start Push Switch

$29.99

$

Usually ships in 3-7 days

0

15

Homelite 660923015

Screw (M3 x 5 mm, T10 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 140173027

Battery Charger

$35.99

$

Usually ships in 3-7 days

0

17

Homelite 780351020

Circuit Breaker (33 Amp)

$8.49

$

Usually ships in 3-7 days

0
