RY 908000 E (090930339) - Ryobi Generator, Rev 03 (2019-02) FIGURE B Parts Diagram

Generator, Rev 03

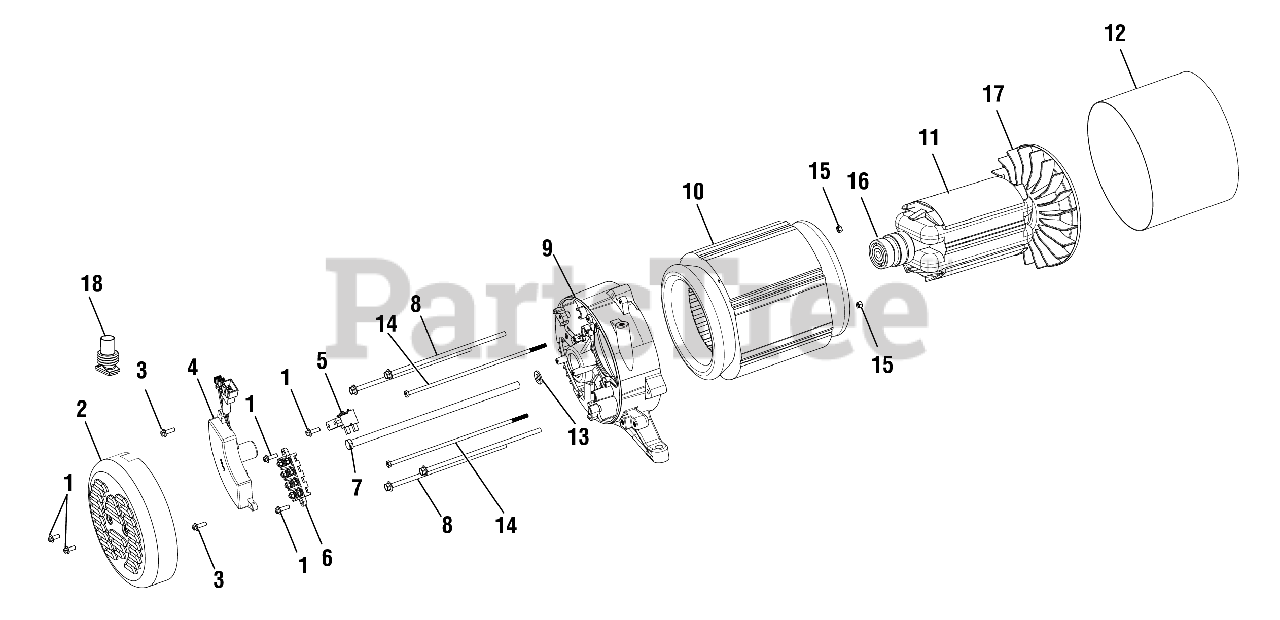

FIGURE B Parts Diagram

  • Title

1

Homelite 660938012

Bolt (M5 x 16 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 660938011

Bolt (M5 x 12 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 290440012

Automatic Voltage Regulator (5000 Watt)

$

$

Not available

5

Homelite 290441005

Brush Assembly 190 mm

$

$

Not available

6

Homelite 290602003

Terminal Block

$12.99

$

Usually ships in 3-7 days

0

7

Homelite 661557033

Bolt (M10 x 280 mm)

$7.49

$

Usually ships in 3-7 days

0

8

Homelite 661603033

Stator Bolt (M6 x 198 mm)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 678289008

Bearing Support

$121.99

$

Usually ships in 3-7 days

0

10

Homelite 310772063

Stator Assembly

$344.99

$

Usually ships in 3-7 days

0

11

Homelite 310771069

Rotor Assembly

$344.99

$

Usually ships in 3-7 days

0

12

Homelite 638624023

Wrapper

$

$

Currently unavailable

13

Homelite 638623002

Washer (ID10.5 x OD25 x 2t)

$

$

Not available

14

Homelite 660938021

Bolt (M5, Hex Hd.)

$

$

Not available

15

Homelite 690840002

Hex Nut (M5)

$3.99

$

Usually ships in 3-7 days

0

16

Homelite 681963001

Ball Bearing (190 mm)

$20.99

$

Usually ships in 3-7 days

0

17

Homelite 307471001

Fan (190 mm)

$

$

Not available

18

Homelite 570766004

Rubber Sleeve

$3.49

$

Usually ships in 3-7 days

0
