RY 9C3501 (090930281) - Ryobi Digital Inverter Generator, Rev 04 (2018-10) Figure A Parts Diagram

Digital Inverter Generator, Rev 04

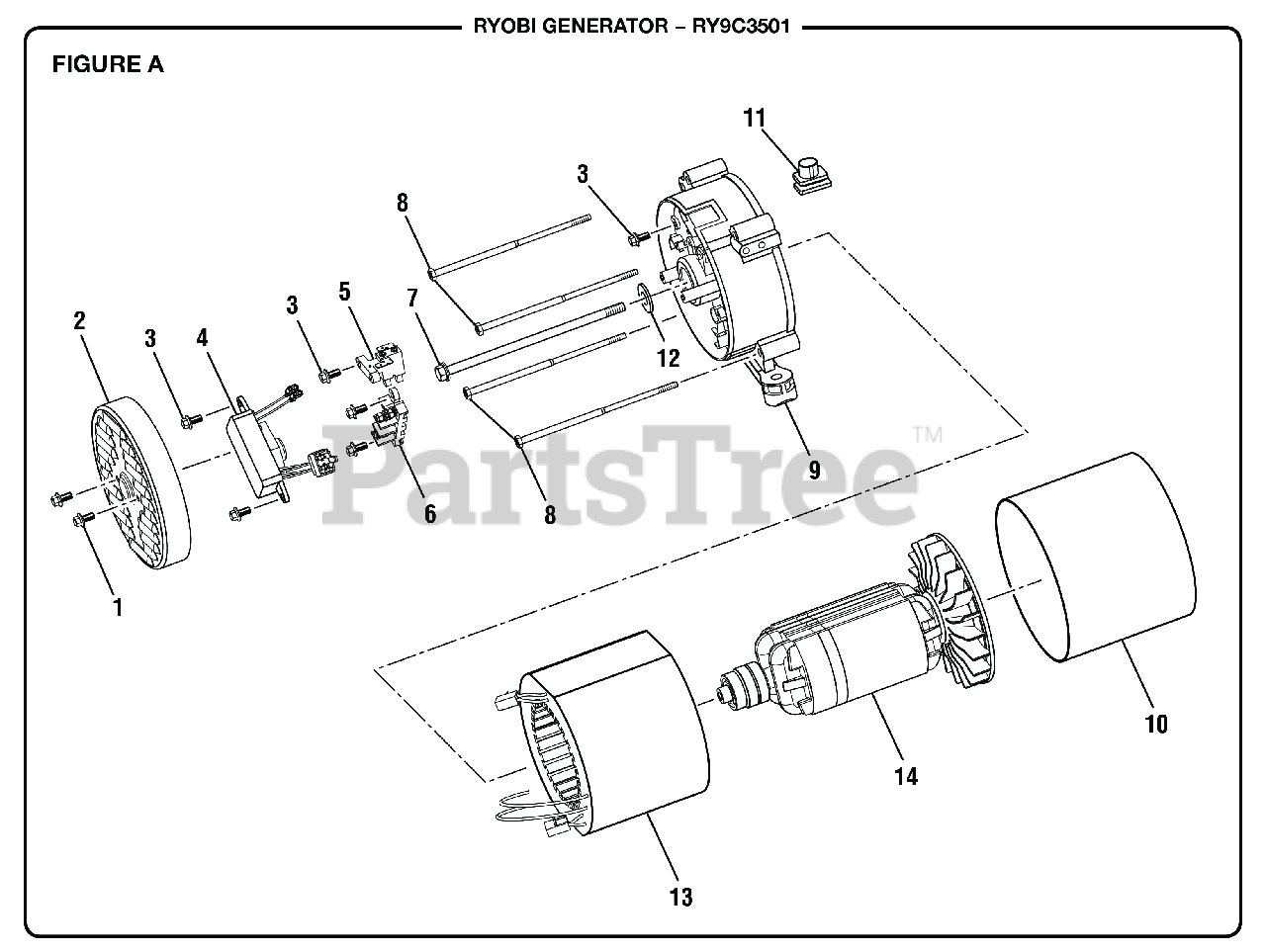

Figure A Parts Diagram

  • Title

1

Homelite 660938025

Bolt (M5 x 12 mm, Hex Flange Hd.)

$2.99

$

In Stock, only 3 left!

0

2

Homelite 678296005

Generator Head Cover

$12.99

$

In Stock, only 2 left!

0

3

Homelite 660938024

Bolt (M5 x 16 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 209440011

Automatic Voltage Regulator

$

$

Currently unavailable

5

Homelite 290441007

Brush Assembly

$10.99

$

Usually ships in 3-7 days

0

6

Homelite 290602007

Terminal Block

$5.49

$

Usually ships in 3-7 days

0

7

Homelite 661557020

Rotor Bolt

$7.99

$

In Stock, only 2 left!

0

8

Homelite 661603015

Stator Bolt

$4.49

$

In Stock, only 4 left!

0

9

Homelite 678865005

Bearing Housing

$91.99

$

Usually ships in 3-7 days

0

10

Homelite 638624010

Generator Head Cover

$14.99

$

Usually ships in 3-7 days

0

11

Homelite 570766008

Rubber Wire Protector

$7.99

$

Usually ships in 3-7 days

0

12

Homelite 638678011

Lock Washer (Rotor)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 310772025

Stator Assembly
(Superseded to 310771054)

$162.99

$

Usually ships in 3-7 days

0

14

Homelite 310771025

Stator Assembly
(Superseded to 310772055)

$254.99

$

Usually ships in 3-7 days

0
