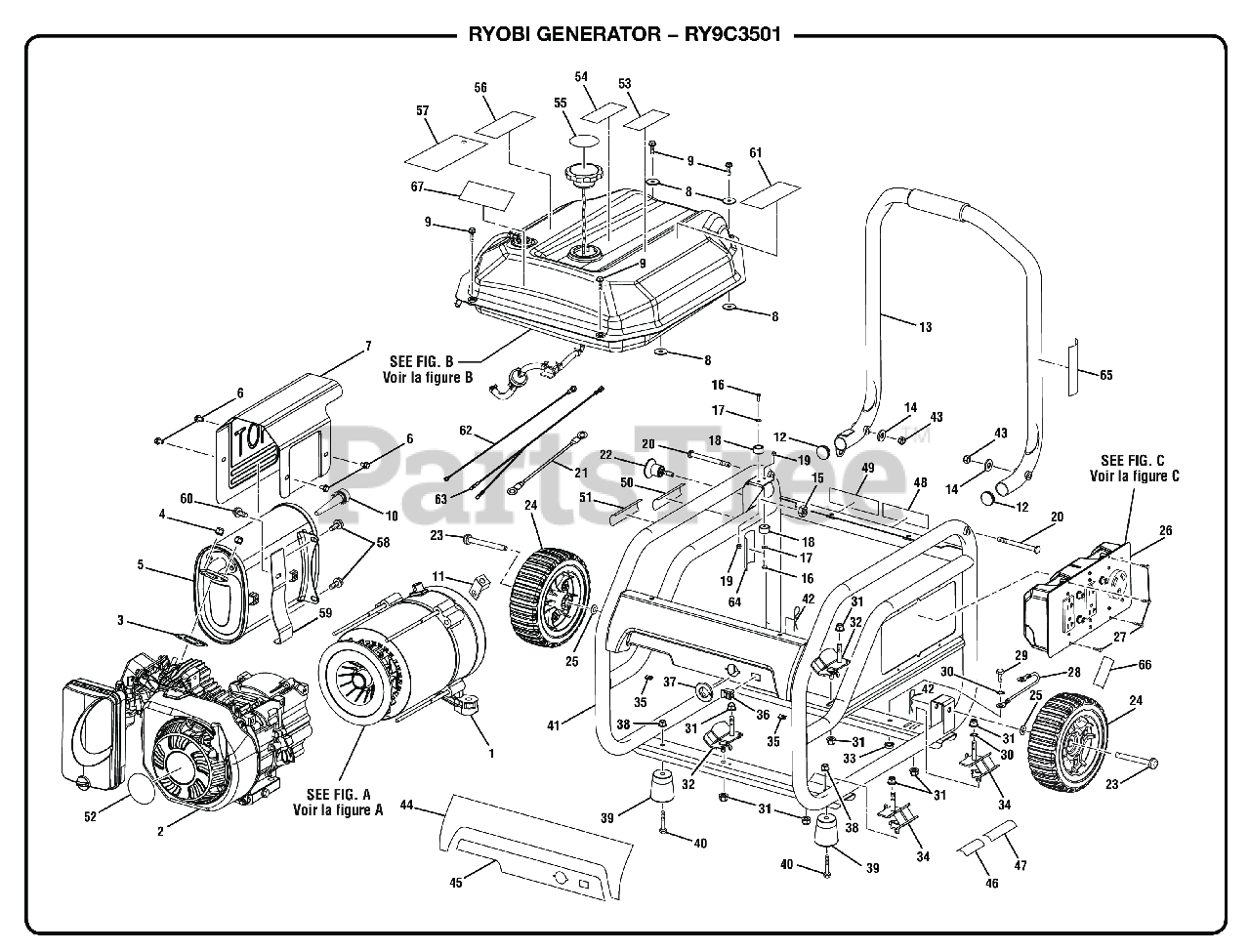

RY 9C3501 (090930281) - Ryobi Digital Inverter Generator, Rev 04 (2018-10) General Assembly Parts Diagram

Digital Inverter Generator, Rev 04

General Assembly Parts Diagram

  • Title

1

Homelite 310227040

Generator Head Assembly

$685.99

$

Usually ships in 3-7 days

0

2

Homelite 309594110

Engine (RATO R210)

$

$

Currently unavailable

3

Homelite 678728005

Muffler Gasket

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 678189001

Lock Nut (M8)

$

$

Not available

5

Homelite 309322021

Muffler

$166.99

$

Usually ships in 3-7 days

0

6

Homelite 660972011

Bolt (M6 x 10 mm, Hex Flange Hd.)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 638497024

Heat Shield

$36.99

$

Usually ships in 3-7 days

0

8

Homelite 638387002

Washer (1/4 in., Type A)

$

$

Not available

9

Homelite 661836004

Bolf (M6 x 20 mm, Hex Washer Hd.)

$

$

Not available

10

Homelite 638147008

Spark Arrestor

$11.99

$

Usually ships in 3-7 days

0

11

Homelite 638703006

Ground Lug

$

$

Not available

12

Homelite 519712002

End Cap

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 310224073

Handle Assembly

$

$

Not available

14

Homelite 638128002

Washer ( 5/16 in.)

$

$

Not available

15

Homelite 678518002

Lock Nut (1/2-20, Hex)

$5.49

$

Usually ships in 3-7 days

0

16

Homelite 661555001

Hex Screw (M4 x 12 mm, Hex Button Hd.)

$

$

Not available

17

Homelite 678600002

Washer (M4)

$

$

Not available

18

Homelite 570712001

Rubber Bumper

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 678610002

Flange Nut (M4 x 0.7 in.)

$

$

Not available

20

Homelite 678522027

Handle Pivot Pin (5/6-18 x 90 mm)

$

$

Not available

21

Homelite 290455001

Bonding Wire

$2.99

$

Usually ships in 3-7 days

0

22

Homelite 308910010

Handle Lock Assembly

$

$

Not available

23

Homelite 681866004

Axle Bolt

$19.99

$

Usually ships in 3-7 days

0

24

Homelite 308451034

Wheel

$86.99

$

Usually ships in 3-7 days

0

25

Homelite 638422004

Washer (OD19.75 x ID10.5 x 1t)

$

$

Not available

26

Homelite 290403031

Control Panel Assembly

$

$

Not available

27

Homelite 660598001

Screw (6-20 x 3/8 in., Phillips Pan Hd.)

$3.49

$

In Stock, only 2 left!

0

28

Homelite 290404001

Assembly, ground wire

$

$

Not available

29

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex. Hd.)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 638704001

Washer (5/16 in., External Star)

$3.49

$

Usually ships in 3-7 days

0

31

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$2.49

$

In Stock, only 1 left!

0

32

Homelite 679940004

Isolator (Left)

$15.99

$

In Stock, only 2 left!

0

33

Homelite 678145002

Flange Nut (5/16-18, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 679940002

Isolator (Right)

$15.99

$

In Stock, only 2 left!

0

35

Homelite 678824003

U-Clip (M6)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 760700002

Switch (Momentary Contact)
(Superseded to 760700001)

$5.49

$

In Stock, only 2 left!

0

37

Homelite 519813017

Fuel Valve Bezel

$3.99

$

In Stock, only 3 left!

0

38

Homelite 678774004

Lock Nut (M8 x 1.25)

$2.49

$

In Stock, only 4 left!

0

39

Homelite 562856010

Foot Assembly

$

$

Not available

40

Homelite 661836007

Bolt (M8 x 1.25 in., Flange Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

41

Homelite 308581024

Carrier Assembly

$462.99

$

Usually ships in 3-7 days

0

42

Homelite 678146002

Hitch Pin (M3)

$3.49

$

Usually ships in 3-7 days

0

43

Homelite 678259003

Lock Nut (5/16-18, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 940752020

Performance Label

$3.99

$

Usually ships in 3-7 days

0

45

Homelite 940734157

Start Label

$

$

Not available

46

Homelite 941486008

Inquires Label (Ryobi)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 940828004

Engine Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 940513029

Ground Warning Label

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 940974090

Fire Distance Label (Eng/Sp)

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 940680027

Hot Surface and Exhaust Label

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 940947003

UL Fire Warning Label Spark Arrestor)

$

$

Not available

52

Homelite 940633043

Recoil Label

$22.99

$

Usually ships in 3-7 days

0

53

Homelite 940515016

CPSC (English) Label

$13.99

$

Usually ships in 3-7 days

0

54

Homelite 940872003

No E85 Label

$2.49

$

In Stock, only 2 left!

0

55

Homelite 940872022

Remove Cap Fuel Stabilizer Label (English)

$

$

Not available

56

Homelite 940654265

Danger Label

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 940971087

Warning Hangtag

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 660973020

Bolt (M8 x 1.25 in., Flange Hex Hd.)

$2.49

$

In Stock, Qty 6

0

59

Homelite 639096002

Muffler Bracket

$9.99

$

Usually ships in 3-7 days

0

60

Homelite 660975005

Bolt (M6 x 14 mm, Flange Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 940974004

Risk of fire danger label

$3.49

$

Usually ships in 3-7 days

0

62

Homelite 290427001

Off Switch Wire Assembly (Black)

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 290405003

Wire Assembly Wire (Green)

$2.99

$

Usually ships in 3-7 days

0

64

Homelite 940758021

Handle Release Label (Eng/Sp)

$11.99

$

Usually ships in 3-7 days

0

65

Homelite 940872023

Remove Cap Fuel Stabilizer Label (Spanish)

$3.99

$

Usually ships in 3-7 days

0

66

Homelite 940705274

Logo Label (Small)

$2.49

$

Usually ships in 3-7 days

0

67

Homelite 940705275

Logo Label (Large)

$2.49

$

Usually ships in 3-7 days

0

Homelite 290428007

Wiring Harness

$

$

Not available

Homelite 991000414

Quick Start Guide

$2.49

$

Usually ships in 3-7 days

0

Homelite 991000413

Operator's Manual

$

$

Not available
