RY AC160 (099749005) - Ryobi 16" Walk-Behind Mower, Rev 01 (2017-07) Figure A Parts Diagram

16" Walk-Behind Mower, Rev 01

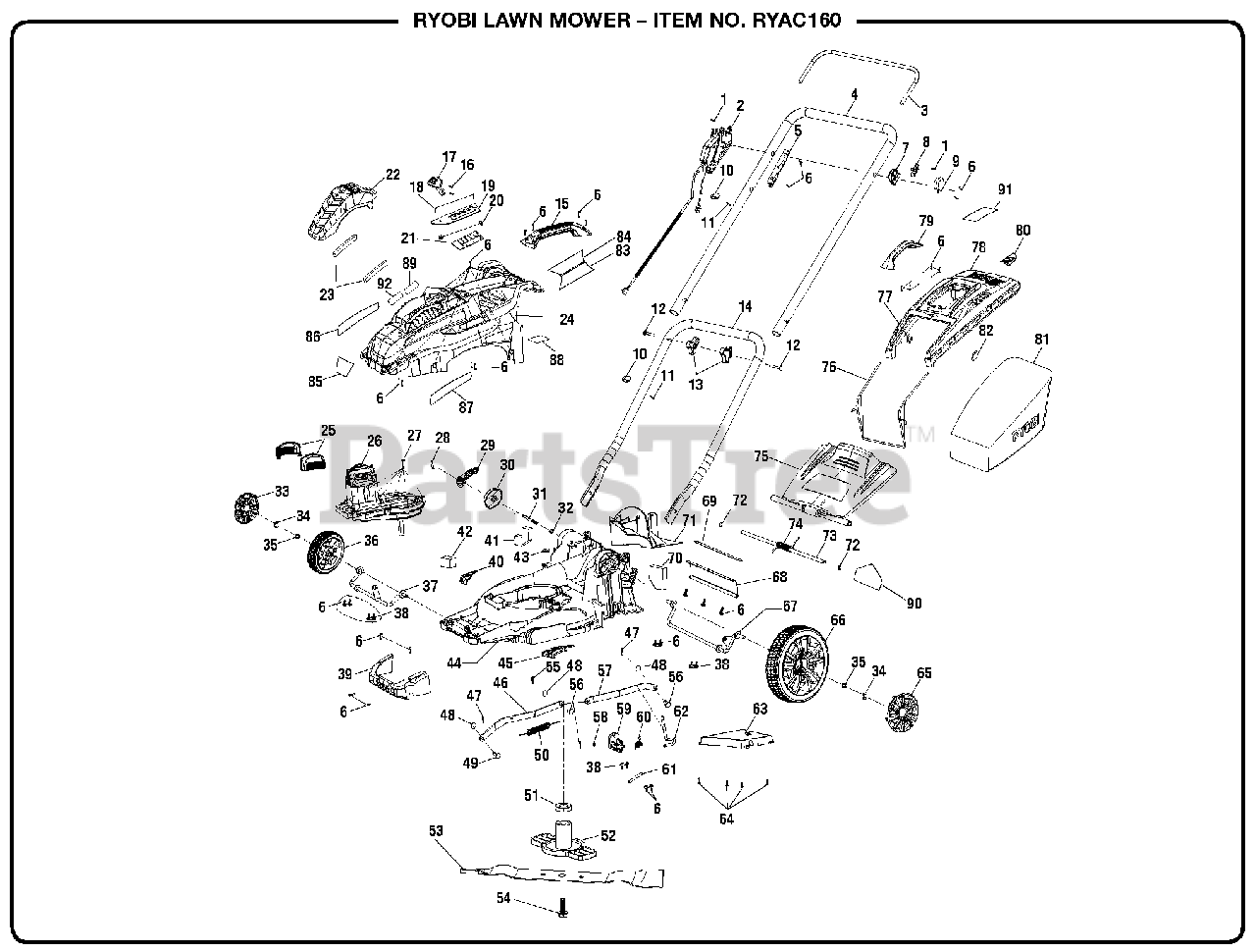

Figure A Parts Diagram

  • Title

1

Homelite 099749005001

Screw (M4 x 8 mm)

$3.49

$

Usually ships in 3-7 days

0

2

Homelite 099749005002

Control Box Assembly

$115.99

$

Usually ships in 3-7 days

0

3

Homelite 099749005003

Power Lever

$4.49

$

Usually ships in 3-7 days

0

4

Homelite 099749005004

Upper Handle Assembly

$67.99

$

Usually ships in 3-7 days

0

5

Homelite 099749005005

Lower Cover (Control Box Assembly)

$3.49

$

Usually ships in 3-7 days

0

6

Homelite 099749005006

Screw (M4.2 x 15 mm)

$3.49

$

Usually ships in 3-7 days

0

7

Homelite 099749005007

Bale Handle Cover (Right)

$

$

Not available

8

Homelite 099749005008

Bale Handle Holder

$3.49

$

Usually ships in 3-7 days

0

9

Homelite 099749005009

Bale Handle Cover (Left)

$

$

Not available

10

Homelite 099749005010

Cord Clamp

$3.49

$

Usually ships in 3-7 days

0

11

Homelite 099749005011

Screw w/Washer (M3 x 16 mm)

$

$

Not available

12

Homelite 099749005012

Bolt (M6 x 50 mm)

$3.99

$

Usually ships in 3-7 days

0

13

Homelite 099749005013

Knob

$4.49

$

Usually ships in 3-7 days

0

14

Homelite 099749005014

Lower Handle

$3.49

$

Usually ships in 3-7 days

0

15

Homelite 099749005015

Handle

$

$

Not available

16

Homelite 099749005016

Screw (M4 x 8)

$

$

Not available

17

Homelite 099749005017

Height Adjustment Handle

$3.99

$

Usually ships in 3-7 days

0

18

Homelite 099749005018

Screw (M5 x 12)

$

$

Not available

19

Homelite 099749005019

Height Adjustment Plate

$

$

Not available

20

Homelite 099749005020

Nut (M5)

$

$

Not available

21

Homelite 099749005021

Dust Gasket

$

$

Not available

22

Homelite 099749005022

Motor Cover

$11.99

$

Usually ships in 3-7 days

0

23

Homelite 099749005023

Foam

$

$

Not available

24

Homelite 099749005024

Deck Cover

$

$

Not available

25

Homelite 099749005025

Dust Proof Motor Cover

$

$

Not available

26

Homelite 099749005026

Motor

$229.99

$

Usually ships in 3-7 days

0

27

Homelite 099749005028

Screw (M4.2 x 18 mm)

$3.49

$

Usually ships in 3-7 days

0

28

Homelite 099749005029

Spring Pin

$3.49

$

Usually ships in 3-7 days

0

29

Homelite 099749005030

Latch

$3.49

$

Usually ships in 3-7 days

0

30

Homelite 099749005031

Base (Lock Handle)

$3.99

$

Usually ships in 3-7 days

0

31

Homelite 099749005032

Quick Lock Press

$3.99

$

Usually ships in 3-7 days

0

32

Homelite 099749005033

Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 099749005034

Front Wheel Cover

$4.49

$

Usually ships in 3-7 days

0

34

Homelite 099749005035

Washer

$3.49

$

Usually ships in 3-7 days

0

35

Homelite 099749005036

E-Ring

$3.49

$

Usually ships in 3-7 days

0

36

Homelite 099749005037

Front Wheel

$6.49

$

Usually ships in 3-7 days

0

37

Homelite 099749005038

Front Wheel Axle

$7.49

$

Usually ships in 3-7 days

0

38

Homelite 099749005039

Axle Pressure Plate

$

$

Not available

39

Homelite 099749005040

Bumper

$

$

Not available

40

Homelite 099749005041

Grass Protector (Right)

$

$

Not available

41

Homelite 099749005042

Foam

$

$

Not available

42

Homelite 099749005043

Foam

$

$

Not available

43

Homelite 099749005044

Cord Clamp

$

$

Not available

44

Homelite 099749005045

Deck

$

$

Not available

45

Homelite 099749005046

Grass Protector (Left)

$

$

Not available

46

Homelite 099749005047

Front Lift Rod

$

$

Not available

47

Homelite 099749005048

Cotter Pin

$

$

Not available

48

Homelite 099749005049

Lock Pin Seat

$

$

Not available

49

Homelite 099749005050

Lock Pin

$

$

Not available

50

Homelite 099749005051

Retention Spring

$

$

Not available

51

Homelite 099749005052

Bearing (6902RS)

$5.99

$

Usually ships in 3-7 days

0

52

Homelite 099749005053

Blade Holder

$5.49

$

In Stock, only 1 left!

0

53

Homelite 099749005054

Blade

$35.99

$

In Stock, only 1 left!

0

54

Homelite 099749005055

Bolt (M8 x 20 mm)

$3.49

$

Usually ships in 3-7 days

0

55

Homelite 099749005056

Cotter Pin

$

$

Not available

56

Homelite 099749005057

Bolt

$

$

Not available

57

Homelite 099749005058

Rear Lift Rod

$

$

Not available

58

Homelite 099749005059

Washer

$

$

Not available

59

Homelite 099749005060

Height Adjustment Bracket

$

$

Not available

60

Homelite 099749005061

Spring (Height Adjustment)

$

$

Not available

61

Homelite 099749005062

Axle (Height Adjustment)

$

$

Not available

62

Homelite 099749005063

Height Adjustment Lever

$

$

Not available

63

Homelite 099749005064

Rear Cover

$

$

Not available

64

Homelite 099749005065

Screw (M4.2 x 12 mm)

$

$

Not available

65

Homelite 099749005066

Rear Wheel Cover

$

$

Not available

66

Homelite 099749005067

Rear Wheel

$7.49

$

Usually ships in 3-7 days

0

67

Homelite 099749005068

Rear Wheel Axle

$

$

Not available

68

Homelite 099749005069

Rear Skirt

$8.49

$

Usually ships in 3-7 days

0

69

Homelite 099749005070

Rear Skirt Plate

$4.49

$

Usually ships in 3-7 days

0

70

Homelite 099749005071

Foam

$

$

Not available

71

Homelite 099749005072

Mulching Plug

$10.99

$

Usually ships in 3-7 days

0

72

Homelite 099749005073

E-Ring

$

$

Not available

73

Homelite 099749005074

Rear Door Axle

$

$

Not available

74

Homelite 099749005075

Torsion Spring (Rear Door)

$

$

Not available

75

Homelite 099749005076

Rear Discharge Door

$16.99

$

Usually ships in 3-7 days

0

76

Homelite 099749005077

Bag Frame

$22.99

$

Usually ships in 3-7 days

0

77

Homelite 099749005078

Bag Cover Plug (Right)

$3.49

$

Usually ships in 3-7 days

0

78

Homelite 099749005079

Bag Cover

$57.99

$

Usually ships in 3-7 days

0

79

Homelite 099749005080

Handle

$3.99

$

Usually ships in 3-7 days

0

80

Homelite 099749005081

Bag Indicator

$3.49

$

Usually ships in 3-7 days

0

81

Homelite 099749005082

Bag

$42.99

$

Usually ships in 3-7 days

0

82

Homelite 099749005083

Bag Cover Plug (Left)

$3.49

$

Usually ships in 3-7 days

0

83

Homelite 940657271

Warning Label

$

$

Not available

84

Homelite 940657272

Warning Icon Label

$

$

Not available

85

Homelite 940705384

Logo Label

$

$

Not available

86

Homelite 940851281

Feature Label

$

$

Not available

87

Homelite 940851282

Feature Label

$

$

Not available

88

Homelite 940851283

Single Point Adjustment Label

$

$

Not available

89

Homelite 941588167

Data Label

$

$

Not available

90

Homelite 941641001

Danger Label

$2.49

$

Usually ships in 3-7 days

0

91

Homelite 940851284

Bagger Top Label

$

$

Not available

92

Homelite 940657273

Danger Cord Warning Label

$

$

Not available

Homelite 099749005027

Belt

Note: Not Shown

$8.99

$

Usually ships in 3-7 days

0

Homelite 995000158

Operator's Manual

$

$

Not available
