RY AC700 (099040001) - Ryobi Cultivator, Electric, Rev 02 (2019-05) General Assembly Parts Diagram

Cultivator, Electric, Rev 02

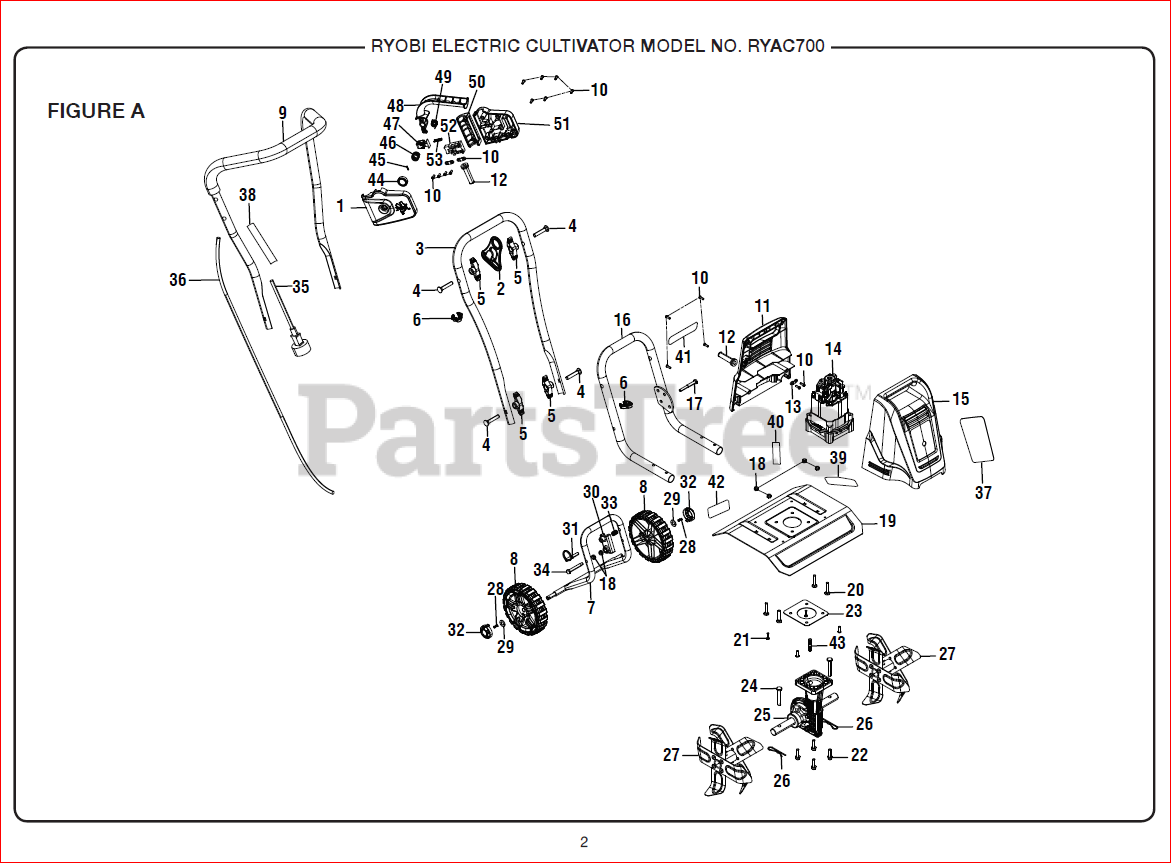

General Assembly Parts Diagram

  • Title

1

Homelite 996808001

Switch Box (Upper)

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 996816001

Cord Retainer

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 996818001

Lower Handle

$15.99

$

Usually ships in 3-7 days

0

4

Homelite 996814001

Carriage Bolt (M8 x 45 mm)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 996815001

Knob

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 996817001

Cord Hook

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 996840001

Wheel Height Adjusting Assembly

$16.99

$

Usually ships in 3-7 days

0

8

Homelite 996912001

Wheel Assembly

$6.99

$

In Stock, only 3 left!

0

9

Homelite 996891001

Upper Handle Assembly

$21.99

$

Usually ships in 3-7 days

0

10

Homelite 996799001

Screw (M4 x 12 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 996827001

Motor Housing (Rear)

$6.49

$

Usually ships in 3-7 days

0

12

Homelite 996798001

Bend Relief

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 996800001

Cord Clamp

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 996906001

Motor Assembly

$150.99

$

Usually ships in 3-7 days

0

15

Homelite 996828001

Motor Housing (Front)

$11.99

$

Usually ships in 3-7 days

0

16

Homelite 996819001

Handle Frame (Lower)

$13.99

$

Usually ships in 3-7 days

0

17

Homelite 996838001

Bolt (M6 x 50 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 996836001

Lock Nut (M6)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 996837001

Blade Shield

$42.99

$

Usually ships in 3-7 days

0

20

Homelite 996849001

Carriage Bolt (M6 x 35 mm)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 996834001

Screw (M5 x 16 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 996854001

Screw (M6 x 25 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 996850001

Seal

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 997121001

Clevis Pin

$1.49

$

In Stock, only 3 left!

0

25

Homelite 996851001

Transmission Assembly

$103.99

$

Usually ships in 3-7 days

0

26

Homelite 997122001

Cotter Pin

$1.49

$

In Stock, only 1 left!

0

27

Homelite 996902001

Blade Assembly

$29.99

$

In Stock, only 1 left!

0

28

Homelite 996847001

Steel Hook

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 996903001

Washer (ID10 x OD18 x 1.5t)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 996841001

Angle Adjustment Plate

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 997120001

Lock Pin

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 996848001

Wheel Hub

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 996842001

Compression Spring (Pulling Rod)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 996839001

Bolt (M6 x 50 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 996796001

Power Cord w/Plug

$5.99

$

Usually ships in 3-7 days

0

36

Homelite 996797001

Power Cord

$8.99

$

Usually ships in 3-7 days

0

37

Homelite 941020015

Logo Label

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 941021016

Icon Warning Label

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 940851447

Warning Label (French/Spanish)

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 941021018

No Hands/No Feet Label

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 941020016

Data Warning Label

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 941020018

Wheel Adjustment Label

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 996932001

Flex Shaft

$2.99

$

Usually ships in 3-7 days

0

44

Homelite 996810001

Switch Button

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 996811001

Pin

$1.49

$

Usually ships in 3-7 days

0

46

Homelite 996809001

Compression Spring (Switch Button)

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 996806001

Switch Push Rod

$1.49

$

In Stock, Qty 7

0

48

Homelite 996804001

Lever

$1.49

$

Usually ships in 3-7 days

0

49

Homelite 996803001

Torsion Spring (Trigger Lever)

$1.49

$

In Stock, Qty 6

0

50

Homelite 996801001

Handle Fixing Plate

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 996802001

Switch Box (Lower)

$2.99

$

Usually ships in 3-7 days

0

52

Homelite 996807001

Switch

$7.49

$

Usually ships in 3-7 days

0

53

Homelite 996805001

Compression Spring (Switch Push Rod)

$1.49

$

In Stock, only 4 left!

0

Homelite 995000656

Operator's Manual

Note: Not Shown

$

$

Not available
