RY AC802 - Ryobi Snow Blower General Assembly Parts Diagram

Snow Blower

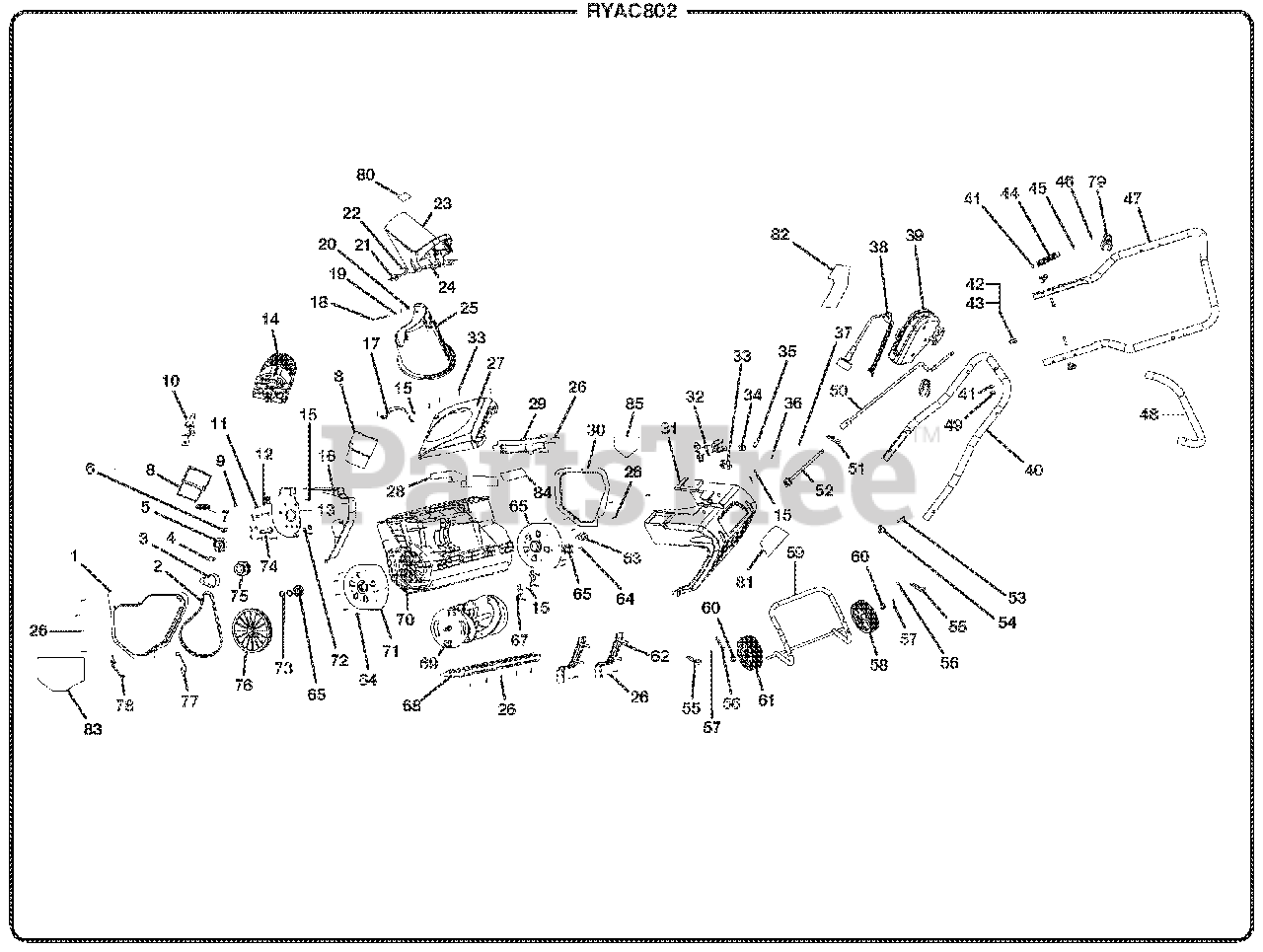

General Assembly Parts Diagram

  • Title

1

Homelite 099733001001

Side Plate (Left)

$

$

Not available

2

Homelite 099733001002

Belt (Large)

$

$

Not available

3

Homelite 099733001003

Belt (Small)

$

$

Not available

4

Homelite 099733001004

Shaft (Tension Wheel)

$

$

Not available

5

Homelite 099733001005

Bearing (5202)

$

$

Not available

6

Homelite 099733001006

Shaft.

$

$

Not available

7

Homelite 099733001007

Spring

$

$

Not available

8

Homelite 099733001008

Vent Cover

$

$

Not available

9

Homelite 099733001009

Nut (M6)

$

$

Not available

10

Homelite 099733001010

Bracket

$

$

Not available

11

Homelite 099733001011

Bolt (M5 x 15 mm)

$

$

Not available

12

Homelite 099733001012

Washer (M5)

$

$

Not available

13

Homelite 099733001013

Motor Support Bracket

$

$

Not available

14

Homelite 099733001014

Motor Assembly

$

$

Not available

15

Homelite 099733001015

Screw (M4 x 16 mm)

$

$

Not available

16

Homelite 099733001016

Bracket

$

$

Not available

17

Homelite 099733001017

Motor Clip

$

$

Not available

18

Homelite 099733001018

Bolt (M3.5 x 110 mm)

$

$

Not available

19

Homelite 099733001019

Washer (M3.5)

$

$

Not available

20

Homelite 099733001020

Nut (M3.5)

$

$

Not available

21

Homelite 099733001021

Knob

$

$

Not available

22

Homelite 099733001022

Washer (M6)

$

$

Not available

23

Homelite 099733001023

Chute

$

$

Not available

24

Homelite 099733001024

Bolt (M6 x 22 mm)

$

$

Not available

25

Homelite 099733001025

Discharge Chute

$

$

Not available

26

Homelite 099733001026

Screw (M4.8 x 12 mm)

$

$

Not available

27

Homelite 099733001027

Outlet Cover

$

$

Not available

28

Homelite 099733001028

Water Holder

$

$

Not available

29

Homelite 099733001029

Inlet Cover

$

$

Not available

30

Homelite 099733001030

Side Cover (Right)

$

$

Not available

31

Homelite 099733001031

Rear Housing

$

$

Not available

32

Homelite 099733001032

Rotating Board

$

$

Not available

33

Homelite 099733001033

Plate

$

$

Not available

34

Homelite 099733001034

Washer

$

$

Not available

35

Homelite 099733001035

Pin

$

$

Not available

36

Homelite 099733001036

Screw (M4 x 30 mm)

$

$

Not available

37

Homelite 099733001037

Nut (M4)

$

$

Not available

38

Homelite 099733001038

Power Cord

$

$

Not available

39

Homelite 099733001039

Switch Box.

$

$

Not available

40

Homelite 099733001040

Handle (Middle)

$

$

Not available

41

Homelite 099733001041

Washer (M8)

$

$

Not available

42

Homelite 099733001042

Screw (M8)

$

$

Not available

43

Homelite 099733001043

Axle Rubber

$

$

Not available

44

Homelite 099733001044

Handle

$

$

Not available

45

Homelite 099733001045

Washer (M5)

$

$

Not available

46

Homelite 099733001046

Hitch Pin

$

$

Not available

47

Homelite 099733001047

Handle (Upper)

$

$

Not available

48

Homelite 099733001048

Grip

$

$

Not available

49

Homelite 099733001049

Nut (M8)

$

$

Not available

50

Homelite 099733001050

Rear Rod

$

$

Not available

51

Homelite 099733001051

Hitch Pin

$

$

Not available

52

Homelite 099733001052

Chute Rod

$

$

Not available

53

Homelite 099733001053

Bolt (M8 x 50 mm)

$

$

Not available

54

Homelite 099733001054

Knob

$

$

Not available

55

Homelite 099733001055

Pin

$

$

Not available

56

Homelite 099733001056

Wheel Cap

$

$

Not available

57

Homelite 099733001057

Washer (ID13.5 x 1.5t)

$

$

Not available

58

Homelite 099733001058

Wheel (Right)

$

$

Not available

59

Homelite 099733001059

Lower Handle

$

$

Not available

60

Homelite 099733001060

Rubber

$

$

Not available

61

Homelite 099733001061

Wheel (Left)

$

$

Not available

62

Homelite 099733001062

Bracket (Front Housing)

$

$

Not available

63

Homelite 099733001063

Axle

$

$

Not available

64

Homelite 099733001064

Screw (M4.8 x 8 mm)

$

$

Not available

65

Homelite 099733001065

Bearing (6002-RS)

$

$

Not available

66

Homelite 099733001066

Support (Right)

$

$

Not available

67

Homelite 099733001067

Wire Clamp

$

$

Not available

68

Homelite 099733001068

Scraper

$

$

Not available

69

Homelite 099733001069

Auger

$

$

Not available

70

Homelite 099733001070

Front Cover

$

$

Not available

71

Homelite 099733001071

Support (Left)

$

$

Not available

72

Homelite 099733001072

Nut (M8)

$

$

Not available

73

Homelite 099733001073

Washer (OD24 x ID15.4 x 1.7t)

$

$

Not available

74

Homelite 099733001074

Pin

$

$

Not available

75

Homelite 099733001075

Small Pulley

$

$

Not available

76

Homelite 099733001076

Pulley

$

$

Not available

77

Homelite 099733001077

Left Clip

$

$

Not available

78

Homelite 099733001078

Right Clip

$

$

Not available

79

Homelite 099733001079

Wire Clip.

$

$

Not available

80

Homelite 940657084

Chute Icon Label

$

$

Not available

81

Homelite 940657085

Data/Warning Label

$

$

Not available

82

Homelite 940851020

Starting Instructions/ Logo Label

$

$

Not available

83

Homelite 940851021

Performance/Logo Label

$

$

Not available

84

Homelite 910705246

Logo Label

$

$

Not available

85

Homelite 941641001

Danger Label (No Hands/Feet)

$2.49

$

Usually ships in 3-7 days

0

Homelite 991000139

Operator's Manual

Note: Not Shown

$

$

Not available
