RY AHT99 (090074012) - Ryobi Expand-It Hedge Trimmer Attachment General Assembly Parts Diagram

Expand-It Hedge Trimmer Attachment

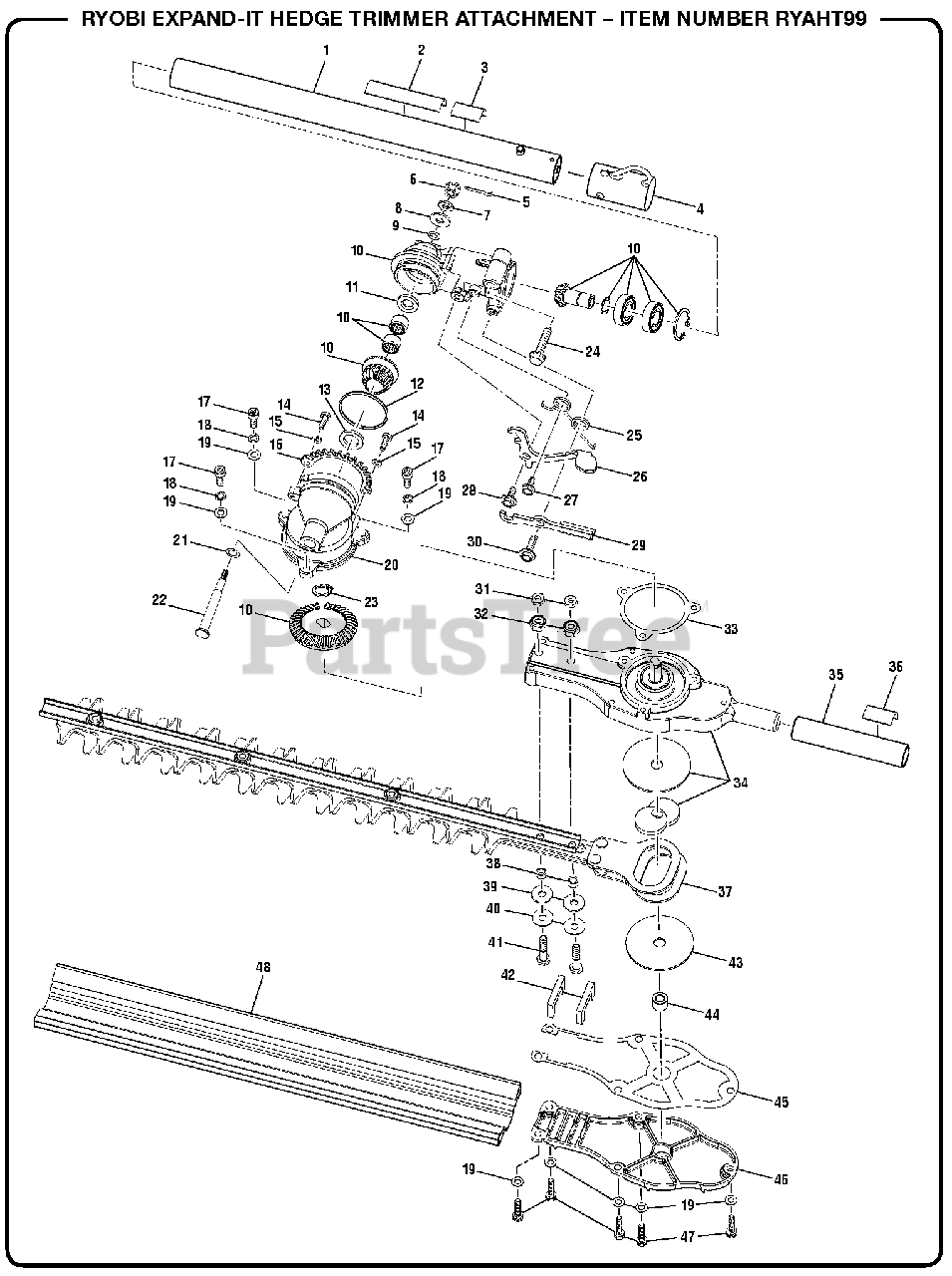

General Assembly Parts Diagram

  • Title

1

Homelite 308554012

Lower Drive Shaft Assembly

Note: (Inc. Key Nos. 2 and 4)

$

$

Not available

2

Homelite 940964010

Warning Label

$

$

Not available

3

Homelite 940705036

Logo Label

$

$

Not available

4

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0

5

Homelite 678279001

Cotter Pin

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 678278001

Castle Nut

$

$

Not available

7

Homelite 678433004

Spring Washer

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 638098005

Washer

$

$

Not available

9

Homelite 570663002

"O" Ring

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 311667002

Gear Assembly

Note: (Inc. Key No. 11)

$41.99

$

Usually ships in 3-7 days

0

11

Homelite 678288001

Washer

$

$

Not available

12

Homelite 570644002

"O" Ring

$

$

Currently unavailable

13

Homelite 650043001

Washer

$

$

Not available

14

Homelite 660925003

M4 Screw

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 650049001

Spring Washer

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 640081001

Ratchet Wheel

$

$

Not available

17

Homelite 660901001

Bolt (M5 x 14 mm)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 678284001

Lock Washer (5 mm)
(Superseded to 099078001031)

$

$

Not available

19

Homelite 678287001

Washer (OD9.8 x ID5.3 x 0.8t)

$

$

Not available

20

Homelite 640082001

Gear Case

$

$

Not available

21

Homelite 901340002

Paper Seal

$

$

Not available

22

Homelite 620512001

Shaft

$

$

Not available

23

Homelite 678580002

C Ring

$

$

Not available

24

Homelite 660642001

Screw (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 638247001

Torsion Spring

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 638248002

Adjustment Spring

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 660846002

Screw (10-24 x 7/16 in. T.F.)

$

$

Not available

28

Homelite 660679002

Screw (M5 x 8.5 mm, Hex. Hd.)

$

$

Not available

29

Homelite 638257002

Lock Cover

$

$

Not available

30

Homelite 660939002

Screw (M5 x 15 mm, Hex. Hd.)

$

$

Not available

31

Homelite 678820002

Hex Nut (M6)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 678490002

Lock Nut (M6)

$1.49

$

In Stock, only 4 left!

0

33

Homelite 901362001

Gasket

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 311667001

Gear Case

Note: (Inc. Key No. 23)

$24.99

$

Usually ships in 3-7 days

0

35

Homelite 311509002

Handle

Note: (Inc. Key No. 36)

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 940964011

Hot Surface Label

$

$

Not available

37

Homelite 308548031

Blade Assembly

$47.99

$

Usually ships in 3-7 days

0

38

Homelite 638668001

Spacer

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 678587001

Washer (OD16 x ID6.8 x 1.5t)

$1.49

$

In Stock, Qty 5

0

40

Homelite 678433001

Washer (Bellville)

$

$

Not available

41

Homelite 660903002

Bolt (M6 x 32 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 901665002

Felt Seal

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 650044001

Blade Washer

$

$

Not available

44

Homelite 638383007

Bushing

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 901659001

Gasket

$1.49

$

Usually ships in 3-7 days

0

46

Homelite 640110005

Gear Box Cover

$7.99

$

Usually ships in 3-7 days

0

47

Homelite 660900001

Screw (M5 x 22.8 mm)

$

$

Not available

48

Homelite 518921004

Scabbard

$2.99

$

Usually ships in 3-7 days

0

Homelite 991000571

Operator's Manual

Note: NOT SHOWN

$

$

Not available
