RY AXA22 (090249002) - Ryobi Expand-it Axial Blower, Rev 03 (2020-04) General Assembly Parts Diagram

Expand-it Axial Blower, Rev 03

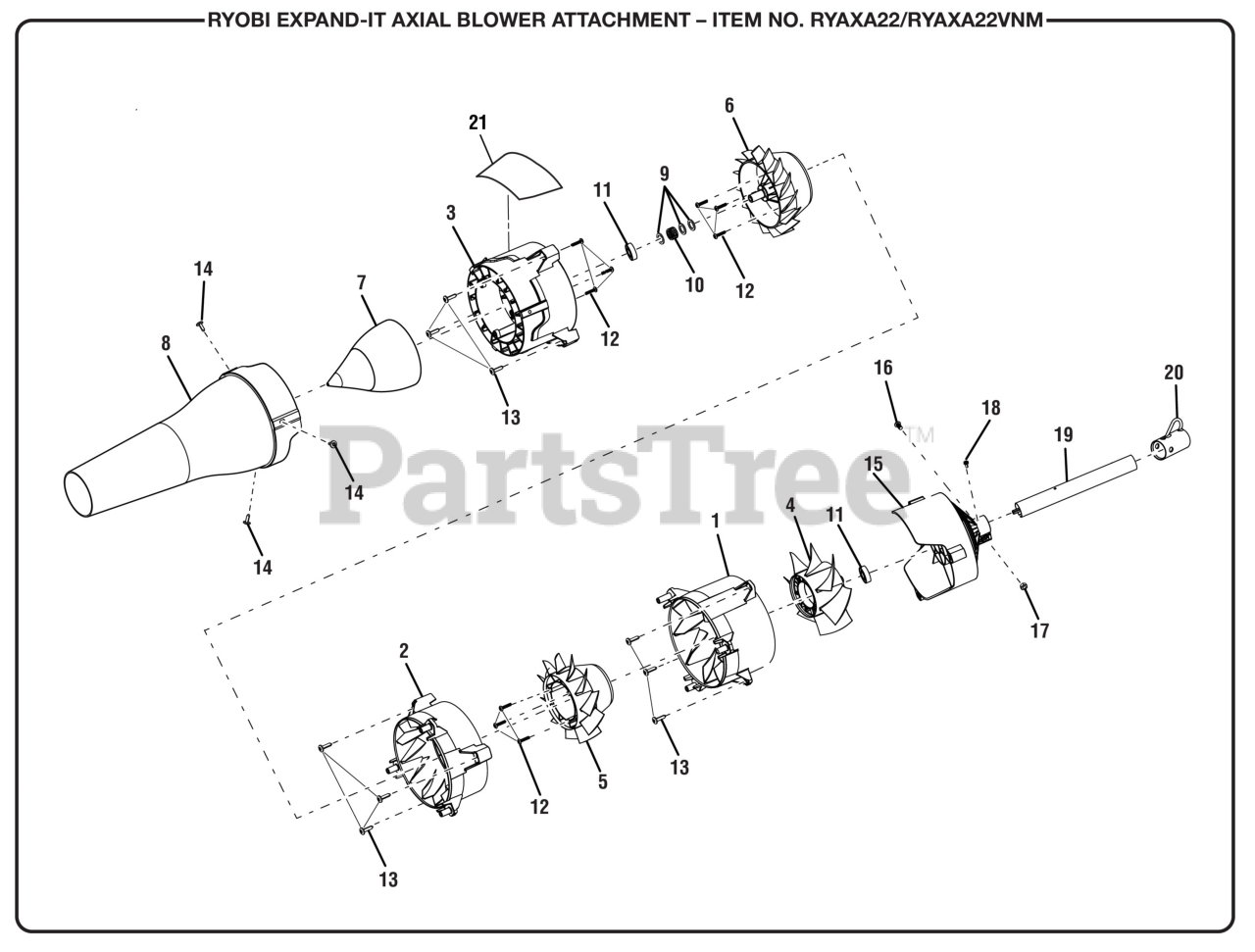

General Assembly Parts Diagram

  • Title

1

Homelite 529727002

Axial Stator (Stage One)

$27.99

$

Usually ships in 3-7 days

0

2

Homelite 529728002

Axial Stator (Stage Two)

$21.99

$

Usually ships in 3-7 days

0

3

Homelite 316454001

Axial Stator (Stage Three, Inc. Key No. 21)

$41.99

$

Usually ships in 3-7 days

0

4

Homelite 531249001

Axial Fan (Stage One)

$28.99

$

Usually ships in 3-7 days

0

5

Homelite 529731001

Axial Fan (Stage Two)

$18.99

$

In Stock, only 3 left!

0

6

Homelite 529732001

Axial Fan (Stage Three)

$20.99

$

In Stock, only 3 left!

0

7

Homelite 529734001

Reducer Cone

$6.49

$

Usually ships in 3-7 days

0

8

Homelite 531918001

Reducer Nozzle

$13.99

$

Usually ships in 3-7 days

0

9

Homelite 637311001

Washer (OD18 x ID12.15 x 1.5t)

$2.49

$

In Stock, only 2 left!

0

10

Homelite 635959001

Wavy Spring (ID6.51 x HGT9.52)

$3.49

$

In Stock, only 2 left!

0

11

Homelite 690697001

Ball Bearing (6001-zz)

$3.99

$

In Stock, only 1 left!

0

12

Homelite 660563001

Screw (M4 x 1.41 mm x 18 mm, T20 Torx Pan Hd. T.F)
(Superseded to 660734001)

$2.49

$

In Stock, only 3 left!

0

13

Homelite 660629005

Screw (10-14 x 19 mm, T25 Torx Truss Pan Hd. T.F.)

$2.49

$

In Stock, only 4 left!

0

14

Homelite 660621001

Vacuum Tube Screw (10-14 x 1/2 in., T25 Torx Truss Hd. T.F.)
(Superseded to 82632)

$2.49

$

In Stock, Qty 9

0

15

Homelite 529735002

Intake

$28.99

$

Usually ships in 3-7 days

0

16

Homelite 660697003

Screw (M6 x 12 mm, T27 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 678029002

Hex Nut (M6.3 x 1)

$2.49

$

In Stock, Qty 5

0

18

Homelite 660925011

Screw (M4 x 8 mm, T25 Torx Pan Hd. T.F.)

$2.49

$

In Stock, Qty 6

0

19

Homelite 308893005

Boom Assembly

$21.99

$

Usually ships in 3-7 days

0

20

Homelite 518019004

Hanger Cap

$2.49

$

In Stock, only 3 left!

0

21

Homelite 940657227

Safety Icon Label

$

$

Not available

Homelite 991000969

Operator's Manual

Note: NOT SHOWN

$

$

Not available
