RY BRC77 (090109015) - Ryobi Expand-It Blower Attachment, Rev 04 (2021-08) General Assembly Parts Diagram

Expand-It Blower Attachment, Rev 04

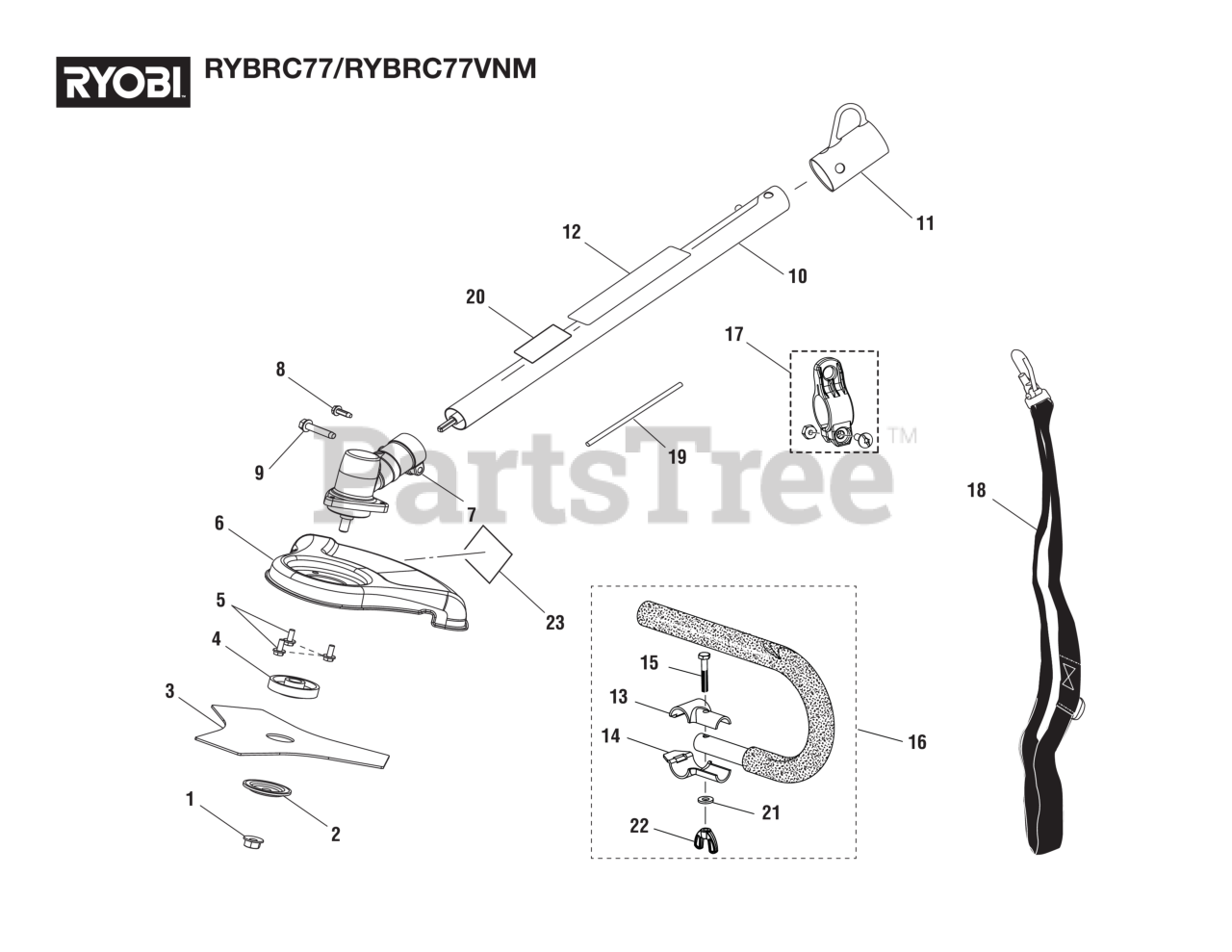

General Assembly Parts Diagram

  • Title

1

Homelite 678018001

Lock Nut (M8 x 1.25 in., Left Hand Threads)
(Superseded to 04277)

$

$

Not available

2

Homelite 638017001

CUPPED WASHER
(Superseded to 04409)

$2.49

$

In Stock, only 1 left!

0

3

Homelite 638006004

BLADE (TRI-ARC(TM))

$12.99

$

Usually ships in 3-7 days

0

4

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$6.49

$

In Stock, only 1 left!

0

5

Homelite 660737001

Screw w/Washer (10-24 x 1/2 in., Slotted Hex Hd.)
(Superseded to 88049)

$

$

Not available

6

Homelite 638120004

Brush Cutter Guard

$15.99

$

Usually ships in 3-7 days

0

7

Homelite 308210008

Gear Case Assembly
(Superseded to 308210001)

$

$

Not available

8

Homelite 660736001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)
(Superseded to 983774003)

$1.49

$

In Stock, only 1 left!

0

9

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 308035058

Lower Straight Shaft Boom Assembly

Note: (Inc. Key Nos. 11-12 and 20)

$20.99

$

In Stock, only 3 left!

0

11

Homelite 518019004

Hanger Cap

$1.49

$

In Stock, Qty 6

0

12

Homelite 940657166

Brushcutter Safety Label

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 638564004

Top "J" Handle Clamp

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 638565004

Bottom "J" Handle Clamp

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 662724001

Bolt (1/4-20 x 1-1/2 in., Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 308046009

"J" Handle and Grip

Note: (Inc. Keys 13-15 & 21-22)

$15.99

$

Usually ships in 3-7 days

0

17

Homelite 314811001

Strap Hanger

$3.99

$

Usually ships in 3-7 days

0

18

Homelite 308487001

Shoulder Harness Assembly

$6.99

$

Usually ships in 3-7 days

0

19

Homelite 678020001

Gear Head Locking Tool
(Superseded to 099078001040)

$1.49

$

In Stock, only 4 left!

0

20

Homelite 940726013

Ryobi EXPAND-IT Label

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 678013001

Washer (ID7.25 x OD16 x 1.5t)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$1.49

$

In Stock, only 3 left!

0

23

Homelite 940705021

Logo Label

$

$

Not available

Homelite 991000566

Operator's Manual

Note: Not Shown

$

$

Not available
