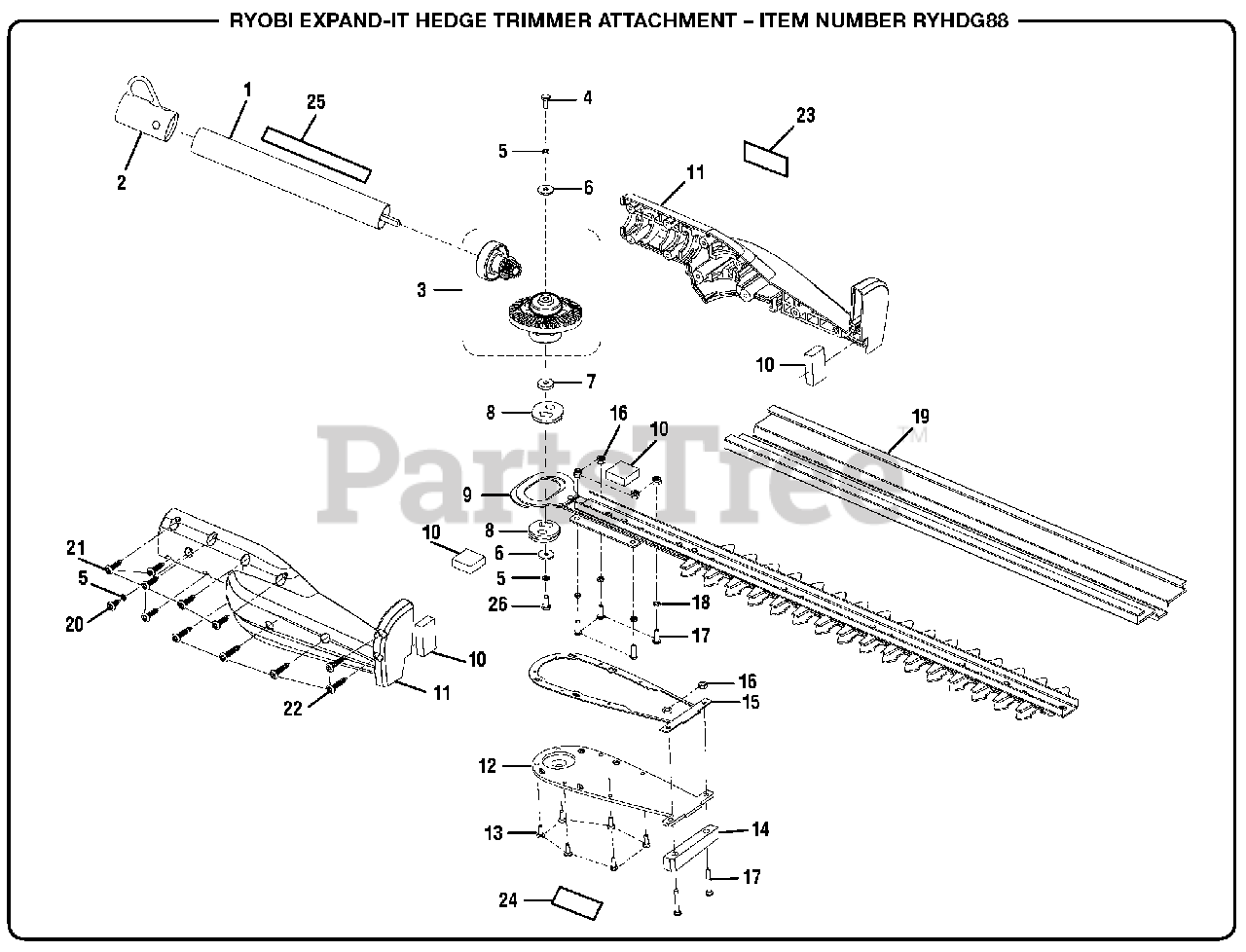

RY HDG88 (090113012) - Ryobi Expand-It Hedge Trimmer Attachment General Assembly Parts Diagram

Expand-It Hedge Trimmer Attachment

General Assembly Parts Diagram

  • Title

1

Homelite 310699011

Lower Drive Shaft Assembly

Note: (Inc. Key Nos. 2 and 25)

$14.99

$

In Stock, only 1 left!

0

2

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0

3

Homelite 220100007

Output Gear and Pinion Assembly

$27.99

$

Usually ships in 3-7 days

0

4

Homelite 660927001

Screw (M5 x 10 mm)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 678343001

Spring Washer (M5)
(Superseded to 099069001005)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 678341002

Washer (M5)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 638342001

Cam Spacer

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 678350001

Cam

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 308548030

Blade Assembly

$36.99

$

In Stock, only 1 left!

0

10

Homelite 901382001

Felt
(Superseded to 099069001023)

$

$

Not available

11

Homelite 120530011

Housing Assembly

Note: (Inc. Key No. 23)

$

$

Not available

12

Homelite 311509001

Bottom Housing Plate

Note: (Inc. Key No.24)

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 660923001

Screw (M4 x 16 mm)
(Superseded to 099069001017)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 523427001

Guard

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 591617001

Seal
(Superseded to 099069001019)

$

$

Not available

16

Homelite 678344002

Lock Nut (M4)
(Superseded to 099069001020)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 660924002

Screw (M4 x 16 mm)
(Superseded to 099069001021)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 678346001

Spring Washer (M4)
(Superseded to 099069001022)

$

$

Not available

19

Homelite 518463009

Scabbard

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 660925002

Screw (M4 x 9 mm)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 660927002

Screw (M5 x 14.5 mm)
(Superseded to 099069001029)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 660926001

Screw (M5 x 26.5 mm)
(Superseded to 099069001027)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 940705023

Logo Label

$

$

Not available

24

Homelite 940680005

Hot Surface Label

$

$

Not available

25

Homelite 940749006

Warning Label

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 660927008

Screw (M5 x 12 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

Homelite 991000569

Operator's Manual

Note: NOT SHOWN

$

$

Not available
