RY i2000 GRA (090930355) - Ryobi Digital Inverter Generator, Rev 01 (2019-07) Figure A Parts Diagram

Digital Inverter Generator, Rev 01

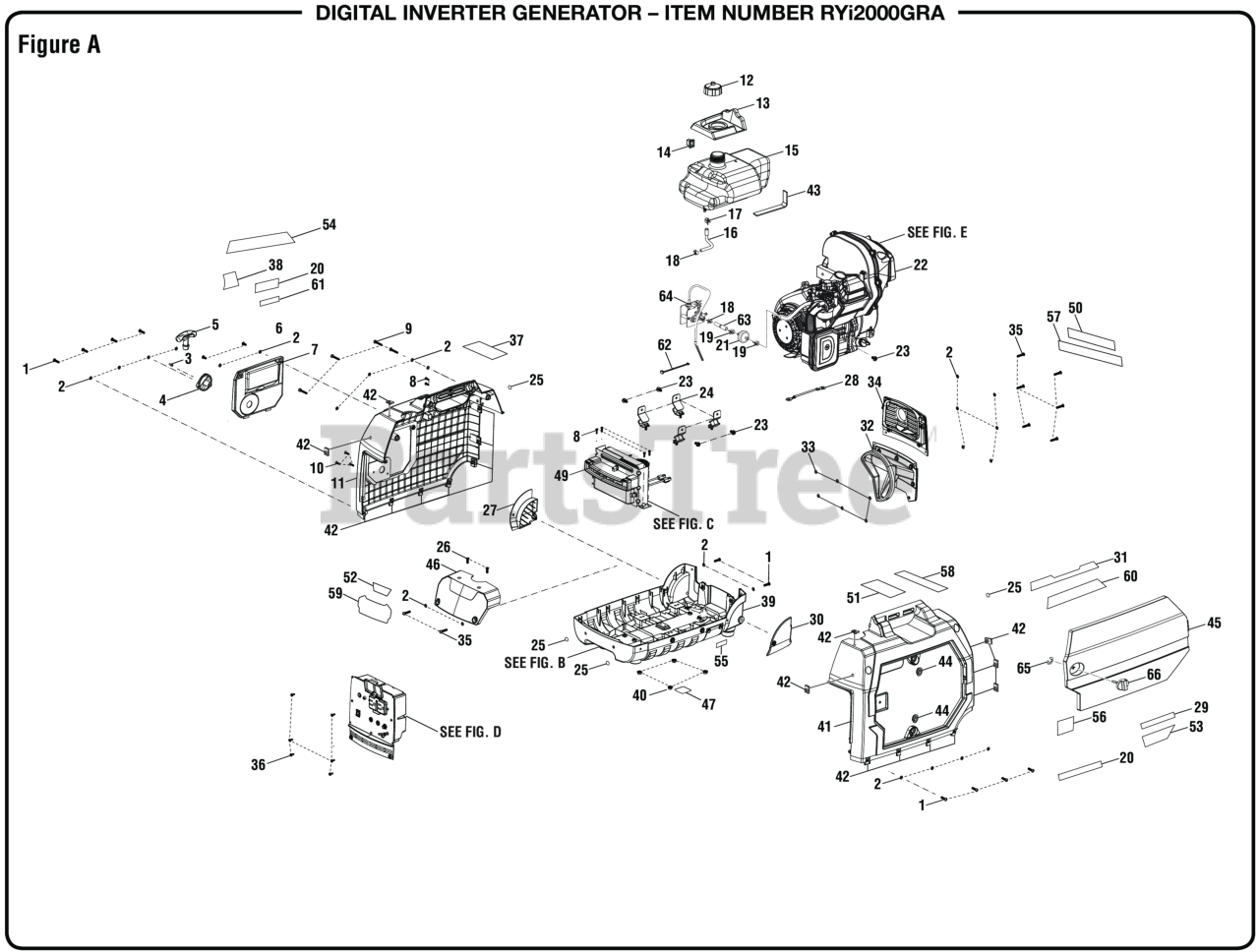

Figure A Parts Diagram

  • Title

1

Homelite 660764010

Screw (M5 x 20 mm, Button Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 638128014

Washer (ID5.3 x OD10 x 1t)

$

$

Not available

3

Homelite 661346001

Screw (M4 x 10 mm)

$1.66

$

Usually ships in 3-7 days

0

4

Homelite 525361008

Control Knob

$1.49

$

In Stock, only 3 left!

0

5

Homelite 524015004

Recoil Handle

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 660764007

Screw (M5 x 12 mm, T25 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 525297005

Starter Cover Assembly

$

$

Not available

8

Homelite 660345015

Screw (M4 x 12 mm, T15 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 660345018

Screw (M5 x 30 mm, T25 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 661864012

Screw (M4 x 16 mm, Flat Hd.)

$

$

Not available

11

Homelite 524001021

Left Housing Assembly

Note: (Inc. Key No. 42)

$80.99

$

Usually ships in 3-7 days

0

12

Homelite 519709007

Vented Fuel Cap

$

$

Not available

13

Homelite 570818005

Overspill Guard

$7.49

$

Usually ships in 3-7 days

0

14

Homelite 570356010

Support (Fuel Tank)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 310711196

Fuel System Assembly

Note: (Inc. Key Nos. 14 and 16-18)

$

$

Currently unavailable

16

Homelite 570358170

Fuel Hose (6mm and 4.5 mm)

$3.99

$

Usually ships in 3-7 days

0

17

Homelite 678815015

Clamp (D10 x 0.8 mm)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 678409008

Fuel Line Clamp (3/8 in.)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 678815010

Fuel Hose Clamp (9.5 mm)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 940705433

Easy Start Logo Label

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 308733008

Fuel Filter Inline (1/4 in.)

$8.49

$

In Stock, Qty 7

0

22

Engine (Subaru EA190)

Note: NOTE A: Techtronic Industries Power Equipment will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

23

Homelite 660975004

Bolt (M6 x 12 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 679940011

Engine Isolator (45 Degree)

$3.49

$

In Stock, only 1 left!

0

25

Homelite 940779252

Half Inch Black Round Label

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 660764012

Screw (M5 x 16 mm, Flat Hd.)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 525297015

Wheel Cap (Left)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 290404012

Ground Wire

$

$

Not available

29

Homelite 941486008

Inquires Label (Ryobi)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 525297014

Wheel Cap (Right)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 940974020

Fire Distance Label

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 524012018

Lower Exhaust Panel Assembly

Note: (Inc. Key No. 33)

$

$

Not available

33

Homelite 638704006

Internal tooth washer (5 mm ID)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 524012016

Upper Exhaust Panel Assembly

Note: (Inc. Key No. 35)

$19.99

$

Usually ships in 3-7 days

0

35

Homelite 660764011

Screw (M5 x 25 mm, Button Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 660345009

Screw w/Washer (M4 x 10 mm, T20 Torx Button Hd.)

$1.49

$

In Stock, only 4 left!

0

37

Homelite 940654323

Danger Label

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 940647139

Choke Label

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 525529003

Bottom Base Assembly

Note: (Inc. Key Nos. 1-2, 27 & 30; See Figure B)

$

$

Not available

40

Homelite 678774019

Lock Nut (M6)

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 524001020

Right Housing Assembly

Note: (Inc. Key No. 42)

$86.99

$

Usually ships in 3-7 days

0

42

Homelite 678900014

U-Clip (M5)

$

$

Not available

43

Homelite 560878004

Rubber Pad

$

$

Not available

44

Homelite 570766011

Grommet

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 523430013

Maintenance Cover Assembly

$

$

Not available

46

Homelite 525297013

Front Housing Cover

$3.99

$

Usually ships in 3-7 days

0

47

Homelite 941214001

Upright Storage Label

$1.49

$

Usually ships in 3-7 days

0

48

Control Panel

Note: Figure D

$

$

Not available

49

Inverter Module Assembly

Note: Figure C

$

$

Not available

50

Homelite 940947035

Combustion Label

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 940515017

CPSC Danger Label

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 940705434

Start Label (Hood)

$1.49

$

Usually ships in 3-7 days

0

53

Homelite 940708028

Lubricant Label

$1.49

$

Usually ships in 3-7 days

0

54

Homelite 940779247

Performance Label

$1.49

$

Usually ships in 3-7 days

0

55

Homelite 940911003

Internally Placed Maintance Label
(Superseded to 940911013)

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 940782004

Fuel Stabilizer Label

$1.49

$

Usually ships in 3-7 days

0

57

Homelite 940513036

Ground Warning Label (English/French)

$1.49

$

Usually ships in 3-7 days

0

58

Homelite 941209001

Exhaust Direction Label

$1.49

$

Usually ships in 3-7 days

0

59

Homelite 940705431

Logo Label

$1.49

$

Usually ships in 3-7 days

0

60

Homelite 940779246

Performance Label (Maintenance Door)

$1.49

$

Usually ships in 3-7 days

0

61

Homelite 940617178

Start Label

$1.49

$

Usually ships in 3-7 days

0

62

Homelite 290514016

Engine Wire Harnes

$2.99

$

Usually ships in 3-7 days

0

63

Homelite 570358171

Fuel Hose (4.5 mm and 6 mm)

$1.99

$

In Stock, Qty 7

0

64

Homelite 310437021

Engine Start/Stop Mechanism Assembly

$34.99

$

Usually ships in 3-7 days

0

65

Homelite 638623008

E-Clip (5 mm Shaft)

$1.99

$

Usually ships in 3-7 days

0

66

Homelite 525361014

Lock Knob

$

$

Not available

Homelite 120694001

Accessory Kit

Note: Not Shown

$2.99

$

Usually ships in 3-7 days

0

Homelite 995000660

Operator's Manual

Note: Not Shown

$

$

Not available
