RY i2200 (100930119) - Ryobi Digital Inverter Generator Figure B Parts Diagram

Digital Inverter Generator

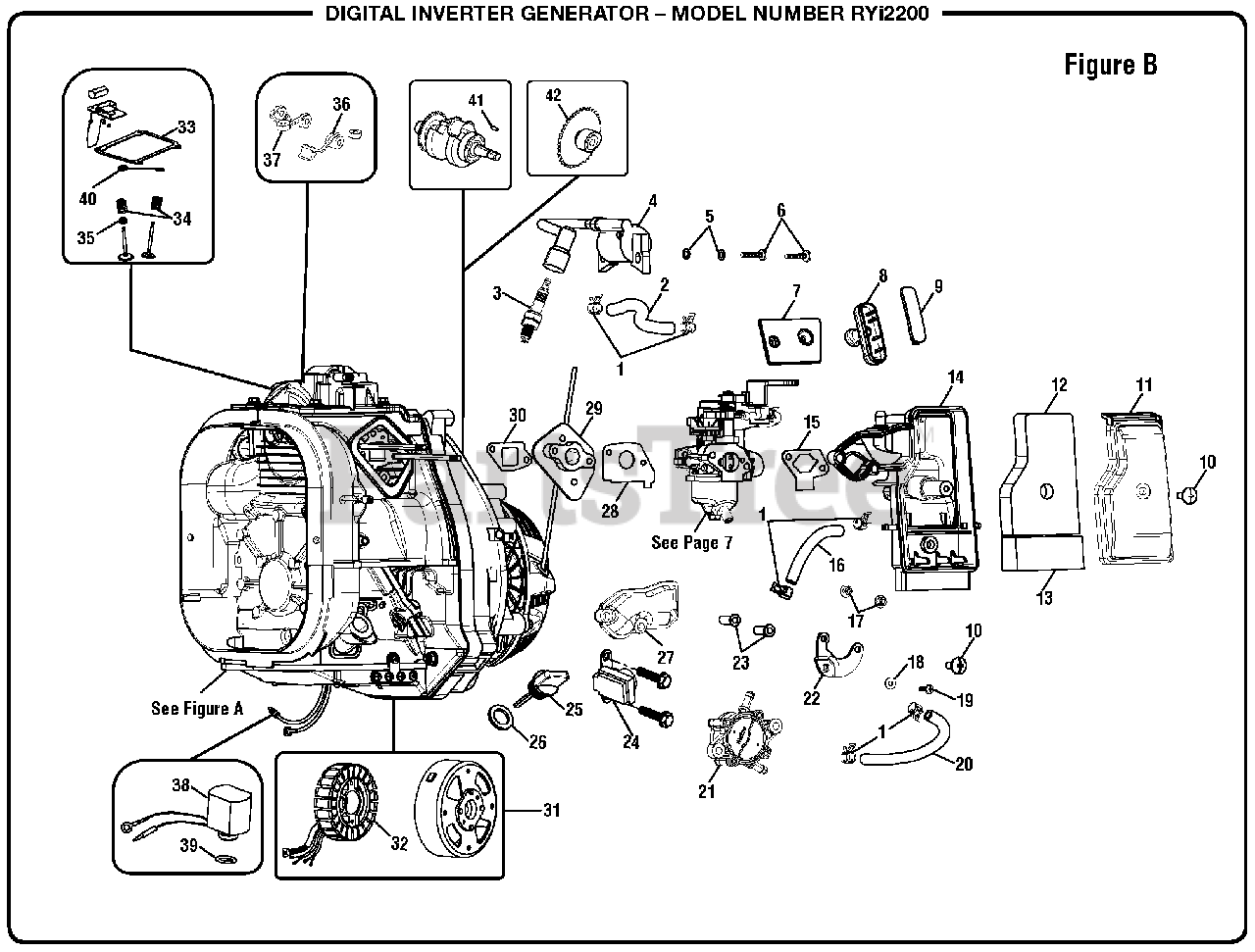

Figure B Parts Diagram

  • Title

1

Homelite 678815010

Fuel Hose Clamp (9.5 mm)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 570358087

Air Hose (3 Way Hose To Engine 180 mm)

$3.99

$

Usually ships in 3-7 days

0

3

Homelite 870174004

Spark Plug (NHSP LD7RTS)

$7.49

$

In Stock, Qty 10

0

4

Homelite 850202001

Ignition Coil

$30.99

$

Usually ships in 3-7 days

0

5

Homelite GB/T 95-2002

Washer (M5)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite GB/T 845-1985

Screw (M4.8 x 19 mm)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 525297001

Start Rope Cover

$6.99

$

Usually ships in 3-7 days

0

8

Homelite 524015002

Recoil Handle

$

$

Not available

9

Homelite 524011001

Handle Cover

$1.99

$

In Stock, only 3 left!

0

10

Homelite 661906001

Screw (M8 x 16 mm, Truss Hd.)

$

$

Not available

11

Homelite 524008001

Air Cleaner Baffle

$

$

Not available

12

Homelite 901709002

Air Cleaner Filter

$2.99

$

In Stock, only 3 left!

0

13

Homelite 901709001

Air Cleaner Filter

$1.99

$

In Stock, Qty 9

0

14

Homelite 524007002

Air Cleaner Body

$

$

Not available

15

Homelite 570740029

Intake Pipe Gasket.

$

$

Not available

16

Homelite 570358084

Fuel Hose (Fuel Pump To Fuel Valve, 95 mm)

$2.99

$

Usually ships in 3-7 days

0

17

Homelite GB/T 6177.1-2000

Flange Nut (M5 x 0.8)

$

$

Not available

18

Homelite 690969001

Washer (ID4.2 x OD10 x 1t)

$1.49

$

In Stock, Qty 5

0

19

Homelite 661864006

Screw (M4.2 x 12 mm, Phillips Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 570358086

Fuel Hose (Engine To Fuel Pump, 140 mm)

$

$

Not available

21

Homelite 308459007

Fuel Pump

$44.99

$

Usually ships in 3-7 days

0

22

Homelite 639138001

Fuel Pump Bracket

$

$

Not available

23

Homelite 678455002

Air Cleaner Body Nesting

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 760504012

Pick-up Coil

$9.99

$

Usually ships in 3-7 days

0

25

Homelite 310302003

Engine Oil Dipstick

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 11222-A142-0000

Oil Dipstick Seal

$1.49

$

In Stock, only 3 left!

0

27

Homelite 679476001

Intake Pipe Top Hood

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 570740028

Carburetor Gasket

$1.99

$

In Stock, only 2 left!

0

29

Homelite 524006001

Intake Seat

$1.99

$

In Stock, only 2 left!

0

30

Homelite 570740027

Insulating Board Gasket

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 310227031

Alternator Assembly

Note: (Inc. Key No. 32)

$141.99

$

Usually ships in 3-7 days

0

32

Homelite 310772038

Stator Assembly

$101.99

$

In Stock, only 1 left!

0

33

Homelite 08-067

Head Gasket

$1.49

$

In Stock, only 4 left!

0

34

Homelite 06-03-127

Valve spring

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 03-03-1-029

Valve Seal

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 06-06-372

Intake Rocker Assembly

$12.99

$

Usually ships in 3-7 days

0

37

Homelite 06-06-371

Exhaust Rocker Assembly

$14.99

$

Usually ships in 3-7 days

0

38

Homelite 06.06.358

Oil Sensor

$11.99

$

Usually ships in 3-7 days

0

39

Homelite 03.03.1.033

Oil Sensor Seal

$3.49

$

Usually ships in 3-7 days

0

40

Homelite 06.06.348

Valve Retainer

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 01.06.0190

Engine Shaft Key

$1.49

$

In Stock, only 1 left!

0

42

Homelite 06.06.370

Engine Cam

$36.99

$

Usually ships in 3-7 days

0
