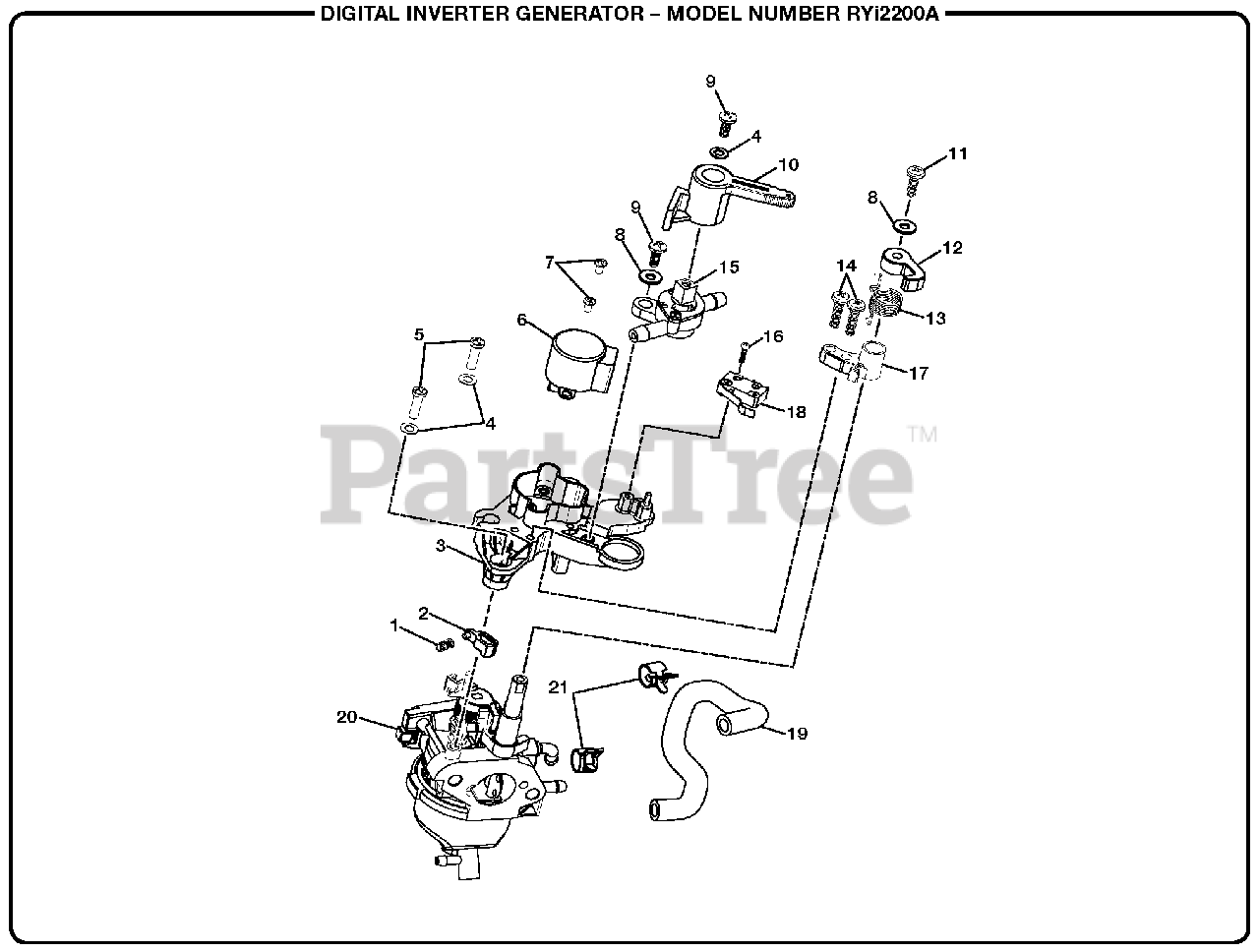

RY i2200 A (090930296) - Ryobi Digital Inverter Generator, Rev 02 (2016-11) General Assembly Parts Diagram

Digital Inverter Generator, Rev 02

General Assembly Parts Diagram

  • Title

1

Homelite 679449001

Governor Damping Spring

$

$

Not available

2

Homelite 524022001

Governor Joint

$

$

Not available

3

Homelite 524021002

Governor Motor Bottom Housing

$

$

Not available

4

Homelite 661864009

Washer (M4)

$2.99

$

In Stock, only 3 left!

0

5

Homelite 660465003

Screw (M4 x 14 mm, Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 230404001

Governor

$

$

Not available

7

Homelite 660914005

Screw (M3 x 5 mm, Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

8

Homelite 690969001

Washer (OD10 x ID4.2 x 1t)

$2.49

$

In Stock, only 1 left!

0

9

Homelite 660465002

Screw (M4 x 10 mm, Pan Hd.)

$10.99

$

In Stock, only 2 left!

0

10

Homelite 525361002

Control Lever

$

$

Not available

11

Homelite 661864006

Screw (M4.2 x 12 mm, Pan Hd.)

$3.49

$

Usually ships in 3-7 days

0

12

Homelite 590458012

Choke Lever Upper

$2.99

$

In Stock, only 3 left!

0

13

Homelite 638421006

Spring

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 661864005

Screw (M4.2 x 16 mm, Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 678670005

Fuel Valve

$

$

Not available

16

Homelite 660342008

Screw (M2.2 x 12 mm, Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 525503001

Support Bracket

$

$

Not available

18

Homelite 291443001

Engine Shut-Off Switch

$

$

Not available

19

Homelite 570358085

Fuel Hose (Fuel Valve To Carb)

$

$

Not available

20

Homelite 308054078

Carburetor

$

$

Not available

21

Homelite 678815010

Clamp (D9.5 mm)

$2.49

$

Usually ships in 3-7 days

0
