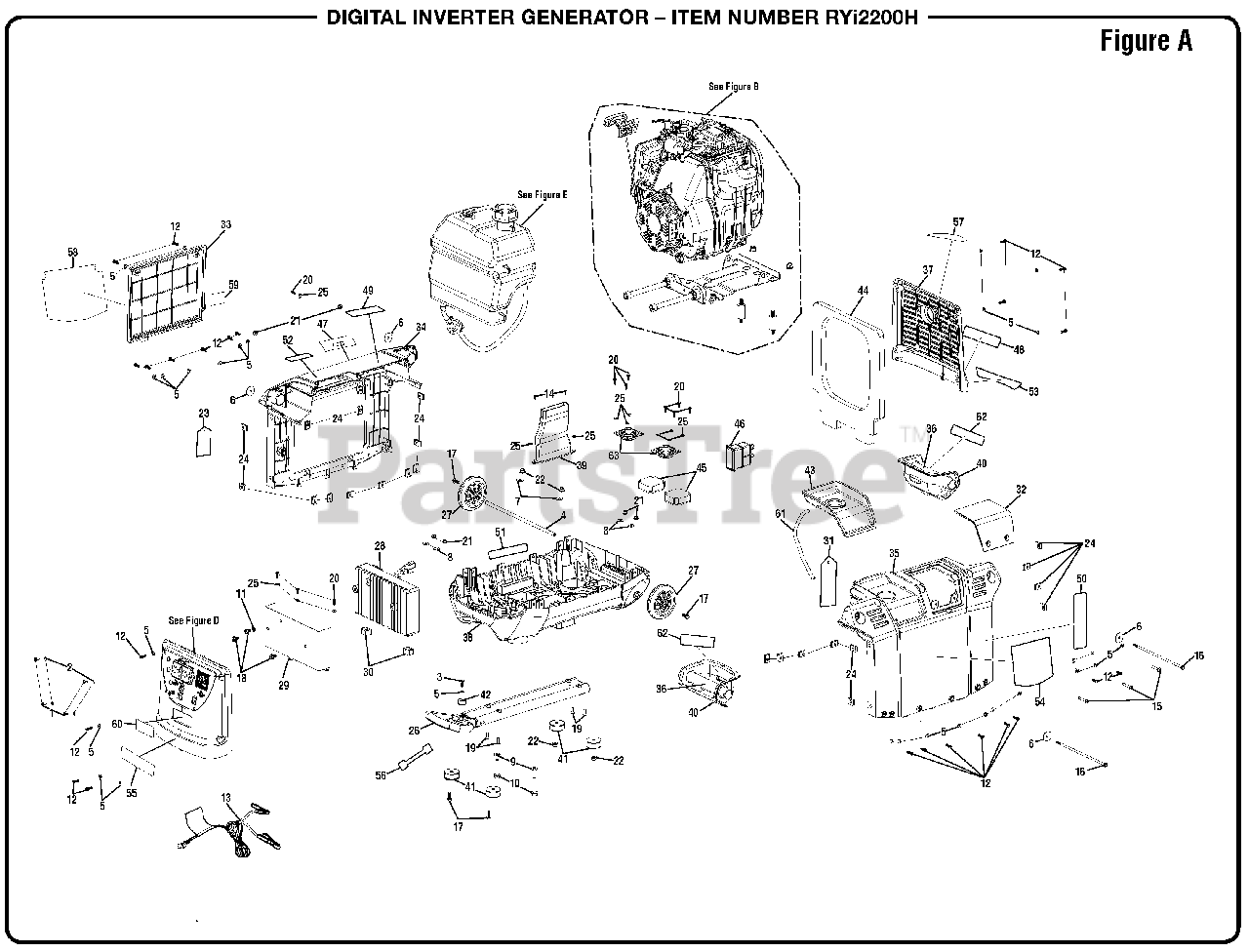

RY i2200 H (090930218) - Ryobi Digital Inverter Generator Figure A Parts Diagram

Digital Inverter Generator

Figure A Parts Diagram

  • Title

1

Homelite 660345009

Screw w/Washer (M4 x 10 mm, T20 Torx Hd)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 638623006

Flat Washer (OD8 x ID43 x 05t)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 660345010

Screw (M5 x 14 mm, Phillips Hd)

$

$

Not available

4

Homelite 620599023

Axle

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 638128014

Washer (OD10 x ID53 x 1t)

$

$

Not available

6

Homelite 638128015

Washer (OD25 x ID63 x 15t)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 638128016

Washer (OD18 x ID63 x 15t)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 638128017

Washer (OD15 x ID53 x 1t)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 638128019

Washer (OD16 x ID83 x 2t)

$2.49

$

In Stock, only 4 left!

0

10

Homelite 660764001

Bolt (M8 x 40 mm, Hex Hd)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 638704002

Star Washer (OD11 x ID64 x 06t)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 660342009

Screw (M5 x 14 mm)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 290425004

DC Cable Assembly

$14.99

$

Usually ships in 3-7 days

0

14

Homelite 660345006

Screw (ST35 x 9 mm)

$

$

Not available

15

Homelite 660345007

Screw (M5 x 30 mm, Side Housing)

$2.99

$

In Stock, only 1 left!

0

16

Homelite 660972025

Bolt (M5 x 195 mm)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 660972026

Bolt (M6 x 16 mm, Flange Hex Hd)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 660975004

Bolt (M6 x 12 mm, Hex Hd)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 661843001

Screw (M5 x 14 mm)

$3.49

$

Usually ships in 3-7 days

0

20

Homelite 661864006

Screw (M42 x 12 mm)

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 678774007

Flange Nut (M5)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 678774009

Lock Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 940735007

Initial Starting Hangtag

$

$

Currently unavailable

24

Homelite 678900013

U-Clip (M5)

$

$

Not available

25

Homelite 690969002

Washer (OD10 x ID42 x 1t)
(Superseded to 690969001)

$2.49

$

In Stock, only 1 left!

0

26

Homelite 308790053

Handle Assembly

$125.99

$

Usually ships in 3-7 days

0

27

Homelite 310223007

Wheel

$

$

Currently unavailable

28

Homelite 290991008

Inverter Module

$

$

Not available

29

Homelite 901663002

Air Guide Sheet

$

$

Not available

30

Homelite 570355008

Inverter Bottom Support

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 940971091

Warning Hangtag

$3.99

$

Usually ships in 3-7 days

0

32

Homelite 519813016

Spark Plug Cover

$

$

Not available

33

Homelite 523430009

Maintenance Assembly (Includes Labels & Sound Foam)

$

$

Currently unavailable

34

Homelite 524001008

Left Side Housing Assembly (Includes Labels & Sound Foam)

$

$

Currently unavailable

35

Homelite 524003008

Right Side Housing Assembly (Includes Labels & Sound Foam)

$

$

Currently unavailable

36

Homelite 638701021

Handle (Upper)

$10.99

$

Usually ships in 3-7 days

0

37

Homelite 524012002

Muffler Cover
(Superseded to 524012006)

$9.99

$

Usually ships in 3-7 days

0

38

Homelite 525296001

Base
(Superseded to 525296004)

$3.49

$

Usually ships in 3-7 days

0

39

Homelite 525363001

Air Filter Duct

$18.99

$

Usually ships in 3-7 days

0

40

Homelite 524011003

Handle Cover Assembly (Includes Labels & Sound Foam)

$

$

Currently unavailable

41

Homelite 561454002

Foot Assembly

$5.99

$

Usually ships in 3-7 days

0

42

Homelite 570712003

Rubber Bumper

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 570818001

Fuel Overspill Guard

$

$

Not available

44

Homelite 980412002

Foam Pad (Muffler)

$

$

Not available

45

Homelite 980414011

Foam Pad (Base)

$

$

Not available

46

Homelite 310722010

Carbon Canister

$

$

Not available

47

Homelite 940617116

Quick Start Label

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 940947008

Combustion Label

$

$

Not available

49

Homelite 940515017

CPSC Label

$3.49

$

Usually ships in 3-7 days

0

50

Homelite 940654266

Danger Label

$2.49

$

Usually ships in 3-7 days

0

51

Homelite 940678368

Data Label

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 940872003

E85 Label

$2.49

$

In Stock, only 2 left!

0

53

Homelite 940974094

Fire Distance Label

$3.49

$

Usually ships in 3-7 days

0

54

Homelite 940779094

Performance Label

$2.99

$

Usually ships in 3-7 days

0

55

Homelite 940513030

Ground Warning Label

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 940758016

Handle Release Label

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 940680049

Hot Surface Label

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 940705186

Logo Label

$4.49

$

Usually ships in 3-7 days

0

59

Homelite 940708023

Check Oil Label

$1.49

$

Usually ships in 3-7 days

0

60

Homelite 941732003

Logo Label (small)

$

$

Not available

61

Homelite 570358151

Vapor Hose (Carbon Canister To Air Box)

$

$

Not available

62

Homelite 940654214

Warning Transport w/Handle Label

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 570356009

Isolator (Engine Bracket)

$4.49

$

Usually ships in 3-7 days

0

Homelite 991000388

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 991000389

Quick Reference Guide

Note: Not Shown

$2.99

$

Usually ships in 3-7 days

0
