RY i2300 VNM (095930074) - Ryobi Digital Inverter Generator, Rev 01 (2020-04) FIGURE B Parts Diagram

Digital Inverter Generator, Rev 01

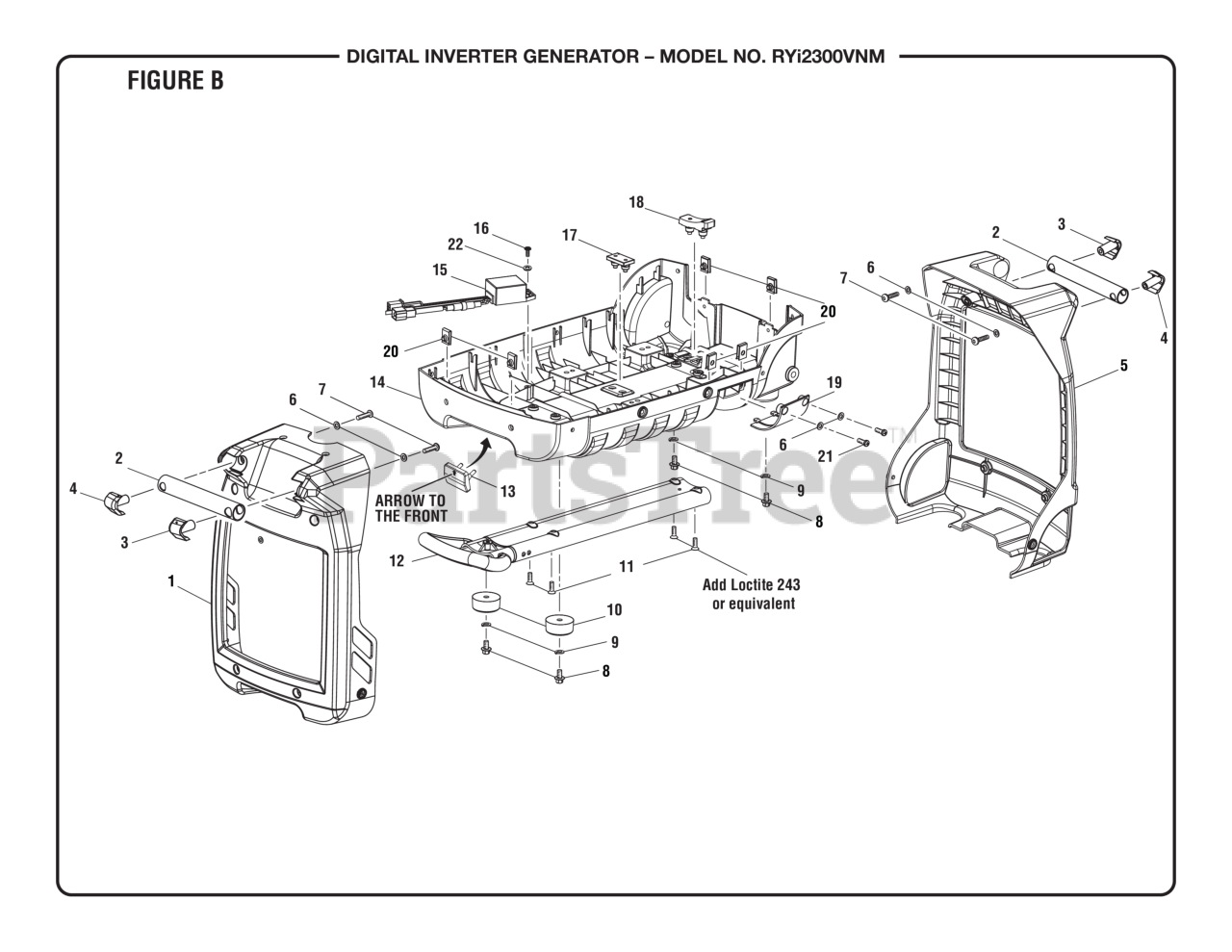

FIGURE B Parts Diagram

  • Title

1

Homelite 518728006

Front Cover

$47.99

$

Usually ships in 3-7 days

0

2

Homelite 638701035

Handle Tube

$9.49

$

Usually ships in 3-7 days

0

3

Homelite 525361010

Handle Cap (Right)

$6.49

$

Usually ships in 3-7 days

0

4

Homelite 525361011

Handle Cap (Left)

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 524012007

Back Cover

$40.99

$

Usually ships in 3-7 days

0

6

Homelite 638128014

Washer (ID5.3 x OD10 x 1t)

$

$

Not available

7

Homelite 660764010

Screw (M5 x 20 mm, Button Soc. Hd.)

$2.49

$

In Stock, Qty 5

0

8

Homelite 660975004

Bolt (M6 x 12 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 678012001

Lock Washer (1/4 in.)
(Superseded to 83009)

$9.99

$

Usually ships in 3-7 days

0

10

Homelite 561454006

Isolator Foot

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 660764012

Screw (M5 x 16 mm, Flat Hd.)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 308790086

Handle Assembly

$111.99

$

Usually ships in 3-7 days

0

13

Homelite 570712009

Handle Bumper

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 525296003

Bottom Base

$66.99

$

Usually ships in 3-7 days

0

15

Homelite 290433009

Regulator (AC to DC)

$

$

Not available

16

Homelite 662028001

Screw (M4 x 16 mm, T20 Torx Socket Pan Hd.)

$

$

Currently unavailable

17

Homelite 570712007

Engine Support Isolator (Front)

$

$

Not available

18

Homelite 570712008

Engine Support Isolator (Back)

$

$

Not available

19

Homelite 519813032

Oil Drain Door

$3.49

$

Usually ships in 3-7 days

0

20

Homelite 678900014

U-Clip (M5)

$

$

Not available

21

Homelite 660342013

Screw (M5 x 12 mm, Phillips Pan Hd)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 638128014

Washer (ID5.3 x OD10 x 1t)

$

$

Not available
