RY i2300 VNM (095930074) - Ryobi Digital Inverter Generator, Rev 01 (2020-04) FIGURE C Parts Diagram

Digital Inverter Generator, Rev 01

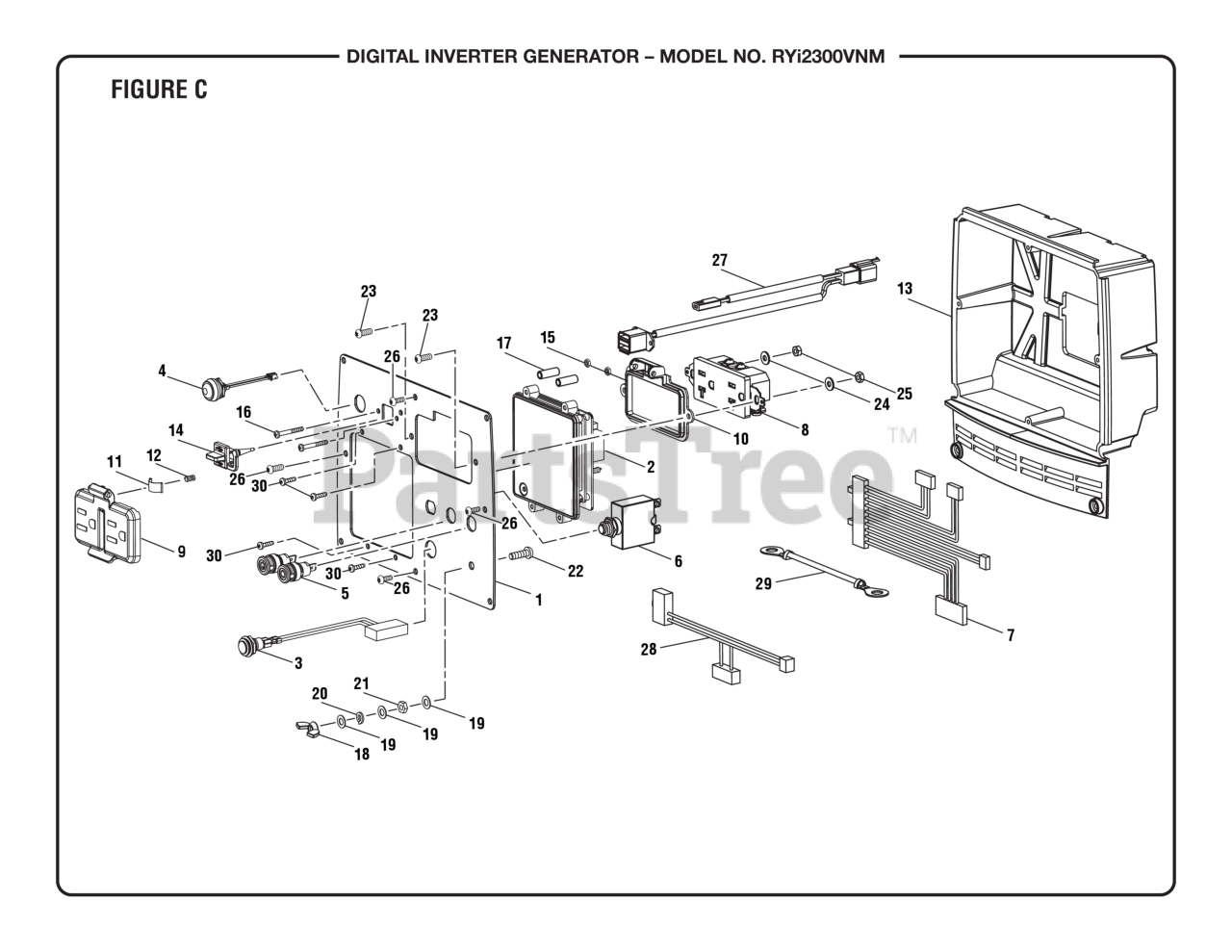

FIGURE C Parts Diagram

  • Title

1

Homelite 638700039

Faceplate

$9.99

$

Usually ships in 3-7 days

0

2

Homelite 290432025

GEN CONTROL DISPLAY ASSEMBLY RYi2300BTA

$

$

Not available

3

Homelite 760945003

Overload Reset Button

$3.99

$

Usually ships in 3-7 days

0

4

Homelite 760945004

Auto Idle Button

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 870932002

Connector (Black)

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 780350007

Circuit Breaker (20 Amp, 125 Volt)

$6.49

$

Usually ships in 3-7 days

0

7

Homelite 290514014

Wire Harness (GENControl(TM) Display)

$2.99

$

Usually ships in 3-7 days

0

8

Homelite 290400017

120 Volt Duplex Receptacle (BM903611)

$

$

Not available

9

Homelite 570412014

Receptacle Cover (Front)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 570412015

Fixed Outlet Cover

$

$

Not available

11

Homelite 570412012

Clip

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 679449001

Governor Damping Spring

$

$

Not available

13

Homelite 519707014

Electrical Panel Housing

$11.99

$

Usually ships in 3-7 days

0

14

Homelite 563684002

Dual USB Cover

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 673288001

Hex Nut (M3)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 662111001

Screw (M3 x 25 mm, Phillips Pan Hd )

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 662112001

Spacer (17.2 mm)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 678016009

Wing Nut (M5)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 638623005

Flat Washer (OD10 x ID5.3 x 0.5t)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 678343003

Lock Washer (OD9 x ID5 x 1.3t)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 678016008

Hex Nut (M5)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 660976002

Screw (M5 x 16 mm, Phillips Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 660345025

Bolt (M4 x 10 mm, T15 Torx Drive Hd.)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 690969002

Flat Washer (OD10 x 42 x 1t)
(Superseded to 690969001)

$1.49

$

In Stock, Qty 5

0

25

Homelite 661514002

Flange Nut (M4)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 660901004

Screw (#6-20 x 3/8 in., T15 Torx Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 290435037

Regulator Wire Harness w/ USB Ports

$3.49

$

Usually ships in 3-7 days

0

28

Homelite 290514013

Internal Wire Assembly

$3.99

$

Usually ships in 3-7 days

0

29

Homelite 290404011

Ground Wire

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 660975016

Screw (M3.1 x 10 mm, Torx pan Hd.)

$1.49

$

Usually ships in 3-7 days

0
