RY i2322 E VNM (095930340) - Ryobi Digital Bluetooth Inverter Generator, Rev 01 (2020-11) FIGURE C Parts Diagram

Digital Bluetooth Inverter Generator, Rev 01

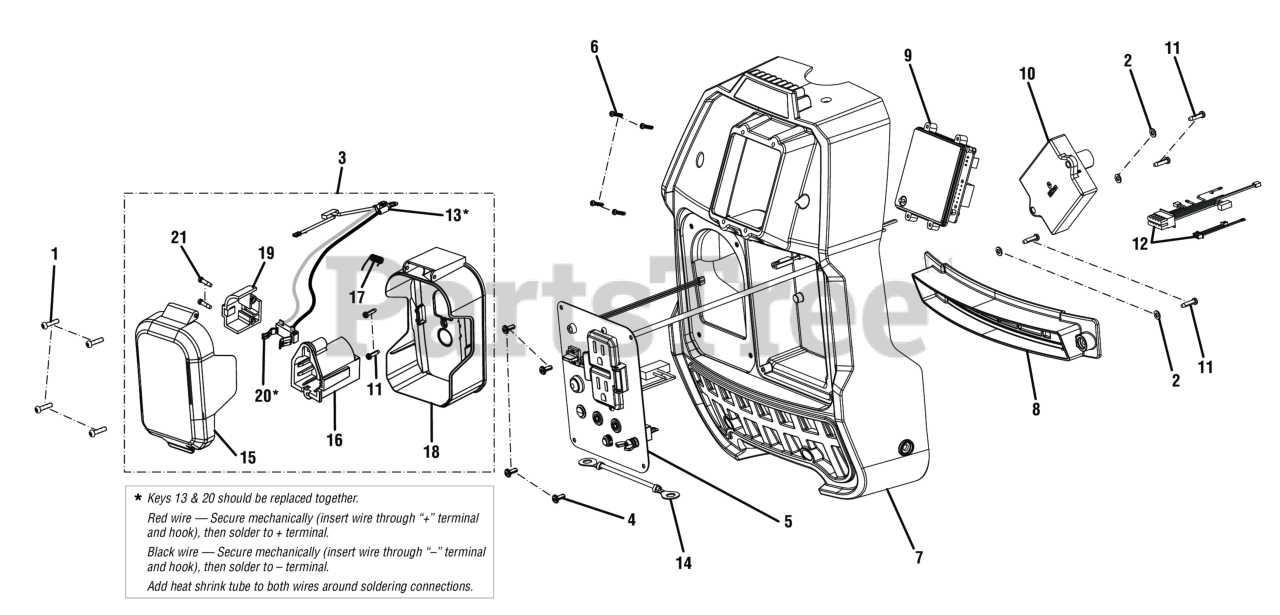

FIGURE C Parts Diagram

  • Title

1

Homelite 660383009

Screw (M4 x 16 mm, T25 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 632716002

Washer (OD9 x ID4.4 x 1t)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 526979002

Battery Housing Assembly

$24.99

$

Usually ships in 3-7 days

0

4

Homelite 660345009

Screw w/Washer (M4 x 10 mm, T20 Torx Button Hd.)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 290403098

Faceplate Assembly

$

$

Currently unavailable

6

Homelite 660821002

Screw (#4-20, T10 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 518728016

Front Cover

$98.99

$

Usually ships in 3-7 days

0

8

Homelite 525297011

Air Guide

$5.99

$

Usually ships in 3-7 days

0

9

Homelite 290432043

GenControl Assembly

$261.99

$

Usually ships in 3-7 days

0

10

Homelite 291939001

Auto-Choke Module

$134.99

$

Usually ships in 3-7 days

0

11

Homelite 662028001

Screw (M4 x 16 mm, T20 Torx Socket Pan Hd.)

$

$

Currently unavailable

12

Homelite 290514024

GenControl Wiring Harness

$20.99

$

Usually ships in 3-7 days

0

13

Homelite 290435063

Internal Wire Assembly

$11.99

$

Usually ships in 3-7 days

0

14

Homelite 290404011

Ground Wire

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 526979004

Battery Compartment Cover

$9.99

$

Usually ships in 3-7 days

0

16

Homelite 526978001

Base (Battery Connect)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 697240001

Torsion Spring

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 526979003

Battery Compartment Base

$8.49

$

Usually ships in 3-7 days

0

19

Homelite 526979001

Press Cover (Battery Connect)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 300001067

Plate (Battery Connect)

$

$

Currently unavailable

21

Homelite 662328001

Screw (M3.5 x 12 mm, T10 Torx Pan Hd.)

$0.99

$

Usually ships in 3-7 days

0
