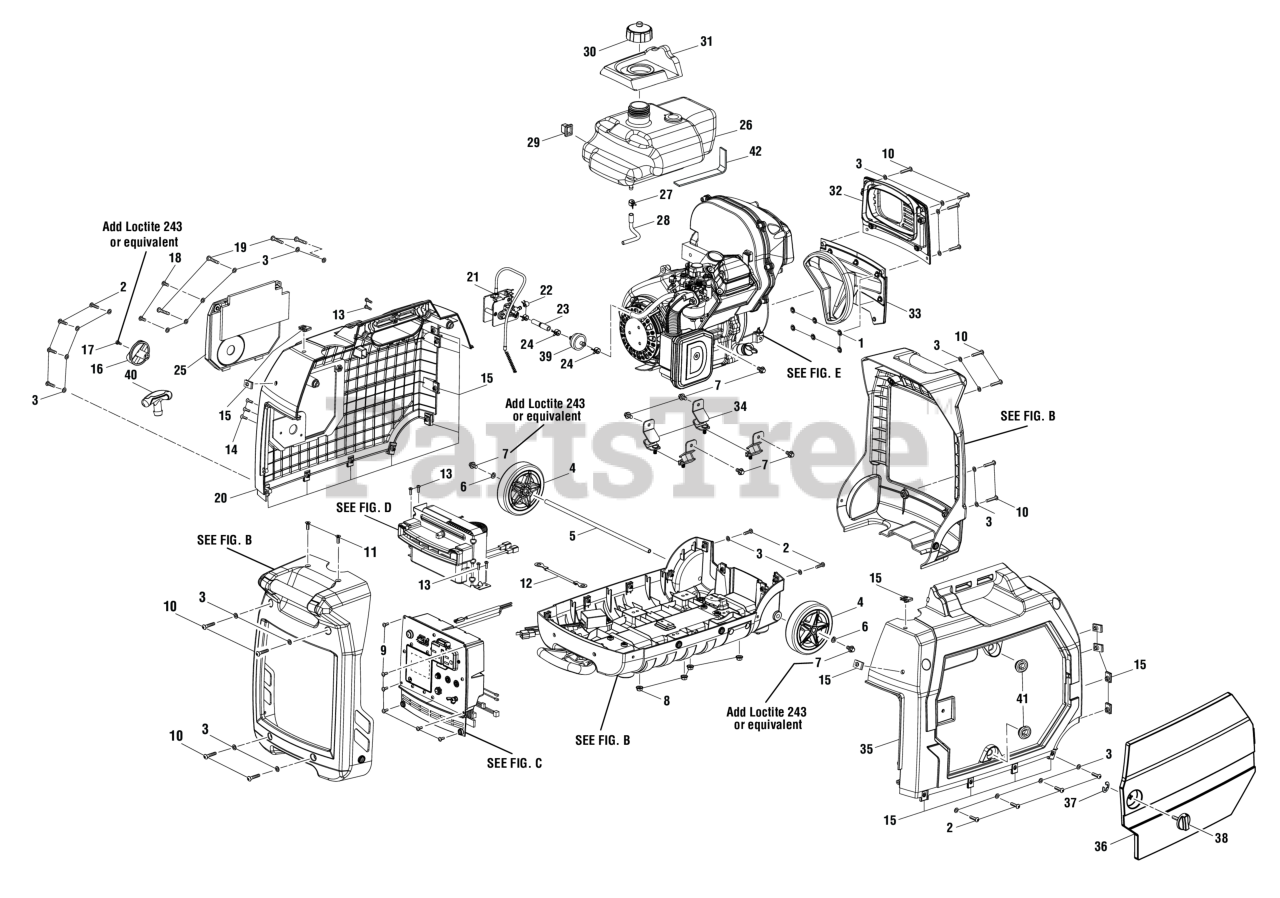

RY i2322 VNM (095930352) - Ryobi Digital Bluetooth Inverter Generator, Rev 01 (2020-09) FIGURE A Parts Diagram

Digital Bluetooth Inverter Generator, Rev 01

FIGURE A Parts Diagram

  • Title

1

Homelite 638704005

Internal Tooth Strip Retainers

$

$

Currently unavailable

2

Homelite 660764010

Screw (M5 x 20 mm, Button Soc. Hd.)

$2.49

$

In Stock, Qty 5

0

3

Homelite 638128014

Washer (ID5.3 x OD10 x 1t)

$

$

Not available

4

Homelite 310223008

Wheel

$12.99

$

Usually ships in 3-7 days

0

5

Homelite 620599031

Axle

$7.99

$

Usually ships in 3-7 days

0

6

Homelite 678012001

Lock Washer (1/4 in.)
(Superseded to 83009)

$9.99

$

Usually ships in 3-7 days

0

7

Homelite 660975004

Bolt (M6 x 12 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 678774019

Lock Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 660345009

Screw w/Washer (M4 x 10 mm, T20 Torx Button Hd.)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 660764011

Screw (M5 x 25 mm, Button Soc. Hd.)

$2.49

$

In Stock, Qty 10

0

11

Homelite 660764012

Screw (M5 x 16 mm, Flat Hd.)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 290404012

Ground Wire

$

$

Not available

13

Homelite 660345015

Screw (M4 x 12 mm, T15 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 661864012

Screw (M4 x 16 mm, Flat Hd.)

$

$

Not available

15

Homelite 678900014

U-Clip (M5)

$

$

Not available

16

Homelite 525361008

Control Knob

$1.99

$

In Stock, only 3 left!

0

17

Homelite 661346001

Screw (M4 x 10 mm)

$1.66

$

Usually ships in 3-7 days

0

18

Homelite 660764007

Screw (M5 x 12 mm, T25 Torx Pan Hd.)

$2.49

$

In Stock, only 1 left!

0

19

Homelite 660345018

Screw (M5 x 30 mm, T25 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 524001011

Left Housing Assembly

Note: (Inc. Key No. 15)

$164.99

$

Usually ships in 3-7 days

0

21

Homelite 310437021

Engine Start/Stop Mechanism Assembly

Note: (Inc. One of Key 22 and Key 23)

$68.99

$

Usually ships in 3-7 days

0

22

Homelite 678409008

Fuel Line Clamp (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 570358171

Fuel Hose (4.5 mm and 6 mm)

$3.49

$

In Stock, Qty 7

0

24

Homelite 678815010

Fuel Hose Clamp (9.5 mm)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 525297006

Starter Cover Assembly

$25.99

$

Usually ships in 3-7 days

0

26

Homelite 310711202

Fuel System Assembly

$143.99

$

In Stock, only 1 left!

0

27

Homelite 678815015

Clamp (D10 x 0.8 mm)

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 570358170

Fuel Hose (6mm and 4.5 mm)

$6.99

$

In Stock, only 2 left!

0

29

Homelite 570356010

Support (Fuel Tank)

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 519709007

Vented Fuel Cap

$

$

Not available

31

Homelite 570818005

Overspill Guard

$14.99

$

Usually ships in 3-7 days

0

32

Homelite 524012042

Upper Exhaust Panel Assembly (Inc. Key No. 3)

$10.99

$

Usually ships in 3-7 days

0

33

Homelite 524012012

Lower Exhaust Panel Assembly

$55.99

$

Usually ships in 3-7 days

0

34

Homelite 679940011

Engine Isolator (45 Degree)

$6.99

$

In Stock, only 1 left!

0

35

Homelite 524003011

Right Housing Assembly

$184.99

$

Usually ships in 3-7 days

0

36

Homelite 523430011

Maintenance Cover Assembly

$

$

Not available

37

Homelite 638623008

E-Clip (5 mm Shaft)

$3.49

$

Usually ships in 3-7 days

0

38

Homelite 525361009

Lock Knob

$6.49

$

Usually ships in 3-7 days

0

39

Homelite 308733008

Fuel Filter Inline (1/4 in.)

$8.99

$

In Stock, only 2 left!

0

40

Homelite 524015004

Recoil Handle

$5.99

$

Usually ships in 3-7 days

0

41

Homelite 570766011

Grommet

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 560878004

Rubber Pad

$

$

Not available

Homelite 120694001

Accessory Kit

Note: Not Shown

$5.49

$

Usually ships in 3-7 days

0

Homelite 995000603

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 995000604

Quick Reference Guide

Note: Not Shown

$2.49

$

Usually ships in 3-7 days

0
