RY i2322 VNM (095930352) - Ryobi Digital Bluetooth Inverter Generator, Rev 01 (2020-09) FIGURE E Parts Diagram

Digital Bluetooth Inverter Generator, Rev 01

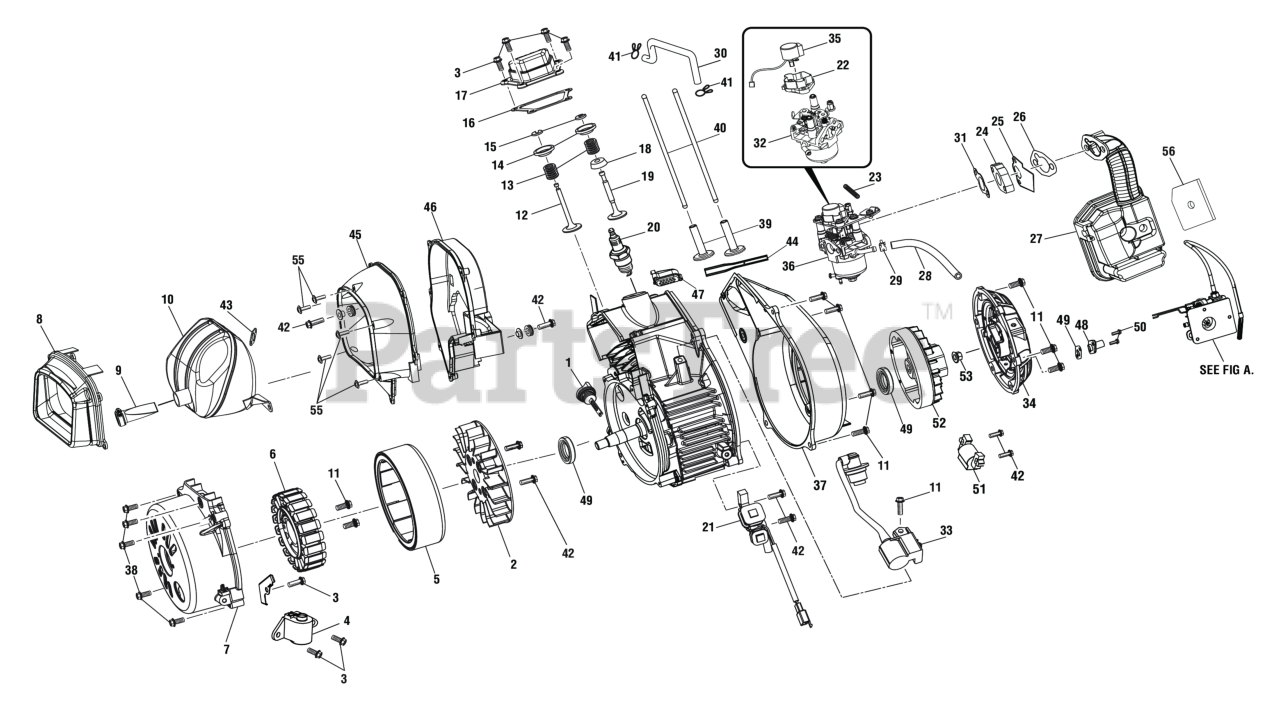

FIGURE E Parts Diagram

  • Title

1

Homelite 310302005

Oil Dipstick

$4.49

$

Usually ships in 3-7 days

0

2

Homelite 310757003

Fan

$

$

Not available

3

Homelite 91325

Bolt (M6 x 12 mm)

$3.49

$

Usually ships in 3-7 days

0

4

Homelite 205101

Low Oil Sensor

$22.99

$

Usually ships in 3-7 days

0

5

Homelite 310771053

Rotor

$194.99

$

Usually ships in 3-7 days

0

6

Homelite 310772054

Stator

$278.99

$

Usually ships in 3-7 days

0

7

Homelite 678289012

Alternator Cover

$69.99

$

Usually ships in 3-7 days

0

8

Homelite 638497046

Muffler Heat Shield

$43.99

$

Usually ships in 3-7 days

0

9

Homelite 638147015

Spark Screen

$12.99

$

Usually ships in 3-7 days

0

10

Homelite 308990062

Muffler

$

$

Currently unavailable

11

Homelite 91329

Bolt (M6 x 16 mm)

$3.49

$

Usually ships in 3-7 days

0

12

Homelite 205901

Exhaust Valve

$14.99

$

Usually ships in 3-7 days

0

13

Homelite 206001

Valve Spring

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 201801

Plate

$3.99

$

Usually ships in 3-7 days

0

15

Homelite 200801

Valve Lock Clamp

$3.99

$

In Stock, only 2 left!

0

16

Homelite 96006

Gasket (Over Head Cover)

$6.49

$

In Stock, only 2 left!

0

17

Homelite 201101

Over Head Cover

$21.99

$

Usually ships in 3-7 days

0

18

Homelite 201802

Inlet Valve Spring Seat

$5.49

$

Usually ships in 3-7 days

0

19

Homelite 201701

Inlet Valve

$9.49

$

Usually ships in 3-7 days

0

20

Homelite 97101

Spark Plug

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$24.99

$

In Stock, only 2 left!

0

21

Homelite 760504020

RPM Sensor

$44.99

$

Usually ships in 3-7 days

0

22

Homelite 524021005

Governor Motor Housing

$15.99

$

In Stock, only 2 left!

0

23

Homelite 679449002

Compression Spring

$2.99

$

Usually ships in 3-7 days

0

24

Homelite 202301

Thermal Insulation Seat (Carburator)

$4.49

$

Usually ships in 3-7 days

0

25

Homelite 96121

Paper Gasket

$4.49

$

In Stock, only 4 left!

0

26

Homelite 96009

Air Box Gasket

$4.49

$

Usually ships in 3-7 days

0

27

Homelite 518248005

Air Filter Assembly

$41.99

$

In Stock, only 1 left!

0

28

Homelite 570358172

Fuel Hose (6 mm)

$9.99

$

Usually ships in 3-7 days

0

29

Homelite 678409003

Fuel Line Clamp (7/16 in., BM903611)

$2.49

$

In Stock, only 2 left!

0

30

Homelite 209917

Breather Pipe

$

$

Currently unavailable

31

Homelite 96008

Gasket (Muffler)

$3.49

$

In Stock, only 4 left!

0

32

Homelite 308054140

Carburetor

$

$

Currently unavailable

33

Homelite 850202005

Ignition Coil

$90.99

$

In Stock, only 2 left!

0

34

Homelite 636996002

Engine Recoil

$

$

Not available

35

Homelite 230404002

Stepper Motor

$31.99

$

In Stock, only 1 left!

0

36

Homelite 308054139

Carburetor Assembly (Inc. Key Nos. 22, 32 and 35)

$608.99

$

Usually ships in 3-7 days

0

37

Homelite 204705

Engine Cover

$

$

Currently unavailable

38

Homelite 91334

Bolt (M6 x 30 mm)

$3.49

$

Usually ships in 3-7 days

0

39

Homelite 206101

Lifter Valve

$

$

Not available

40

Homelite 201901

Pushing Rod

$3.99

$

Usually ships in 3-7 days

0

41

Homelite 94407

Clip

$

$

Currently unavailable

42

Homelite 91330

Bolt (M6 x 20 mm)

$

$

Currently unavailable

43

Homelite 96260

Gasket (Connection Block)

$

$

Currently unavailable

44

Homelite 95664

Breather Hose

$218.99

$

Usually ships in 3-7 days

0

45

Homelite 202503

Muffler Cover 1

$

$

Currently unavailable

46

Homelite 202506

Muffler Cover 2

$

$

Currently unavailable

47

Homelite 247904

Fill Valve Assembly

$

$

Currently unavailable

48

Homelite 229908

Ring Flange

$

$

Currently unavailable

49

Homelite 209918

Oil Ring

$

$

Currently unavailable

50

Homelite 91322

Bolt (M5 x 12 mm)

$

$

Currently unavailable

51

Homelite 97502

Magneto Ignition

$

$

Currently unavailable

52

Homelite 200401

Flywheel

$

$

Currently unavailable

53

Homelite T90014

Flywheel Nut

$

$

Currently unavailable

54

Homelite 93501

Oil Seal

$

$

Currently unavailable

55

Homelite D92108

Screw

$

$

Currently unavailable

56

Homelite D5291

Air Filter

$

$

Currently unavailable
