RY i300 BG (099930631) - Ryobi 40V Power Source (2019-08) General Assembly Parts Diagram

40V Power Source

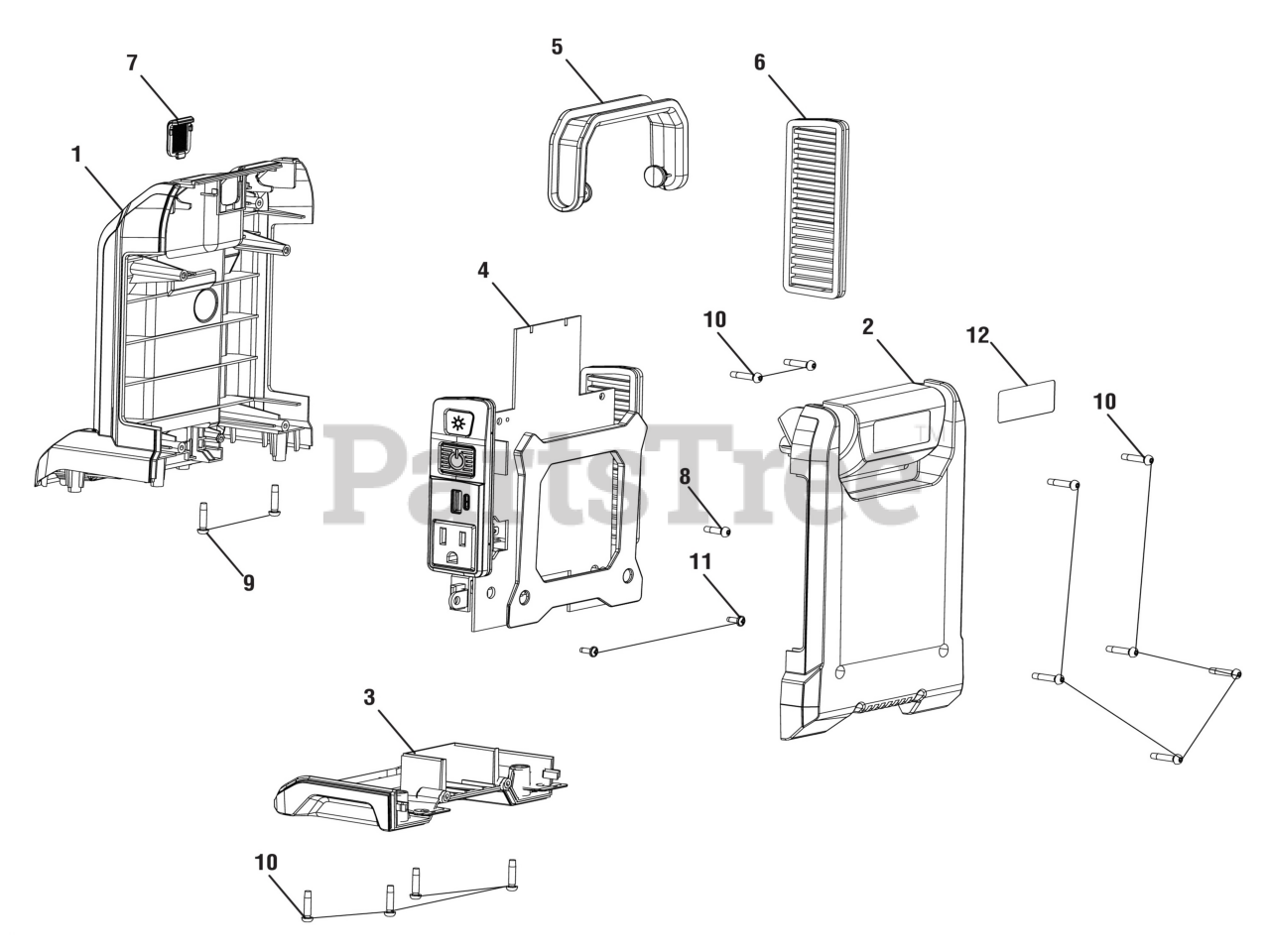

General Assembly Parts Diagram

  • Title

1

Homelite 518728023

Upper Housing

$71.99

$

Usually ships in 3-7 days

0

2

Homelite 518728024

Back Housing Assembly (Inc. Key No. 12)

$57.99

$

Usually ships in 3-7 days

0

3

Homelite 518728025

Back Housing

$38.99

$

Usually ships in 3-7 days

0

4

Homelite 315478001

Control Panel Assembly

$

$

Currently unavailable

5

Homelite 518728028

Handle

$11.99

$

Usually ships in 3-7 days

0

6

Homelite 518728027

Side Panel Vent

$6.49

$

Usually ships in 3-7 days

0

7

Homelite 529685006

LED Task Light

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd., Pan Hd)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 662651001

Screw (M3 x 8 mm)

$

$

Currently unavailable

10

Homelite 660031017

Screw (M3.5 x 16 mm, T10 Torx Pan Hd.)

$0.99

$

Usually ships in 3-7 days

0

11

Homelite T662318001

Screw (M4 x 13.5 mm)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 940705432

Logo Label

$1.49

$

Usually ships in 3-7 days

0

Homelite 995000827

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
