RY i4022 X (099930627) - Ryobi 4000 Watt Digital Inverter Generator, Rev 02 (2022-02) FIGURE A Parts Diagram

4000 Watt Digital Inverter Generator, Rev 02

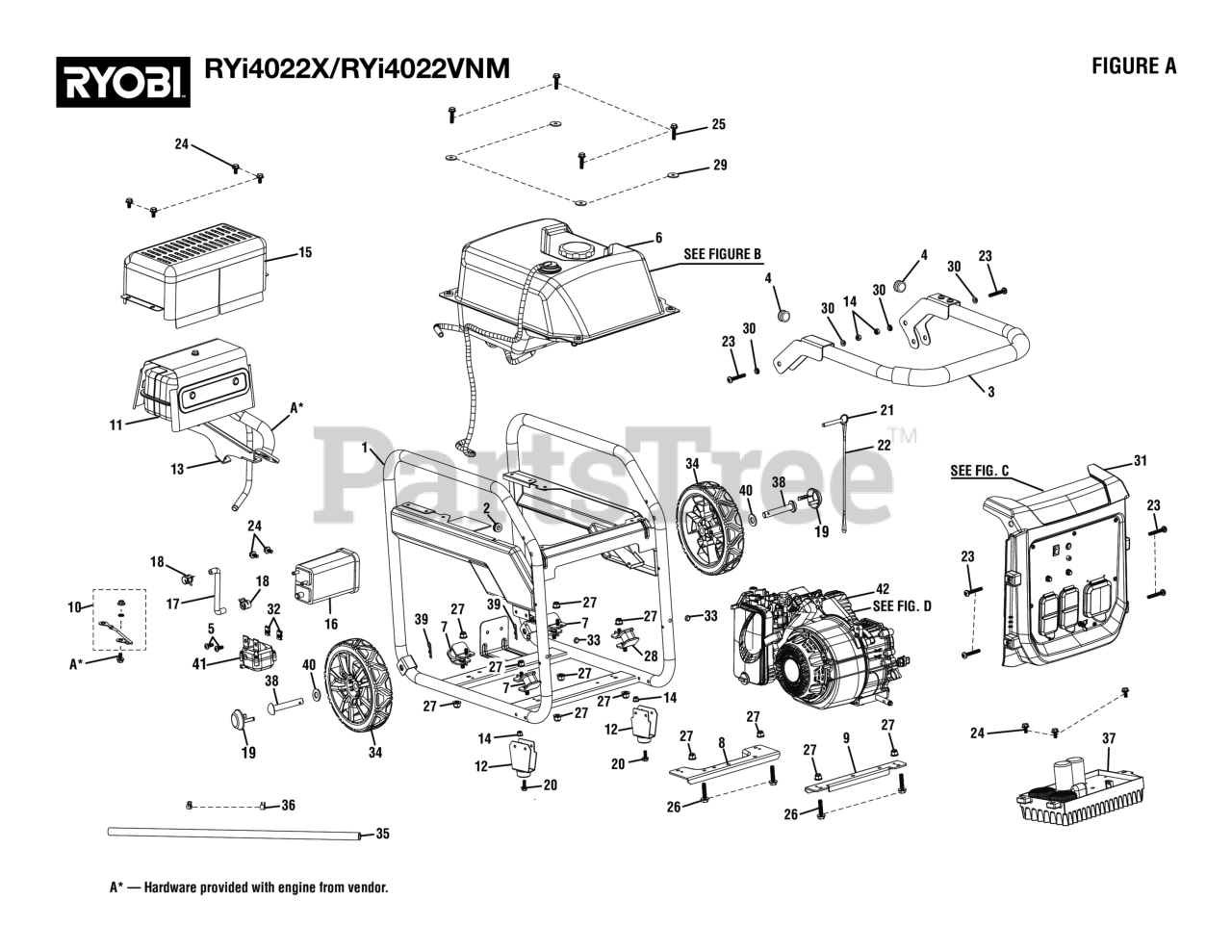

FIGURE A Parts Diagram

  • Title

1

Homelite 308581097

Frame Assembly

$146.99

$

Usually ships in 3-7 days

0

2

Homelite 570766017

Grommet
(Superseded to 310711232)

$159.99

$

Usually ships in 3-7 days

0

3

Homelite 308581091

Handle

$33.99

$

In Stock, only 1 left!

0

4

Homelite 519712010

Handle End Caps

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 660764013

Bolt (M6 x 10 mm, T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

6

Fuel Tank Assembly

Note: See Fig. B

$

$

Not available

7

Homelite 679940012

Isolator (45 Deg, Short)

$11.99

$

Usually ships in 3-7 days

0

8

Homelite 638496053

Control Panel Faceplate

$

$

Currently unavailable

9

Homelite 638496054

Bottom Plate (Right)

$368.99

$

Usually ships in 3-7 days

0

10

Homelite 290404023

Ground Wire Assembly

$1058.99

$

Usually ships in 3-7 days

0

11

Homelite 309322059

Muffler

$211.99

$

In Stock, only 2 left!

0

12

Homelite 570554020

Foot Assembly

$

$

Currently unavailable

13

Homelite 638496070

Muffler Bracket

$70.99

$

Usually ships in 3-7 days

0

14

Homelite 678460009

Lock Nut (M6 x 1 mm)

$

$

Not available

15

Homelite 638497051

Muffler Heat Shield

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 310771075

Carbon Canister (Depurate Q-13-004)

$45.99

$

Usually ships in 3-7 days

0

17

Homelite 570358218

Carbon Canister To Airbox Hose.

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 678409013

Fuel Clamp (3/8 in)

$13.99

$

Usually ships in 3-7 days

0

19

Homelite 529655001

Hub Cap

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 662979003

Bolt (M6 x 40 mm, Flange Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 310712001

Release Pin (5/16 x 2 in.)

$1.99

$

In Stock, only 4 left!

0

22

Homelite 310715001

Lanyard (3/16 in.)

$

$

Not available

23

Homelite 660224012

Bolt (M6 x 40 mm, T30 Torx Pan Hd.)

$

$

Currently unavailable

24

Homelite 662979001

Flange Bolt (M6 x 12 mm)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 662979002

Flange Bolt (M6 x 25 mm

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 662979004

Flange Bolt (M6 x 16 mm, T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$2.49

$

In Stock, Qty 6

0

28

Homelite 679940013

Isolator (45 Deg, Tall)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 638128038

Washer

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 638128039

Shoulder Washer

$18.99

$

Usually ships in 3-7 days

0

31

Control Panel Assembly

Note: See Fig. C

$

$

Not available

32

Homelite 678824004

U-Clip (M6)

$2.49

$

In Stock, only 1 left!

0

33

Homelite 570371008

Handle Bumper

$

$

Not available

34

Homelite 330073008

Front Wheel Assembly

$

$

Not available

35

Homelite 570358212

Pair Valve Hose

$

$

Currently unavailable

36

Homelite 678409013

Fuel Clamp (3/8 in)

$13.99

$

Usually ships in 3-7 days

0

37

Homelite 290991038

Inverter Module

$755.99

$

Usually ships in 3-7 days

0

38

Homelite 681866010

Axle

$10.99

$

Usually ships in 3-7 days

0

39

Homelite 678146004

Hitch Pin

$

$

Not available

40

Homelite 638275002

Washer (1/2 in.)

$2.49

$

In Stock, Qty 5

0

41

Homelite 290432058

CO Detector Assembly

$337.99

$

Usually ships in 3-7 days

0

42

Engine, Rato 212cc Inverter EZSRT 2021

Note: See Fig. D

$

$

Not available

Homelite 995000700

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 995000701

Quick Start Guide

Note: Not Shown

$

$

Currently unavailable

Homelite 519314001

Funnel

Note: Not Shown

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000103

Warranty Insert

Note: Not Shown

$

$

Currently unavailable
