RY i4022 X (099930628) - Ryobi 4000 Watt Digital Inverter Generator, Rev 05 (2022-02) FIGURE A Parts Diagram

4000 Watt Digital Inverter Generator, Rev 05

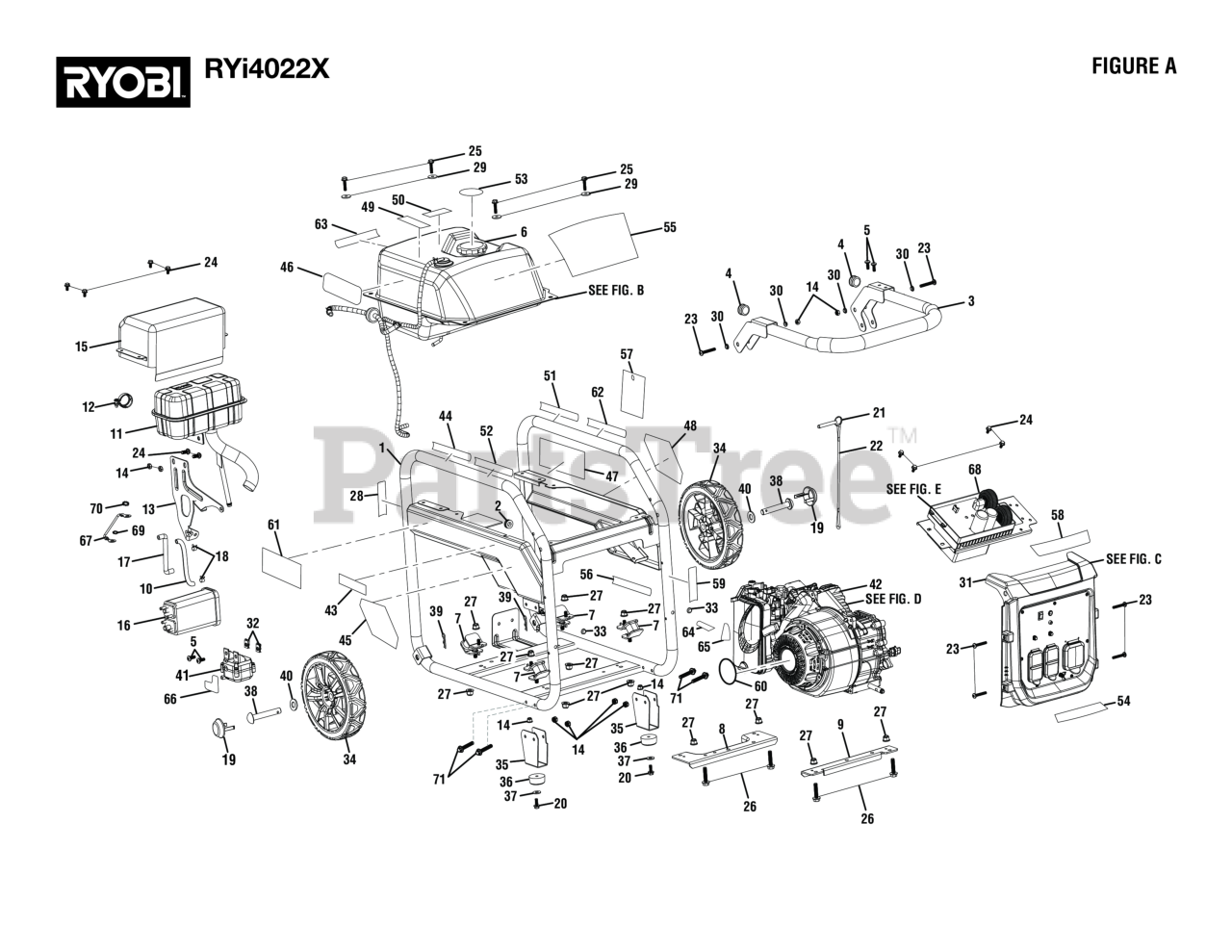

FIGURE A Parts Diagram

  • Title

1

Homelite 308581090

Frame Assembly

$210.99

$

Usually ships in 3-7 days

0

2

Homelite 570766017

Grommet
(Superseded to 310711232)

$159.99

$

Usually ships in 3-7 days

0

3

Homelite 308581091

Handle

$33.99

$

In Stock, only 1 left!

0

4

Homelite 519712010

Handle End Caps

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 660764013

Bolt (M6 x 10 mm, T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

6

Fuel Tank Assembly

Note: See Fig. B

$

$

Not available

7

Homelite 679940014

Isolator (45 Deg)

$14.99

$

Usually ships in 3-7 days

0

8

Homelite 638496059

Bottom Plate (Left)

$20.99

$

Usually ships in 3-7 days

0

9

Homelite 638496060

Bottom Plate (Right)

$19.99

$

Usually ships in 3-7 days

0

10

Homelite 570358213

Pair Valve Hose

$10.99

$

Usually ships in 3-7 days

0

11

Homelite 309322052

Muffler

$

$

Currently unavailable

12

Homelite 638147015

Spark Screen

$12.99

$

Usually ships in 3-7 days

0

13

Homelite 638496063

Muffler Bracket

$21.99

$

Usually ships in 3-7 days

0

14

Homelite 678460009

Lock Nut (M6 x 1 mm)

$

$

Not available

15

Homelite 638497052

Muffler Heat Shield

$40.99

$

Usually ships in 3-7 days

0

16

Homelite 310771072

Carbon Canister (Rewin Q-08-007 RW320cc)

$49.99

$

Usually ships in 3-7 days

0

16

Homelite 310771075

Carbon Canister (Depurate Q-13-004)

$45.99

$

Usually ships in 3-7 days

0

17

Homelite 570358218

Carbon Canister To Airbox Hose.

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 678409008

Fuel Line Clamp (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 529655001

Hub Cap

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 662979005

Bolt (M6 x 16 mm, Hex Hd)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 310712001

Release Pin (5/16 x 2 in.)

$1.99

$

In Stock, only 4 left!

0

22

Homelite 310715001

Lanyard (3/16 in.)

$

$

Not available

23

Homelite 660224012

Bolt (M6 x 40 mm, T30 Torx Pan Hd.)

$

$

Currently unavailable

24

Homelite 662979001

Flange Bolt (M6 x 12 mm)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 662979002

Flange Bolt (M6 x 25 mm

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 662979004

Flange Bolt (M6 x 16 mm, T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$2.49

$

In Stock, Qty 6

0

28

Homelite 940680086

Hot Surface Label

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 638128038

Washer

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 639128039

Shoulder Washer

$2.49

$

Usually ships in 3-7 days

0

31

Control Panel Assembly

Note: See Fig. C

$

$

Not available

32

Homelite 678824004

U-Clip (M6)

$2.49

$

In Stock, only 1 left!

0

33

Homelite 570371008

Handle Bumper

$

$

Not available

34

Homelite 330073008

Front Wheel Assembly

$

$

Not available

35

Homelite 638496062

Foot

$

$

Not available

36

Homelite 570554001

Rubber Wear Pad

$

$

Not available

37

Homelite 638128004

Washer (1/4 in.)

$2.49

$

In Stock, Qty 5

0

38

Homelite 681866010

Axle

$10.99

$

Usually ships in 3-7 days

0

39

Homelite 678146004

Hitch Pin

$

$

Not available

40

Homelite 638275002

Washer (1/2 in.)

$2.49

$

In Stock, only 4 left!

0

41

Homelite 290432044

Control Module Assembly

$391.99

$

Usually ships in 3-7 days

0

42

Engine, Ducar 212cc Inverter EZSRT 2019

Note: See Fig. D

$

$

Not available

43

Homelite 941486008

Inquires Label (Ryobi)

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 940947025

Combustion Label

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 941807005

Monitoring System Label

$7.99

$

Usually ships in 3-7 days

0

46

Homelite 941211001

Co Instruction & Warning Label

$

$

Currently unavailable

47

Homelite 940515017

CPSC Danger Label

$3.49

$

Usually ships in 3-7 days

0

48

Homelite 940654413

Danger Icon Label

$9.49

$

Usually ships in 3-7 days

0

49

Homelite 940872003

No E85 Label

$2.49

$

In Stock, only 2 left!

0

50

Homelite 941209003

Exhaust Direction Label

$

$

Currently unavailable

51

Homelite 940974089

Fire Distance Label (Eng/Sp)

$3.49

$

Usually ships in 3-7 days

0

52

Homelite 940974007

Risk of Fire Danger Label

$

$

Not available

53

Homelite 940872022

Remove Cap Fuel Stabilizer Label (English)

$

$

Not available

54

Homelite 940513030

Ground Warning Label (English/French)

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 940705449

Tank Logo Label

$10.99

$

Usually ships in 3-7 days

0

56

Homelite 940708019

Engine Lubricant Label

$3.49

$

Usually ships in 3-7 days

0

57

Homelite 940971087

Warning Hangtag

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 940705448

Performance Label

$

$

Currently unavailable

59

Homelite 940514001

Locking Pin Label

$2.49

$

Usually ships in 3-7 days

0

60

Homelite 940633057

Engine Recoil Label

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 940734189

Start Label

$3.99

$

Usually ships in 3-7 days

0

62

Homelite 940872027

Fuel Stabilizer Label (Fr/Sp)

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 940680064

Hot Surface Label

$2.49

$

Usually ships in 3-7 days

0

64

Homelite 940734192

Off Label

$2.49

$

Usually ships in 3-7 days

0

65

Homelite 940734191

On Label

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 941207016

Led Warning Label

$

$

Currently unavailable

67

Homelite 290404022

Ground Wire

$7.99

$

Usually ships in 3-7 days

0

68

Invert Module assembly

Note: See Fig. E

$

$

Not available

69

Homelite 638704001

Washer (5/16 in., External Star)

$3.49

$

Usually ships in 3-7 days

0

70

Homelite 638704002

Star Washer (ID6.4 x OD11 x 0.6t)

$2.49

$

Usually ships in 3-7 days

0

71

Homelite 662979003

Bolt (M6 x 40 mm, Flange Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

Homelite 995000894

Spark Arrestor Screen Insert Sheet

Note: Not Shown

$

$

Currently unavailable

Homelite 995000700

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 995000701

Quick Start Guide

Note: Not Shown

$

$

Currently unavailable
