RY RM8002 (099262002) - Ryobi 42" Zero-Turn Mower, Rev 01 (2022-08) FIGURE D - DECK ASSEMBLY Parts Diagram

42" Zero-Turn Mower, Rev 01

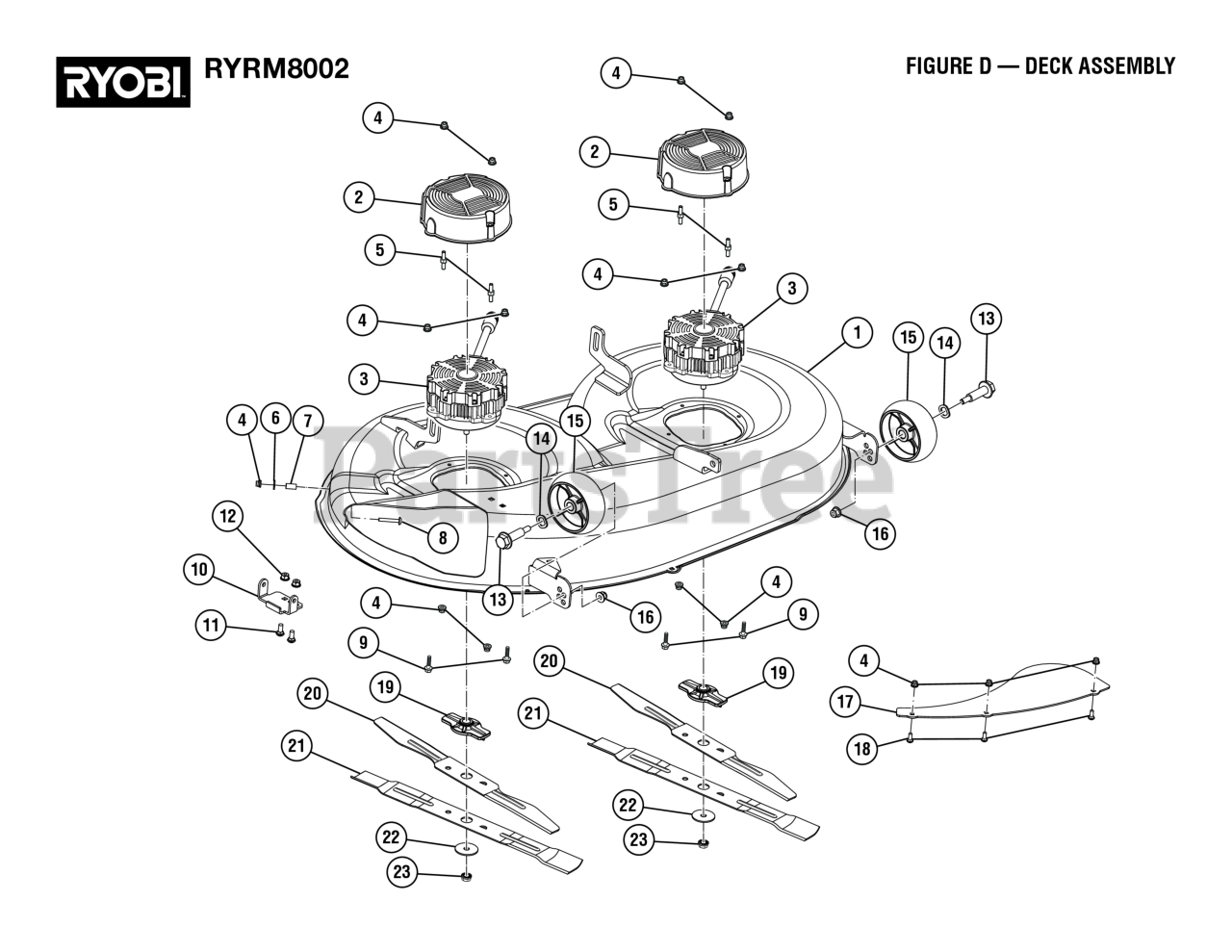

FIGURE D - DECK ASSEMBLY Parts Diagram

  • Title

1

Homelite 997020001

Deck, 42 in

$750.99

$

Usually ships in 3-7 days

0

2

Homelite 997932001

Motor Cover

$9.49

$

Usually ships in 3-7 days

0

3

Homelite 997933001

Deck Motor

$1069.99

$

Usually ships in 3-7 days

0

4

Homelite 996251001

Flange Lock Nut (M6 x 1.00)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 997000232

Stud (M6)

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 996034001

Washer (OD18 x ID6.4 x 1.6t)

$4.49

$

In Stock, Qty 14

0

7

Homelite 996039001

Deck Bagger Chute Mounting Shaft

$3.49

$

Usually ships in 3-7 days

0

8

Homelite 996250001

Screw (M6 x 40, Soc Hd.)

$3.49

$

Usually ships in 3-7 days

0

9

Homelite 996057001

Flange Bolt (M6 x 25 mm, Hex Hd.)

$3.49

$

In Stock, only 3 left!

0

10

Homelite 997000175

Deck Bracket

$22.99

$

In Stock, only 2 left!

0

11

Homelite 996050001

Carriage Bolt (M8 x 20 mm)

$3.49

$

Usually ships in 3-7 days

0

12

Homelite 994867001

Flange Nut (M8) (For Drive Motor Controller V)

$2.49

$

In Stock, only 2 left!

0

13

Homelite 996205001

Shoulder Bolt (M10 x 70 mm)

$23.99

$

Usually ships in 3-7 days

0

14

Homelite 996355001

Spring Washer (OD20.5 x ID17 x 0.3t)

$4.49

$

Usually ships in 3-7 days

0

15

Homelite 996265001

Front Deck Roller Wheel (124.5 Dia.)

$37.99

$

Usually ships in 3-7 days

0

16

Homelite 996261001

Flange Lock Nut (M10 x 1.25)

$2.99

$

In Stock, Qty 7

0

17

Homelite 997074001

Deck Baffle (42 in.)

$18.99

$

Usually ships in 3-7 days

0

18

Homelite 994791001

Carriage Bolt (M6 x 16 mm)

$3.49

$

Usually ships in 3-7 days

0

19

Homelite 997920001

Crosscut Blade Adapter

$11.99

$

Usually ships in 3-7 days

0

20

Homelite 682533001

21 in. Top Blade, Stepped

$

$

Not available

21

Homelite 682282001

21 in. Blade

$45.99

$

In Stock, only 2 left!

0

22

Homelite 997028001

Blade Retainer Washer

$6.99

$

In Stock, only 2 left!

0

23

Homelite 996261001

Flange Lock Nut (M10 x 1.25)

$2.99

$

In Stock, Qty 7

0
