RY RM8002 (099262002) - Ryobi 42" Zero-Turn Mower, Rev 01 (2022-08) FIGURE J - PANEL HOUSING Parts Diagram

42" Zero-Turn Mower, Rev 01

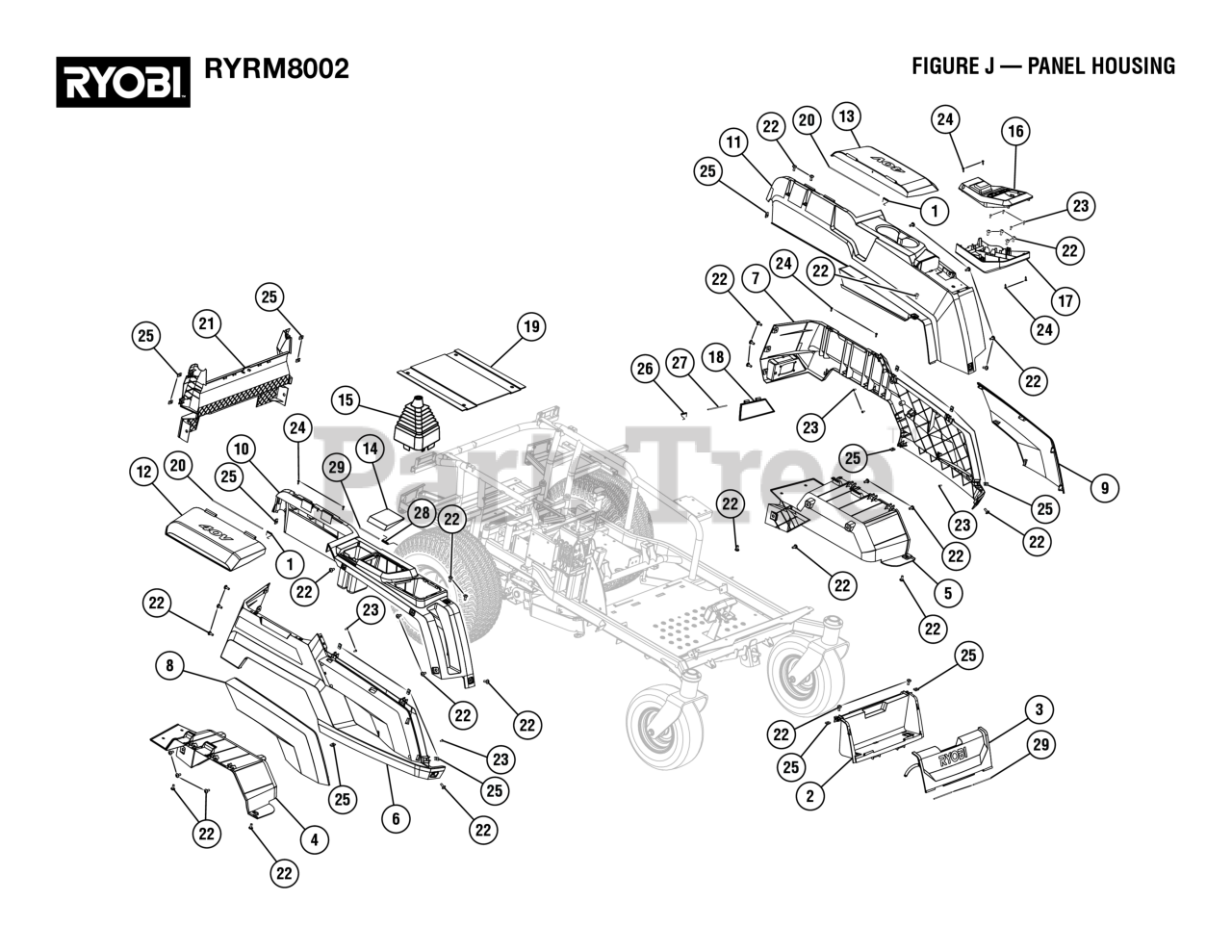

FIGURE J - PANEL HOUSING Parts Diagram

  • Title

1

Homelite 997000221

Battery Cover Spring

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 997956001

Front Pocket

$11.99

$

Usually ships in 3-7 days

0

3

Homelite 997955001

Front Pocket Door

$8.49

$

Usually ships in 3-7 days

0

4

Homelite 997941001

Wheel Well (Right)

$17.99

$

Usually ships in 3-7 days

0

5

Homelite 997940001

Wheel Well (Left)

$17.99

$

Usually ships in 3-7 days

0

6

Homelite 997937001

Fender (Right)

$42.99

$

Usually ships in 3-7 days

0

7

Homelite 997936001

Fender (Left)

$42.99

$

Usually ships in 3-7 days

0

8

Homelite 997935001

Trim Panel (Right)

$11.99

$

Usually ships in 3-7 days

0

9

Homelite 997934001

Trim Panel (Left)

$10.99

$

Usually ships in 3-7 days

0

10

Homelite 997939001

Console (Right)

$55.99

$

Usually ships in 3-7 days

0

11

Homelite 997938001

Console (Left)

$57.99

$

Usually ships in 3-7 days

0

12

Homelite 997000223

40V Battery Lid (Right)

$31.99

$

Usually ships in 3-7 days

0

13

Homelite 997947001

40V Battery Lid (Left)

$31.99

$

Usually ships in 3-7 days

0

14

Homelite 997967001

Storage Lid

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 994000001

Joystick Bellow Assembly

$22.99

$

Usually ships in 3-7 days

0

16

Homelite 997949001

LCD Upper Cover

$20.99

$

Usually ships in 3-7 days

0

17

Homelite 997948001

LCD Lower Cover

$10.99

$

Usually ships in 3-7 days

0

18

Homelite 997970001

Charging Door

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 997954001

Controller Cover

$24.99

$

Usually ships in 3-7 days

0

20

Homelite 997000220

Battery Cover Hinge Pin

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 997942001

Rear Cover

$16.99

$

Usually ships in 3-7 days

0

22

Homelite 994989001

Screw (M6 x 10 mm, Soc. Button Hd.)

$1.99

$

In Stock, only 4 left!

0

23

Homelite 996297001

Screw (M4 x 10 mm, Pan Hd.)

$

$

Not available

24

Homelite 997094001

Screw (M3 x 12 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 994785001

Clip-On Nut (M6)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 997000194

Charger Door Spring

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 997000195

Charger Door Hinge

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 997999001

Storage Bin Spring

$

$

Currently unavailable

29

Homelite 997000214

Storage Box Hinge Pin

$1.49

$

Usually ships in 3-7 days

0
