RY SST44 VNM (095110103) - Ryobi Expand-It Straight Shaft Trimmer Attachment, Rev 03 (2021-08) General Assembly Parts Diagram

Expand-It Straight Shaft Trimmer Attachment, Rev 03

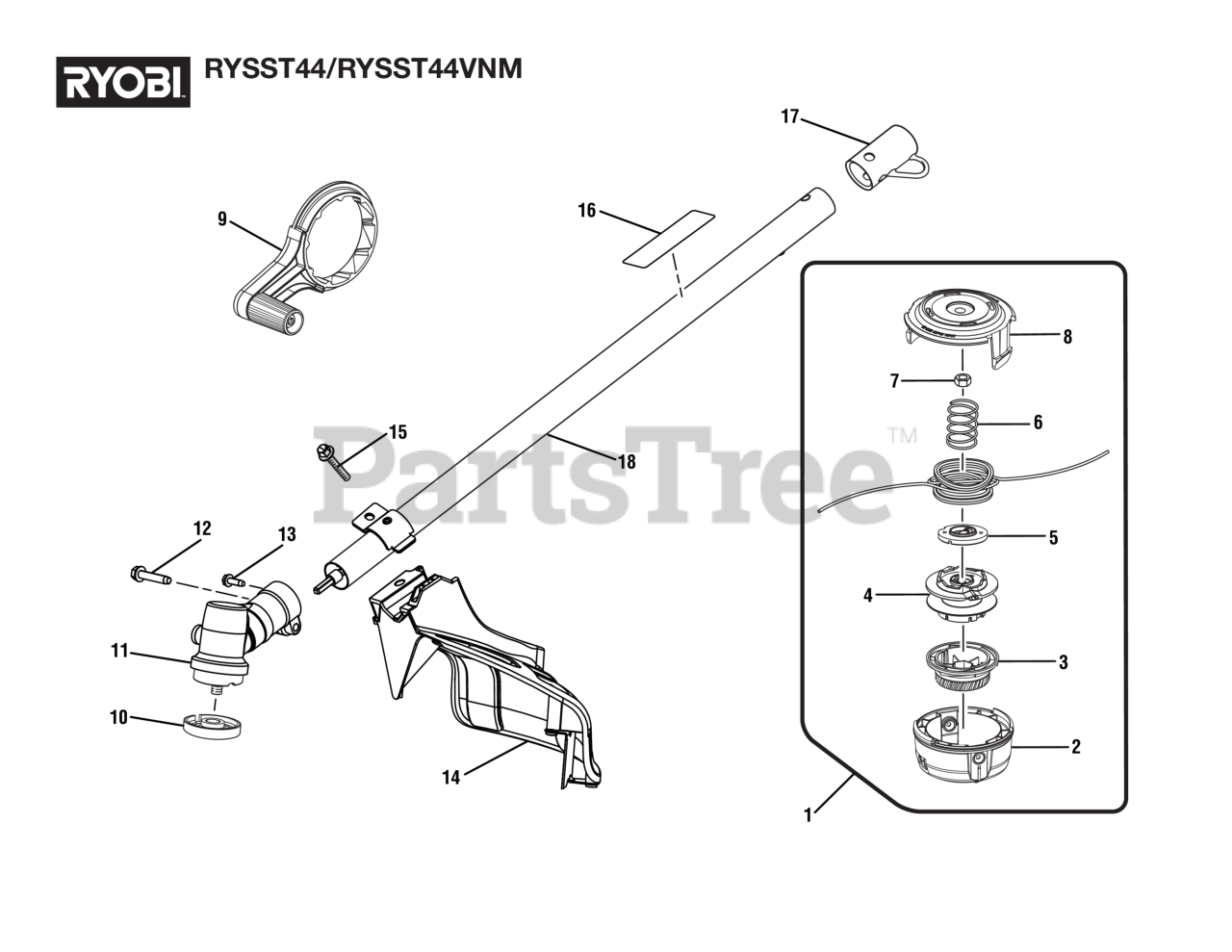

General Assembly Parts Diagram

  • Title

1

Homelite 311759015

ARBORLESS, RYOBI SS ATTACHMENT

Note: (Inc. Key Nos. 2-8)

$16.99

$

Usually ships in 3-7 days

0

2

Homelite 530366001

Lower Housing

$4.99

$

Usually ships in 3-7 days

0

3

Homelite 530455002

Bump Knob (Green)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 530670001

Spool Assembly

$1.99

$

In Stock, only 2 left!

0

5

Homelite 529803001

String Guide

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 678749001

Compression Spring

$1.49

$

In Stock, only 4 left!

0

7

Homelite 695215001

Hex Nut (M8, Left Hand Threads)

$

$

Not available

8

Homelite 530001001

Upper Housing

$

$

Not available

9

Homelite 312283001

Crank Handle Assembly

$1.99

$

In Stock, Qty 5

0

10

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

11

Homelite 308210009

Gear Case Assembly

$28.99

$

In Stock, only 1 left!

0

12

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 660641001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 308473005

Grass Deflector Assembly

Note: (Inc. Key No. 15)

$9.99

$

Usually ships in 3-7 days

0

15

Homelite 660738002

SCREW (#1/4-20 X 1-1/4 in. HEX WASHER HD.)
(Superseded to 983379078)

$

$

Not available

16

Homelite 940657165

Warning Icon Label

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 518019002

Storage Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

18

Homelite 308035047

Straight Shaft Assembly

Note: (Inc. Key Nos. 16-17)

$22.99

$

Usually ships in 3-7 days

0

Homelite 995000172

Operator's Manual

Note: Not Shown

$

$

Not available
