RY SWP25 (090709001) - Ryobi Expand-It Power Sweeper Attachment, Rev 01 (2017-12) General Assembly Parts Diagram

Expand-It Power Sweeper Attachment, Rev 01

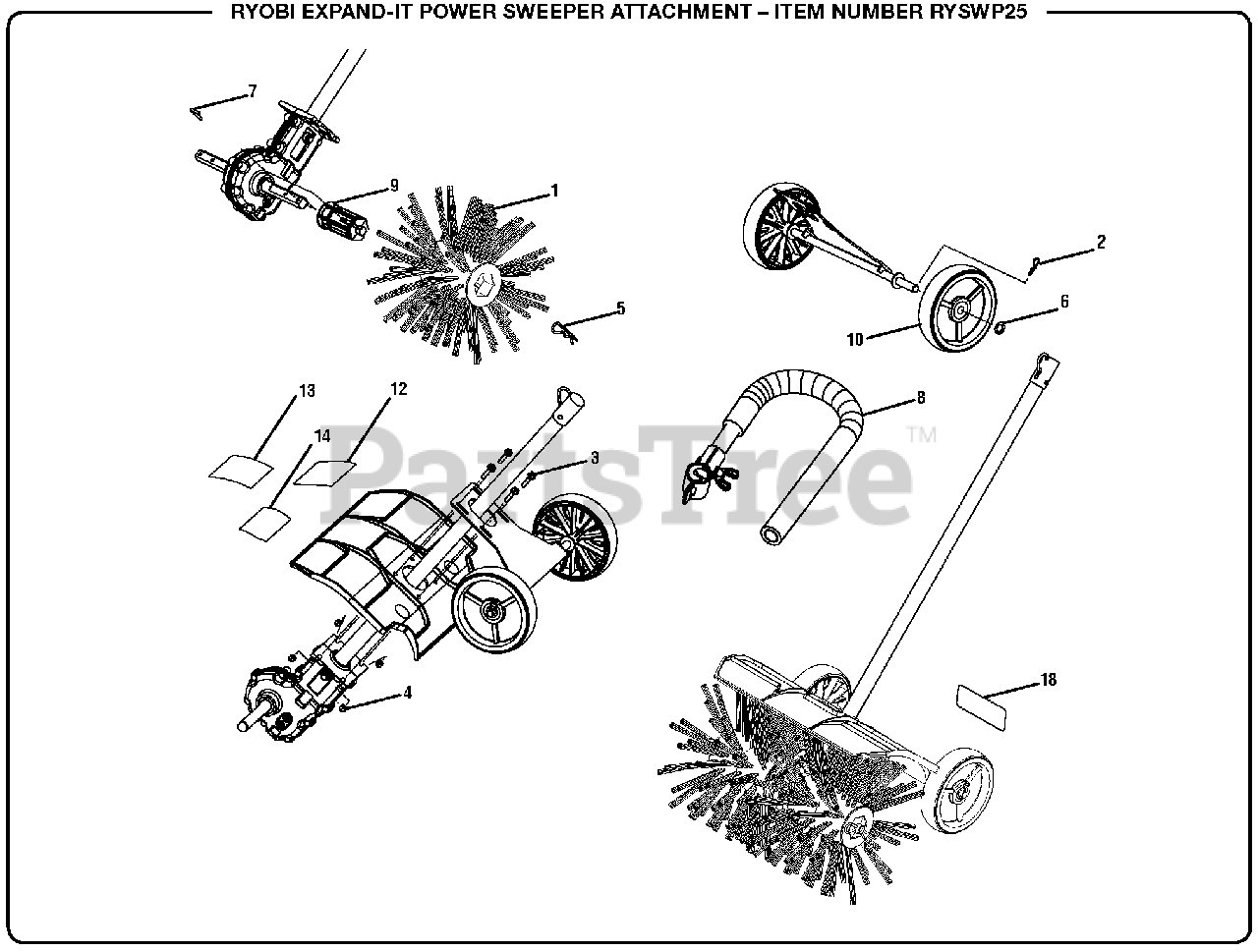

General Assembly Parts Diagram

  • Title

1

Homelite 533675001

Brush

$121.99

$

Usually ships in 3-7 days

0

2

Homelite 639223001

Hitch Pin

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 660975014

Bolt (M6 x 25 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 678460001

Lock Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 678146002

Hitch Pin (M3)

$3.49

$

Usually ships in 3-7 days

0

6

Homelite 639113003

Washer (ID13.5 x OD20 x 1t)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 673756001

Holding Pin

$

$

Not available

8

Homelite 308046009

J-Bar Handle

$31.99

$

Usually ships in 3-7 days

0

9

Homelite 533972001

Brush Assembly Adapter

$22.99

$

Usually ships in 3-7 days

0

10

Homelite 531503001

Wheel (150 mm)

$12.99

$

Usually ships in 3-7 days

0

11

Homelite 941588218

Icon Warning Label

$

$

Not available

12

Homelite 941588219

Left Power Label

$

$

Not available

13

Homelite 941588220

Center Expand-It Label

$

$

Not available

14

Homelite 941588221

Right Sweeper Label

$

$

Not available

Homelite 995000341

Operator's Manual

Note: Not Shown:

$

$

Currently unavailable
