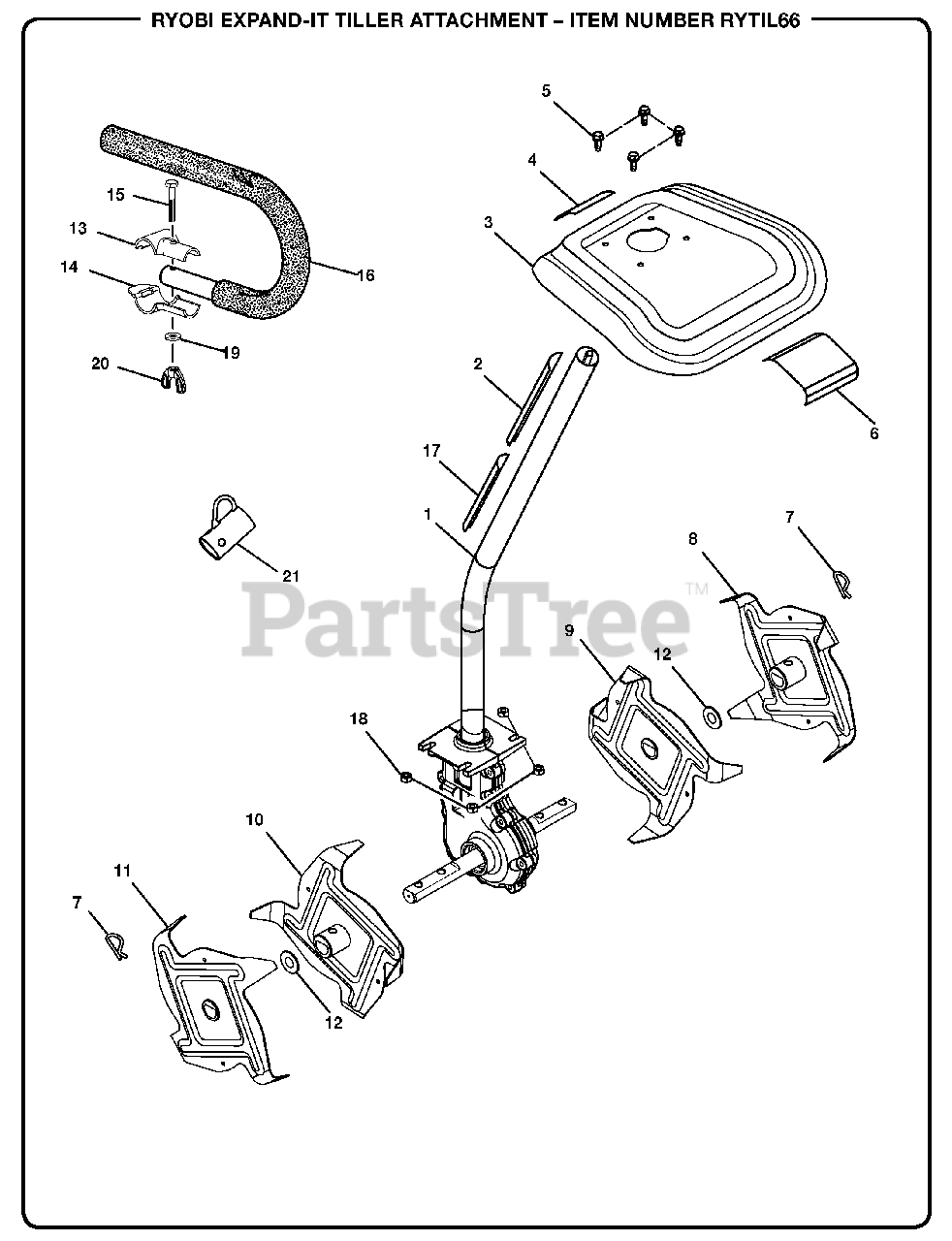

RY TIL66 (090119016) - Ryobi Expand-It Tiller Attachment General Assembly Parts Diagram

Expand-It Tiller Attachment

General Assembly Parts Diagram

  • Title

1

Homelite 120530015

Gear Case and Drive Shaft Assembly

Note: (Inc. Key Nos. 2 and 17)

$133.99

$

Usually ships in 3-7 days

0

2

Homelite 940657031

Warning Label

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 120530016

Tine Shield Assembly

Note: (Inc. Key Nos. 4 and 6)

$18.99

$

Usually ships in 3-7 days

0

4

Homelite 940705022

Logo Label

$

$

Not available

5

Homelite 660955001

Screw (1/4-20 x 5/8 in.)

$

$

Not available

6

Homelite 940654015

Warning Label
(Superseded to UT15550A-34)

$

$

Not available

7

Homelite 638001004

Hitch Pin (3/4 in.)
(Superseded to UT15550A-35)

$1.49

$

In Stock, Qty 5

0

8

Homelite 308693004

Tine Assembly D
(Superseded to UT15550A-28)

$23.99

$

Usually ships in 3-7 days

0

9

Homelite 308693003

Tine Assembly C

$23.99

$

Usually ships in 3-7 days

0

10

Homelite 308693002

Tine Assembly B

$

$

Not available

11

Homelite 308693001

Tine Assembly A

$23.99

$

Usually ships in 3-7 days

0

12

Homelite 900755001

Felt Washer
(Superseded to UT15550A-36)

$1.49

$

In Stock, Qty 14

0

13

Homelite 638564001

Top "J" Handle Clamp

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 638565001

Bottom "J" Handle Clamp

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 660643001

Bolt (1/4'20 x 1-1/2 in., Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 308046005

"J" Handle and Grip
(Superseded to 308046009)

$15.99

$

Usually ships in 3-7 days

0

17

Homelite 940726013

Logo Label

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 678132001

Lock Nut (1/4-20)

$

$

Not available

19

Homelite 678013001

Washer

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$1.49

$

In Stock, only 3 left!

0

21

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

Homelite 991000560

Operator's Manual

Note: NOT SHOWN

$

$

Not available
