RY TIL66 VNM (095119103) - Ryobi Expand-It Tiller Attachment, Rev 03 (2021-08) General Assembly Parts Diagram

Expand-It Tiller Attachment, Rev 03

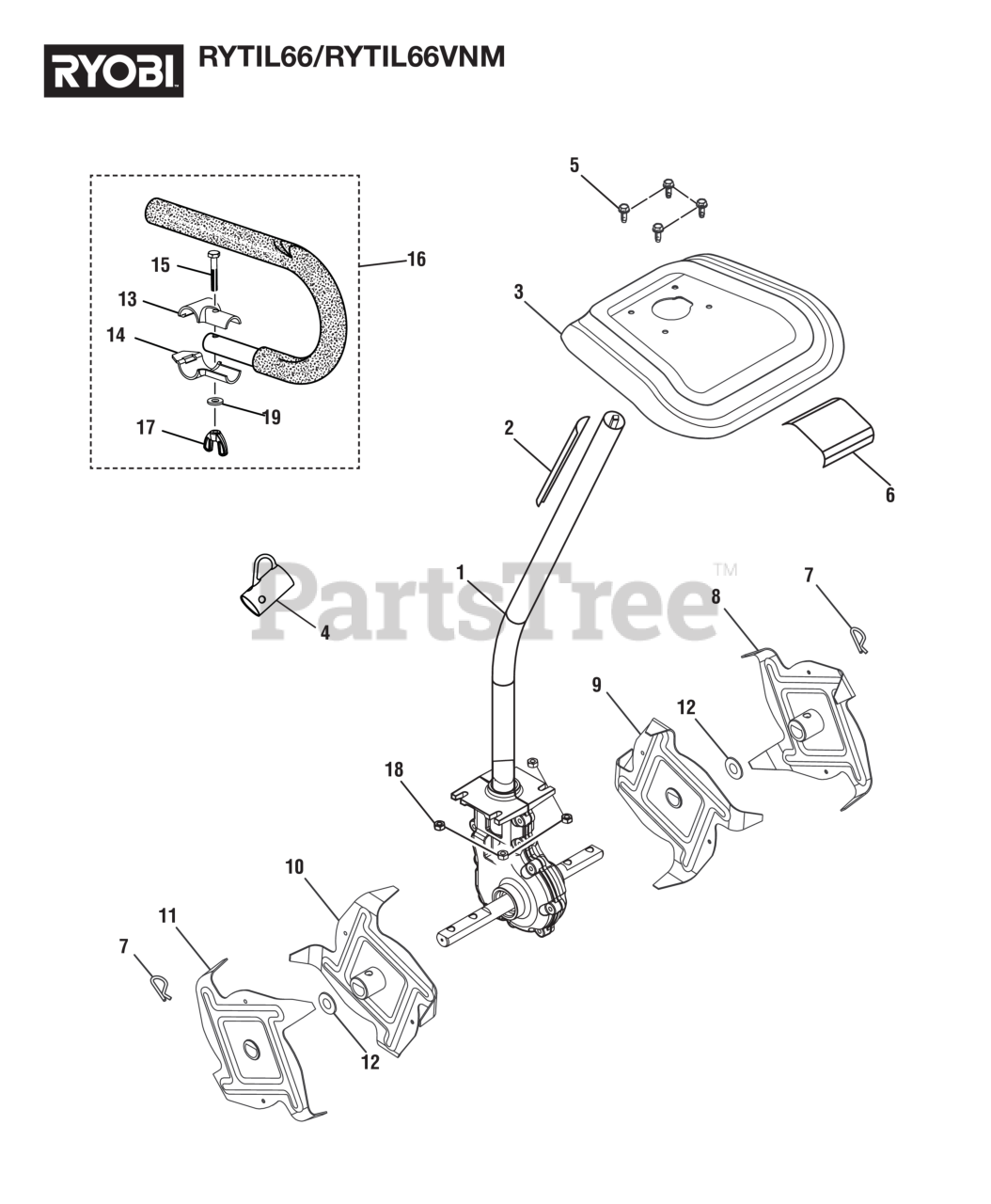

General Assembly Parts Diagram

  • Title

1

Homelite 120530015

Gear Case and Drive Shaft Assembly

$133.99

$

Usually ships in 3-7 days

0

2

Homelite 940657031

Warning Label

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 120530016

Tine Shield Assembly

Note: (Inc. Key No. 6)

$18.99

$

Usually ships in 3-7 days

0

4

Homelite 518019002

Storage Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

5

Homelite 660955001

Screw (1/4-20 x 5/8 in.)

$

$

Not available

6

Homelite 940654015

Warning Label
(Superseded to UT15550A-34)

$

$

Not available

7

Homelite 638001004

Hitch Pin (3/4 in.)
(Superseded to UT15550A-35)

$1.49

$

In Stock, Qty 5

0

8

Homelite 308693012

Tine Assembly D

$25.99

$

Usually ships in 3-7 days

0

9

Homelite 308693011

Tine Assembly C

$25.99

$

Usually ships in 3-7 days

0

10

Homelite 308693010

Tine Assembly B

$25.99

$

Usually ships in 3-7 days

0

11

Homelite 308693009

Tine Assembly A

$25.99

$

Usually ships in 3-7 days

0

12

Homelite 900755001

FELT WASHER
(Superseded to UT15550A-36)

$1.49

$

In Stock, Qty 14

0

13

Homelite 638564004

Top "J" Handle Clamp

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 638565004

Bottom "J" Handle Clamp

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 662724001

Bolt (1/4-20 x 1-1/2 in., Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 308046009

"J" Handle and Grip

$15.99

$

Usually ships in 3-7 days

0

17

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$1.49

$

In Stock, only 3 left!

0

18

Homelite 678132001

LOCK NUT (1/4-20)

$

$

Not available

19

Homelite 678013001

Washer (ID7.25 x OD16 x 1.5t)

$1.49

$

Usually ships in 3-7 days

0

Homelite 991000560

Operator's Manual

Note: Not Shown

$

$

Not available
