RYT 16D334K (80170) - Snapper 33" Yard Tractor, 16hp Electric System Components Parts Diagram

33" Yard Tractor, 16hp

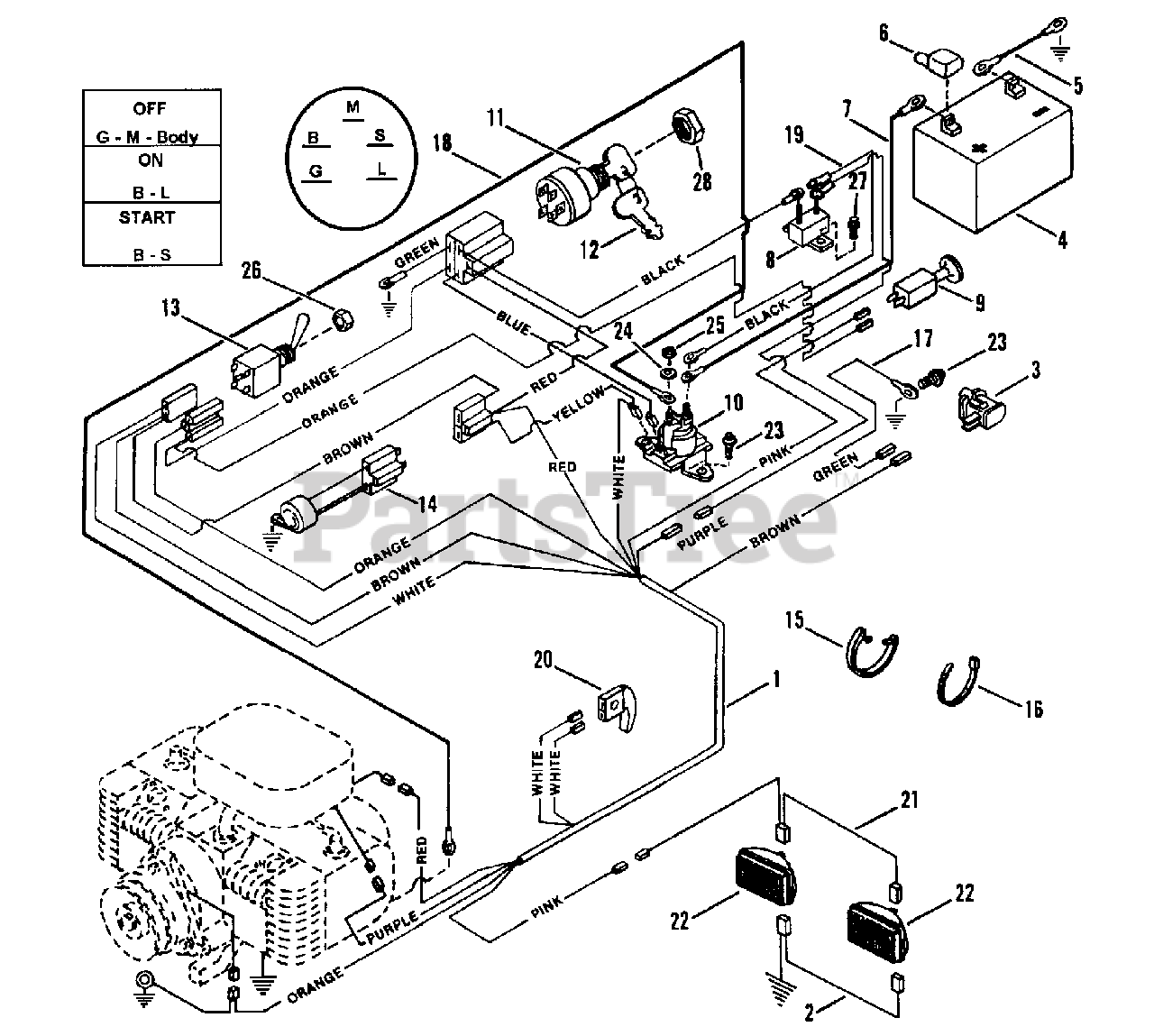

Electric System Components Parts Diagram

  • Title

1

Snapper 7017045

HARNESS, Wiring - B&S

$

$

Not available

1

Snapper 7017016

HARNESS, Wiring - Kohler

$

$

Not available

2

Snapper 7028996

HARNESS, Ground
(Superseded to 7028996YP)

Note: Was 15487

$6.49

$

Usually ships in 2-12 days

0

3

Snapper 7017589

SWITCH, Seat Interlock (NO)
(Superseded to 7017589YP)

$

$

Not available

4

Snapper 7060974

KIT, Battery 12 Volt, 20 AMP HR
(Superseded to 7060974YP)

$161.99

$

Usually ships in 2-12 days

0

5

Snapper 7011859

CABLE, Negative
(Superseded to 7011859YP)

$8.99

$

Usually ships in 2-12 days

0

6

Snapper 7023342

COVER, Positive Terminal

$

$

Currently unavailable

7

Snapper 7023149

CABLE, Solenoid to Batt. (11")
(Superseded to 7023149YP)

$6.49

$

Usually ships in 2-12 days

0

8

Snapper 7013941

CIRCUIT-BREAKER
(Superseded to 1665238SM)

$14.99

$

In Stock, Qty 9

0

9

Snapper 7018623

SWITCH, Headlamp

$

$

Not available

10

Snapper 7075622

SOLENOID
(Superseded to 1755382YP)

Note: Was 18604

$29.99

$

In Stock, Qty 10

0

11

Snapper 7027698

KEYSWITCH
(Superseded to 7027698YP)

Note: Was 18562 (Incl. item 12)

$32.99

$

In Stock, only 1 left!

0

12

Snapper 7011138

KEY (Set of 2)
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 8

0

13

Snapper 7019545

SWITCH, PTO
(Superseded to 7019545YP)

$44.99

$

Usually ships in 2-12 days

0

14

Snapper 7063066

MODULE, Interlock - B&S
(Superseded to 7063066YP)

Note: Was 18571

$149.99

$

Usually ships in 2-12 days

0

14

Snapper 7018999

MODULE, Interlock - Kohler
(Superseded to 7018999YP)

$38.99

$

Usually ships in 2-12 days

0

15

Snapper 7014451

TIE, Wire
(Superseded to 7014451YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7012080

TIE, Cable
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper 7014870

WIRE, Seat Switch to Ground

$2.49

$

In Stock, only 1 left!

0

18

Snapper 7014477

CABLE, Solenoid/Starter (36")
(Superseded to 7014477YP)

$6.49

$

In Stock, only 2 left!

0

19

Snapper 7014478

WIRE, Breaker to Solenoid
(Superseded to 7014478YP)

$6.49

$

Usually ships in 2-12 days

0

20

Snapper 7018524

SWITCH, Clutch Interlock
(Superseded to 7018524YP)

$19.99

$

Usually ships in 2-12 days

0

21

Snapper 7028829

HARNESS, Headlamp
(Superseded to 7028829YP)

Note: Was 15486

$11.99

$

Usually ships in 2-12 days

0

22

Snapper 7018829

HEAD-LAMP
(Superseded to 7018829YP)

$59.99

$

Usually ships in 2-12 days

0

23

Snapper 7091819

SCREW, 1/4-20 X 5/8" Hex Washer Self-Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, only 1 left!

0

24

Snapper 7090053

WASHER, 1/4 Int. Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 13

0

25

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, only 3 left!

0

26

Snapper 7012686

NUT, Special 1/2-27 Hex
(Superseded to 7012686YP)

$5.49

$

Usually ships in 2-12 days

0

27

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 12

0

28

Snapper 7012685

NUT, Special 5/8-32 Hex
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0
