RZ 3016 (966042901) - Husqvarna 30" Zero-Turn Mower (2009-04) Ignition Parts Diagram

30" Zero-Turn Mower

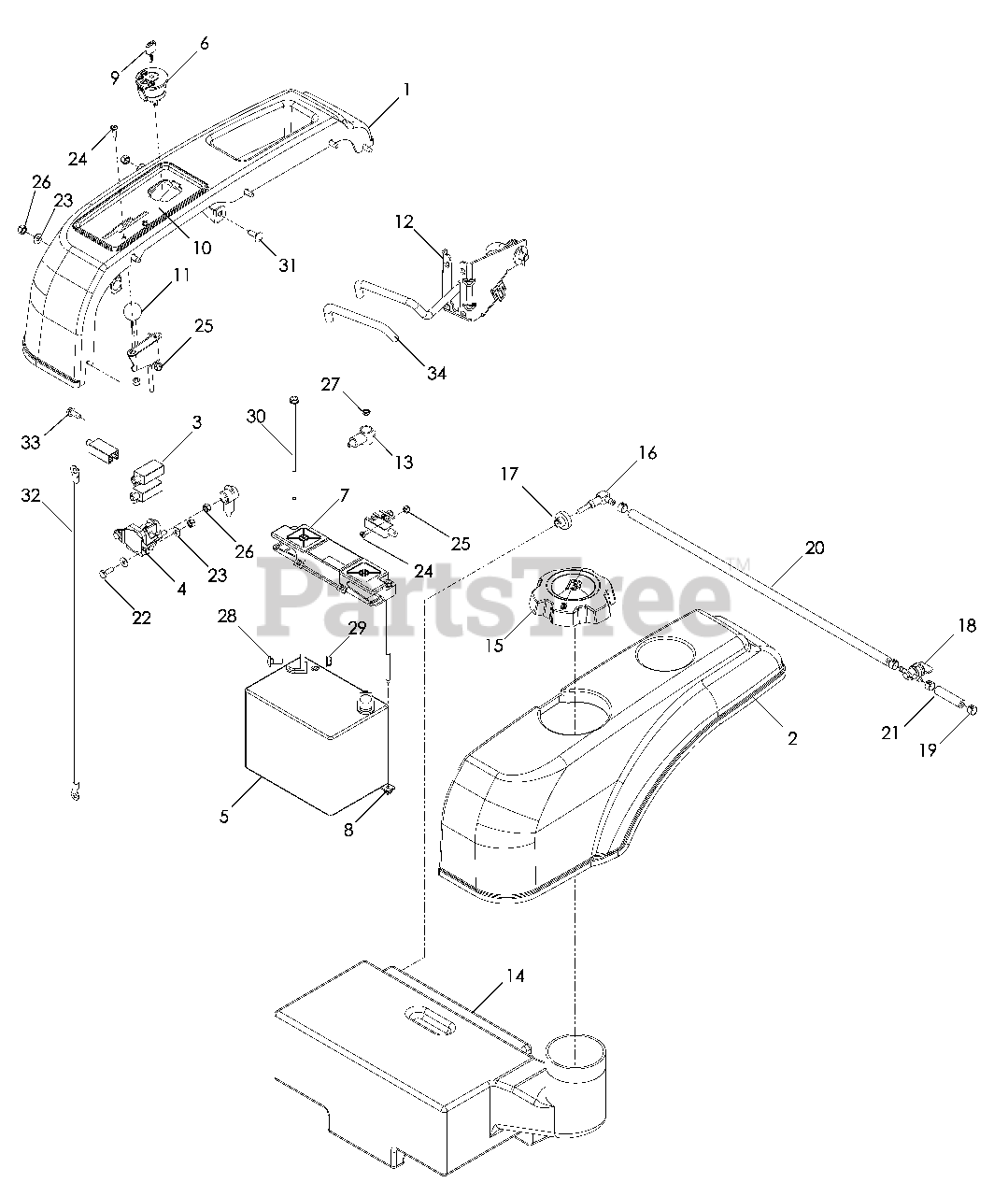

Ignition Parts Diagram

  • Title

1

Husqvarna 525594701

FENDER, RH

Note:

$20.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525594702

FENDER, LH

Note:

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539101080

SWITCH

Note:

$7.49

$

In Stock, Qty 20+

0

4

Husqvarna 539101714

SOLENOID

Note:

$26.99

$

In Stock, Qty 20+

0

5

Husqvarna 539102436

BATTERY
(Superseded to 579411601)

Note:

$

$

Not available

6

Husqvarna 539107541

SWITCH, IGNITION
(Superseded to 532175566)

Note:

$12.99

$

In Stock, Qty 20+

0

7

Husqvarna 539107628

BATTERY HOLD DOWN

Note:

$10.99

$

In Stock, Qty 5

0

8

Husqvarna 539107629

NUT ¼ PUSH NYLON

Note:

$4.99

$

In Stock, Qty 7

0

9

Husqvarna 539107544

KEY, IGNITION
(Superseded to 532140401)

Note:

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 525598602

PANEL, CONTROLS

Note:

$

$

Currently unavailable

11

Husqvarna 522730101

CABLE, THROTTLE

Note:

$30.99

$

In Stock, only 1 left!

0

Husqvarna 525829302

CLUTCH ASSM w/ CABLE

Note:

$

$

Not available

12

Husqvarna 532193235

CABLE, CLUTCH

Note:

$47.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539116400

TERMINAL COVER, SM

Note:

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539120195

TANK, FUEL
(Superseded to 574790702)

Note:

$85.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539130393

CAP, FUEL

Note:

$

$

Not available

16

Husqvarna 539124804

ELBOW w/ FILTER

Note:

$

$

Not available

17

Husqvarna 539126217

FITTING, TANK

Note:

$

$

Not available

18

Husqvarna 539119272

VALVE, FUEL

Note:

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539912222

CLAMP, HOSE

Note:

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 539115743

HOSE ¼ x 21
(Superseded to 539115707)

Note:

$8.99

$

In Stock, only 2 left!

0

21

Husqvarna 539121486

HOSE, ¼ x 2

Note:

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990580

HCS ¼-20 x ¾

Note:

$3.99

$

In Stock, only 4 left!

0

23

Husqvarna 539990055

WASHER ¼ FLAT SAE

Note:

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539976952

SCREW #10-24 x 5/8
(Superseded to 596039001)

Note:

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539976977

NUT #10-24 HEX NYLOC

Note:

$

$

Not available

26

Husqvarna 539976978

NUT ¼-20 HEX NYLOC
(Superseded to 595086601)

Note:

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539108120

NUT ¼-20 HEX THIN NYLOC

Note:

$3.99

$

In Stock, only 2 left!

0

28

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

Note:

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

Note:

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 539107632

BOLT ¼ x 7½

Note:

$

$

Not available

31

Husqvarna 539990074

RHSNB ¼-20 x ¾ GR2
(Superseded to 596238401)

Note:

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

Note:

$

$

Not available

33

Husqvarna 539990362

SCREW ¼-20 x 5/8 SLF TAP

Note:

$4.99

$

In Stock, Qty 12

0

34

Husqvarna 525868801

GRIP, CLUTCH
(Superseded to 525868802)

Note:

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539104974

CABLE, POSITIVE

Note: NOT SHOWN

$

$

Not available

Husqvarna 539103306

CABLE, POSITIVE LONG
(Superseded to 586108201)

Note: NOT SHOWN

$8.99

$

In Stock, only 2 left!

0

Husqvarna 525744301

WIRING HARNESS

Note: NOT SHOWN

$109.99

$

Usually ships in 3-10 days

0
