RZ 3016 BF (966495501) - Husqvarna 30" Zero-Turn Mower (2009-09) Steering Parts Diagram

30" Zero-Turn Mower

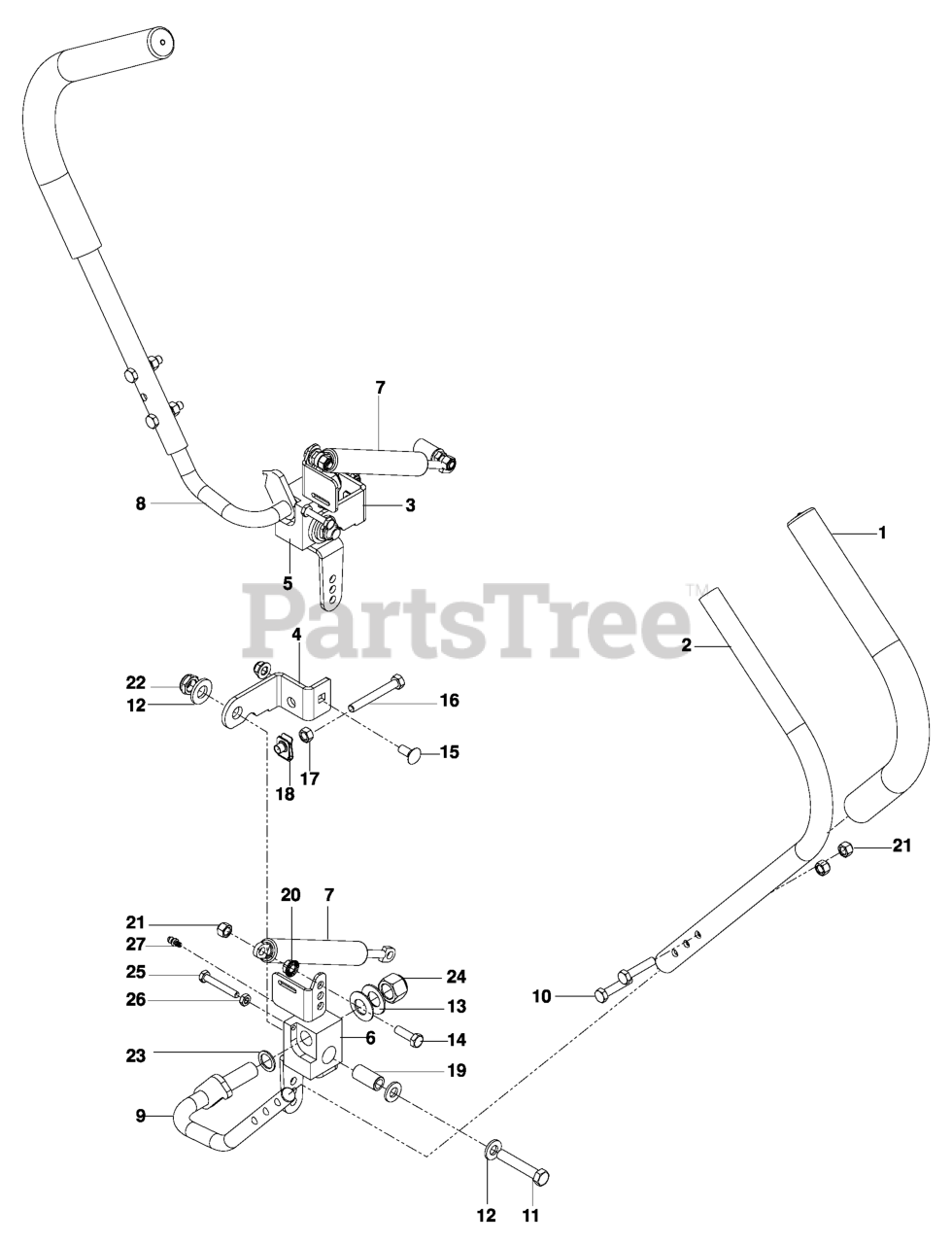

Steering Parts Diagram

  • Title

1

Husqvarna 539120899

GRIP

$13.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539120160

LEVER UPPER

$102.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539117949

FORWARD STOP RH

$45.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539117950

FORWARD STOP LH

$45.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539120984

PIVOT RH (PLATED)

$

$

Not available

6

Husqvarna 539120983

PIVOT LH (PLATED)

$

$

Not available

7

Husqvarna 539114453

DAMPENER, DUAL ACTION

$56.99

$

In Stock, only 2 left!

0

8

Husqvarna 539120159

LEVER.PLATED.RH

$205.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539120162

LEVER PLATED LH

$

$

Not available

10

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD
(Superseded to 596582201)

$3.49

$

In Stock, Qty 6

0

11

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 2 left!

0

12

Husqvarna 539990250

WASHER 1/2" FLAT
(Superseded to 595086801)

$3.49

$

In Stock, Qty 19

0

13

Husqvarna 539911121

WASH 5/8 BEVELED DISC SPRING

$

$

Not available

14

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.49

$

In Stock, Qty 19

0

15

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539108396

HCS 5/16-18 X 2 1/2 TPBLT
(Superseded to 596437101)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539990196

NUT 5/16C HEX
(Superseded to 596582601)

$3.49

$

In Stock, Qty 12

0

18

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539120956

BUSHING

$

$

Not available

20

Husqvarna 539990585

NUT 5/16C WHIZ
(Superseded to 596039201)

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$3.49

$

In Stock, only 2 left!

0

23

Husqvarna 539115570

WASHER-.626IDX.056TK

$

$

Not available

24

Husqvarna 539110340

NUT 5/8-11 NYLOC
(Superseded to 594977001)

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539991003

BOLT 1/4C X 1 3/4

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539991112

NUT 1/4-20 JAM
(Superseded to 597357701)

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.49

$

In Stock, Qty 20+

0
