RZ 3016 CA (966503701) - Husqvarna 30" Zero-Turn Mower, CARB (2010-01) Steering Parts Diagram

30" Zero-Turn Mower, CARB

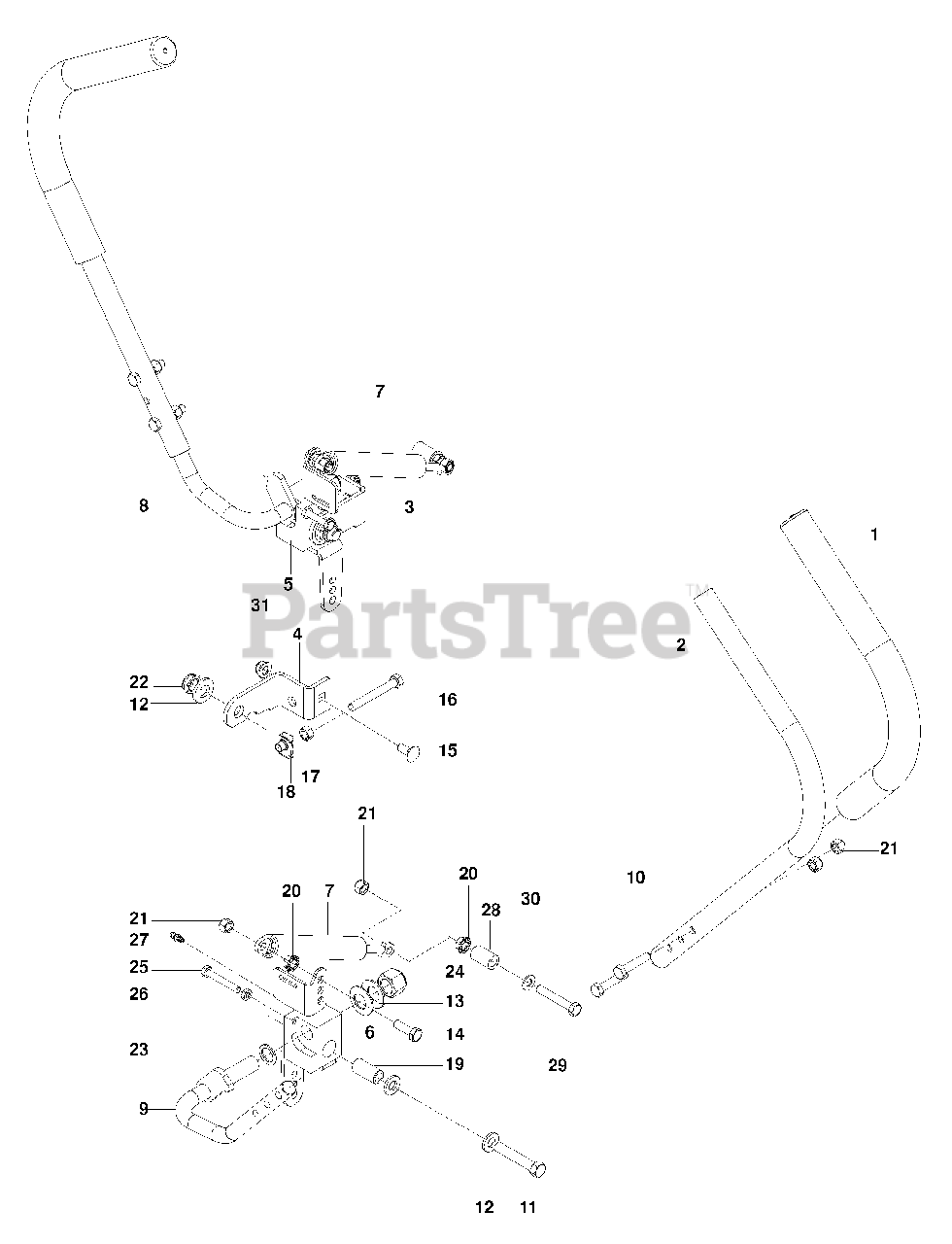

Steering Parts Diagram

  • Title

1

Husqvarna 539120899

GRIP

$9.99

$

In Stock, only 1 left!

0

2

Husqvarna 539120160

LEVER, UPPER

$109.99

$

In Stock, only 1 left!

0

3

Husqvarna 539117949

STOP, STEER CNTRL RH

$27.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539117950

STOP, STEER CNTRL LH

$27.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539120984

PIVOT, RH

$78.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539120983

PIVOT, LH

$

$

Not available

7

Husqvarna 539114453

DAMPENER

$74.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539120159

LOWER LEVER, RH

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539120162

LOWER LEVER, LH

$27.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539976935

HCS 5/16-18 x 1 1/2

$1.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539101332

HCS 1/2-13 x 2 3/4

$4.99

$

In Stock, only 4 left!

0

12

Husqvarna 539990250

WASHER 1/2 SAE

$1.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539911121

WASHER 5/8 BELLEVILLE

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539108396

HCS 5/16-18 x 2 1/2

$

$

Not available

17

Husqvarna 539990196

NUT, 5/16-18 HEX

$1.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 15

0

19

Husqvarna 539120956

BUSHING 1/2 ID x 3/4 OD

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539108010

NUT 1/2-13 JAM NYLOC GR 2

$4.99

$

In Stock, Qty 5

0

23

Husqvarna 539115570

WASHER, SPECIAL

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539110340

NUT 5/8-11 NYLOC

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539991003

HCS 1/4-20 x 13/4

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539991112

NUT 1/4-20 JAM

$3.99

$

In Stock, only 4 left!

0

27

Husqvarna 539115638

ZERK

$4.99

$

In Stock, Qty 13

0

28

Husqvarna 539119087

BUSHING

$9.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539976937

HCS 5/16-18 x 2

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990188

WASHER 5/16 SAE FLT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539112899

NUT 5/16-18 FLG HEX NYLOC
(Superseded to 594944401)

$4.99

$

In Stock, Qty 14

0
