RZ 3016 CA (966612302) - Husqvarna 30" Zero-Turn Mower, CARB (2011-03) BRAKE / REAR MOWER LIFT Parts Diagram

30" Zero-Turn Mower, CARB

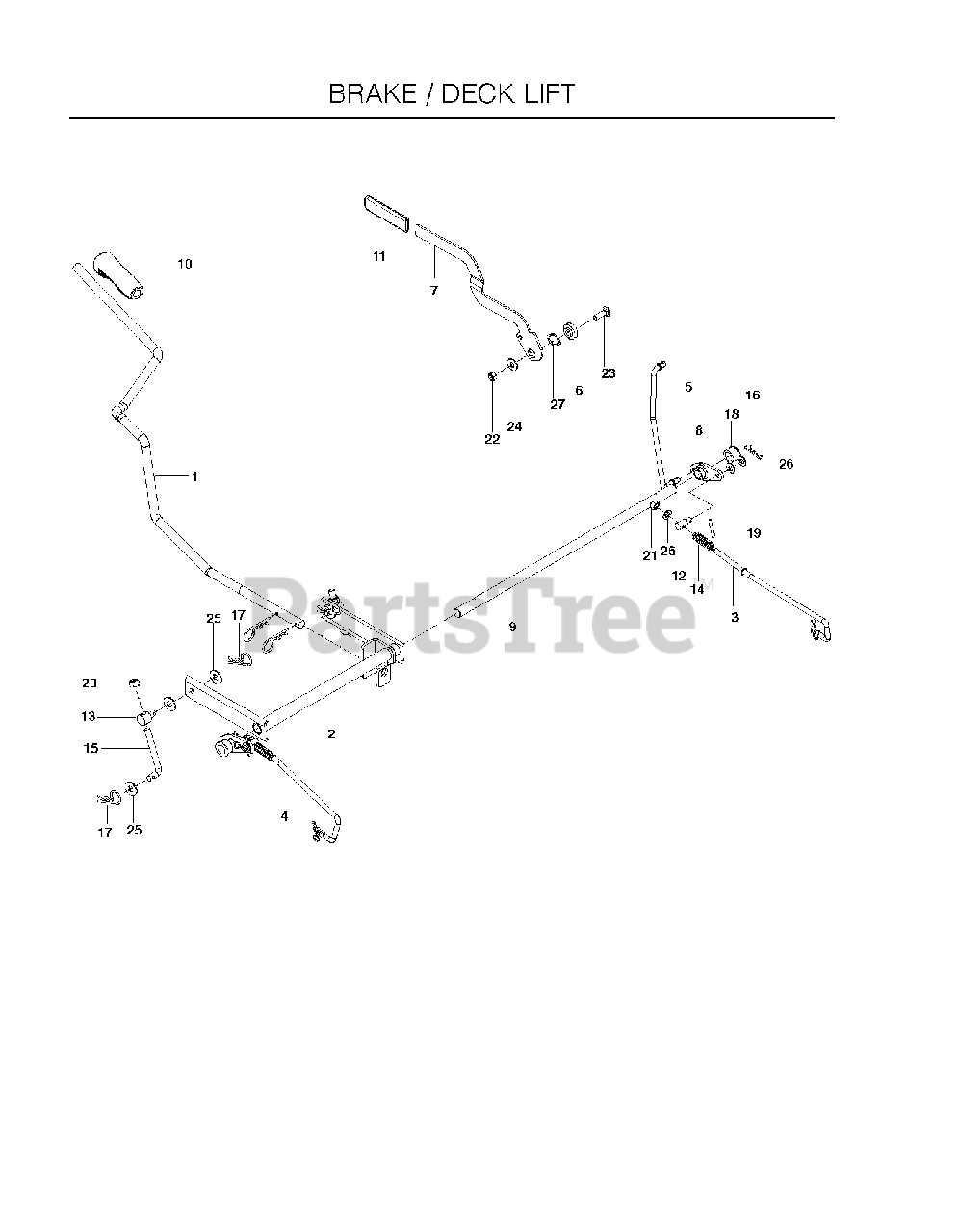

BRAKE / REAR MOWER LIFT Parts Diagram

  • Title

1

Husqvarna 525580402

ARM, LIFT HANDLE, BLK

$45.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525580604

WLDMT.LIFT.SHAFT.BLACK

$

$

Not available

3

Husqvarna 525583601

LINKAGE, EZT BRAKE RT

$31.99

$

In Stock, only 4 left!

0

4

Husqvarna 525583701

LINKAGE, EZT BRAKE LT

$

$

Not available

5

Husqvarna 525735701

LINKAGE, BRAKE, UPPER

$

$

Not available

6

Husqvarna 539120220

BRAKE ARM PIVOT

$

$

Not available

7

Husqvarna 525485602

HANDLE, BRAKE, BLK

$

$

Not available

8

Husqvarna 525580201

BELLCRANK, BRAKE

$

$

Not available

9

Husqvarna 525580301

ROD, BRAKE (2 2)

$

$

Not available

10

Husqvarna 532196492

GRIP.LEVER.5625.ID
(Superseded to 532411555)

$9.49

$

In Stock, Qty 5

0

11

Husqvarna 539120921

GRIP BRAKE HANDLE

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539112308

BRAKE SWIVEL

$10.99

$

In Stock, only 1 left!

0

13

Husqvarna 539118179

SWIVEL

$14.99

$

In Stock, only 2 left!

0

14

Husqvarna 539101224

SPRING

$26.99

$

In Stock, only 1 left!

0

15

Husqvarna 539115658

L-ROD 3.5

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539976988

HAIRPIN #2
(Superseded to 596580601)

$4.99

$

In Stock, only 3 left!

0

17

Husqvarna 539976989

HAIRPIN #4

$

$

Not available

18

Husqvarna 539109368

PLASTIC BUSHING

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539101082

ROLL PIN 3/16 X 1-1/4 ZD

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 539100413

RHSNB 3/8-16 X 1-1/4

$

$

Not available

24

Husqvarna 539102843

WASHER, 7/16 DISC SPRING
(Superseded to 539115528)

$

$

Not available

25

Husqvarna 539990517

RP WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 539133007

WASHER, .825 X 1.087, WAVE

$3.49

$

In Stock, Qty 20+

0
