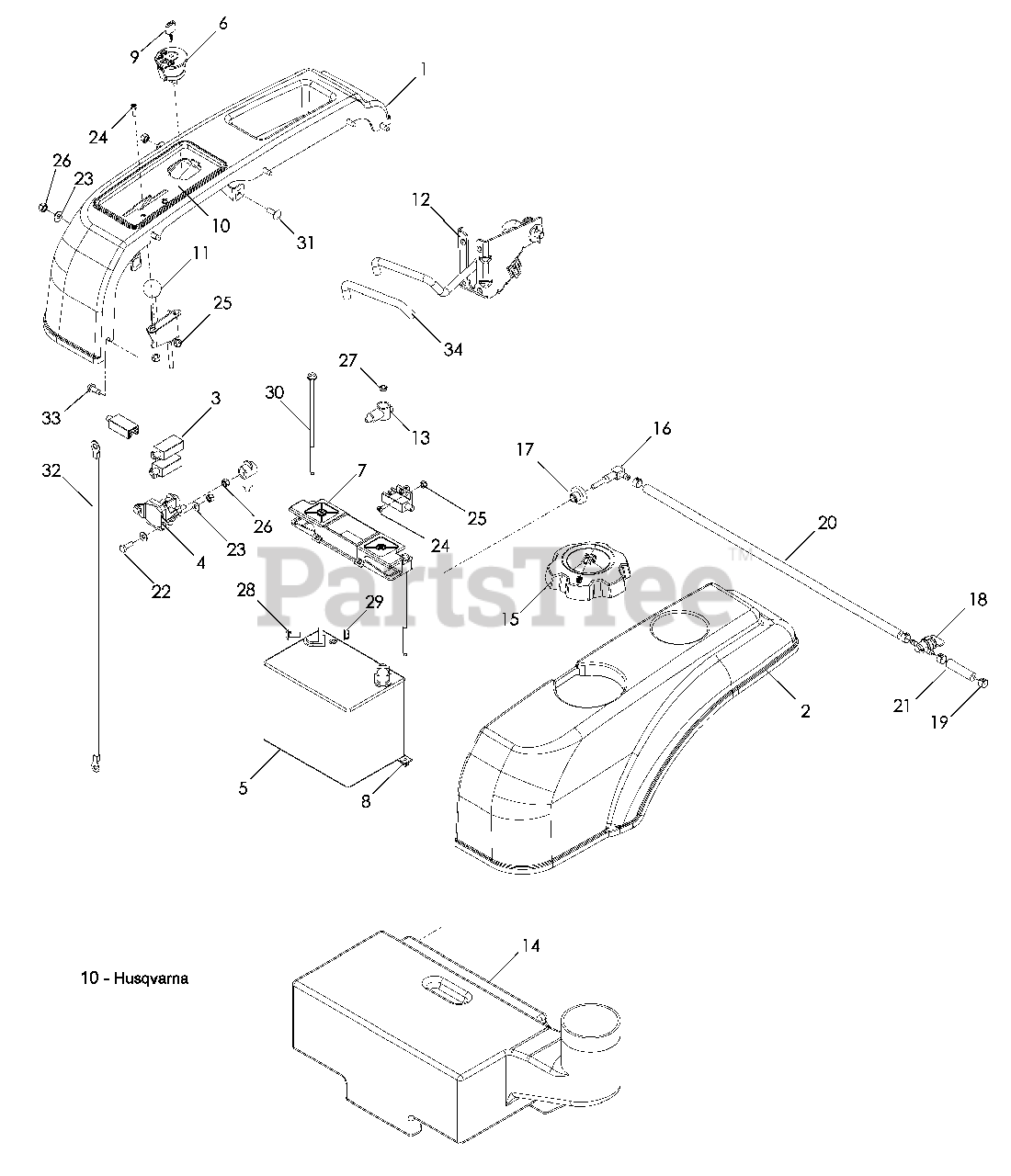

RZ 3019 (966042901) - Husqvarna 30" Zero-Turn Mower (2009-04) Ignition Parts Diagram

30" Zero-Turn Mower

Ignition Parts Diagram

  • Title

1

Husqvarna 525594701

FENDER, RH

$20.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525594702

FENDER, LH

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539101080

SWITCH

$7.49

$

In Stock, Qty 20+

0

4

Husqvarna 539101714

SOLENOID

$26.99

$

In Stock, Qty 20+

0

5

Husqvarna 539102436

BATTERY
(Superseded to 579411601)

$

$

Not available

6

Husqvarna 539107541

SWITCH, IGNITION
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

7

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, Qty 5

0

8

Husqvarna 539107629

NUT ¼ PUSH NYLON

$4.99

$

In Stock, Qty 7

0

9

Husqvarna 539107544

KEY, IGNITION
(Superseded to 532140401)

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 525598602

PANEL, CONTROLS

$

$

Currently unavailable

11

Husqvarna 522730101

CABLE, THROTTLE

$30.99

$

In Stock, only 1 left!

0

12

Husqvarna 525829302

CLUTCH ASSM w/ CABLE

$

$

Not available

Husqvarna 532193235

CABLE, CLUTCH

$47.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539116400

TERMINAL COVER, SM

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539120195

TANK, FUEL
(Superseded to 574790702)

$85.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539130393

CAP, FUEL

$

$

Not available

16

Husqvarna 539124804

ELBOW w/ FILTER

$

$

Not available

17

Husqvarna 539126217

FITTING, TANK

$

$

Not available

18

Husqvarna 539119272

VALVE, FUEL

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539912222

CLAMP, HOSE

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 539115743

HOSE ¼ x 21
(Superseded to 539115707)

$8.99

$

In Stock, only 2 left!

0

21

Husqvarna 539121486

HOSE, ¼ x 2

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990580

HCS ¼-20 x ¾

$3.99

$

In Stock, only 4 left!

0

23

Husqvarna 539990055

WASHER ¼ FLAT SAE

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539976952

SCREW #10-24 x 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539976977

NUT #10-24 HEX NYLOC

$

$

Not available

26

Husqvarna 539976978

NUT ¼-20 HEX NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539108120

NUT ¼-20 HEX THIN NYLOC

$3.99

$

In Stock, only 2 left!

0

28

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 539107632

BOLT ¼ x 7½

$

$

Not available

31

Husqvarna 539990074

RHSNB ¼-20 x ¾ GR2
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

$

$

Not available

33

Husqvarna 539990362

SCREW ¼-20 x 5/8 SLF TAP

$4.99

$

In Stock, Qty 12

0

34

Husqvarna 525868801

GRIP, CLUTCH
(Superseded to 525868802)

$3.99

$

Usually ships in 3-10 days

0
